J-allure, Rough-in – Jacuzzi J-ALLURELuxury Bathing and Entertainment System User Manual
Page 7
J-Allure
Rough-in Reference
5

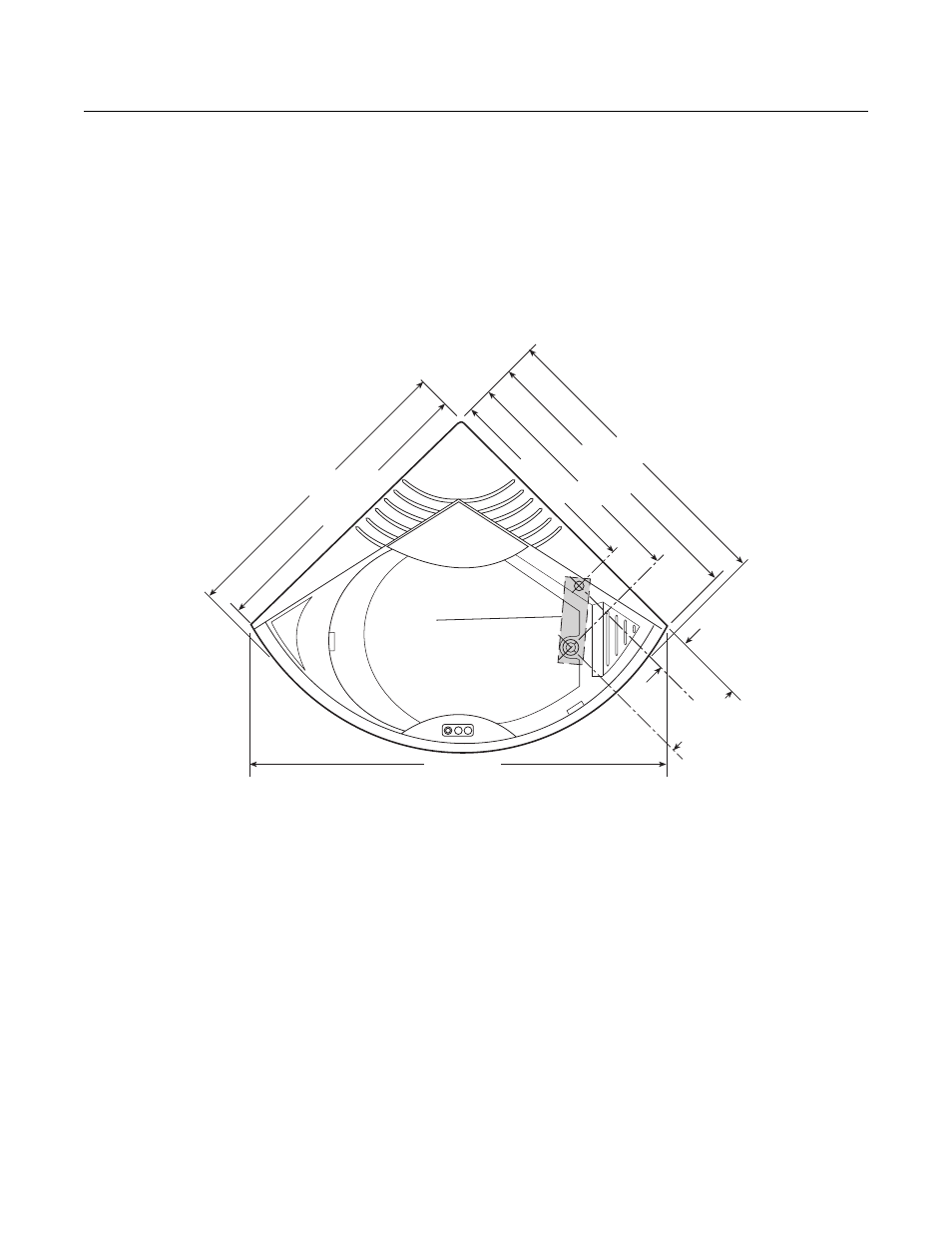

Rough-in
The installation requires three cutouts in the walls. Two cutouts allow room for the speakers. The third cutout is
necessary to route water supply piping to the center panel, and to route hoses for the steam generators to the bath.
The location of a 230VAC power outlet is indicated on the wall cutouts illustration.
51-3/16"
51-3/16"
72-7/16"
13-3/4"
54"
40"
15" x 5"
DRAIN/OVERFLOW
CUTOUT IN FLOOR
35-3/8"
4-3/8"
54"
