POWER 5500 5-Channel Amplifier
5
Speaker Wiring

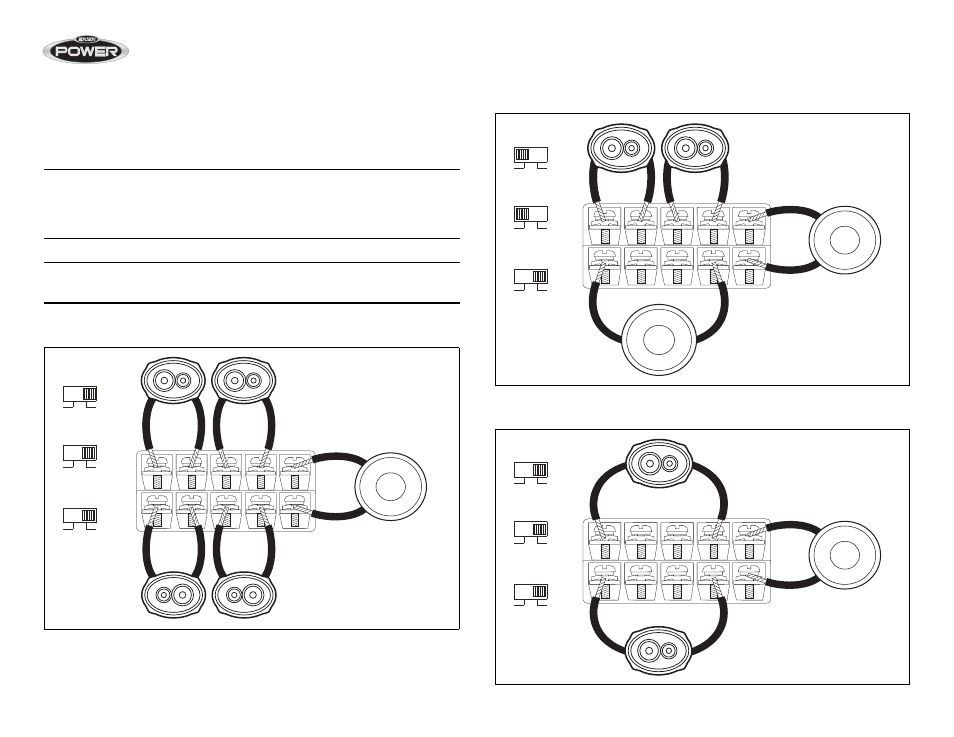

The Speaker Wiring diagrams illustrate options for connecting four speakers
and one subwoofer or two speakers and two subwoofers, or two speakers and
one subwoofer. Observe the proper speaker polarity.
NOTE: Power amplifiers can drive speakers with a nominal impedance
range of 2~ 4-ohms. For maximum power, configure your speakers for a
nominal 2-ohm load. Bridged amplifier channels can only drive 4 ohm
minimum impedance speakers.
NOTE: Do not overlook the use of the proper gauge speaker wire. The
Power series of amplifiers require a minimum of 12-gauge wire.
Four Speakers and Subwoofer
Two Speakers and Two Subwoofers
Two Speakers and Subwoofer
4 ohm nominal
2 ohm minimum
4 ohm nominal
2 ohm minimum
+ CH1 - + CH2 - CH5 -
+ CH3 - + CH4 -
Subwoofer
4 ohm nominal
2 ohm minimum
+ CH5
CH 3/4
MODE
CH 1/2
FULL
4CH
HPF
5CH
FULL HPF
4 ohm nominal
2 ohm minimum
+ CH1 - + CH2 - CH5 -
+ CH3 - + CH4 - + CH5
CH 3/4
MODE
CH 1/2
FULL
FULL
4CH
HPF
HPF
5CH
Subwoofer
4 ohm nominal
2 ohm minimum
Subwoofer
4 ohm nominal
4 ohm nominal
+ CH1 - + CH2 - CH5 -
+ CH3 - + CH4 - + CH5
CH 3/4
MODE
CH 1/2
FULL
FULL
4CH
HPF
HPF
5CH
Subwoofer
4 ohm nominal
2 ohm minimum
4 ohm nominal
