2 Preparation
0

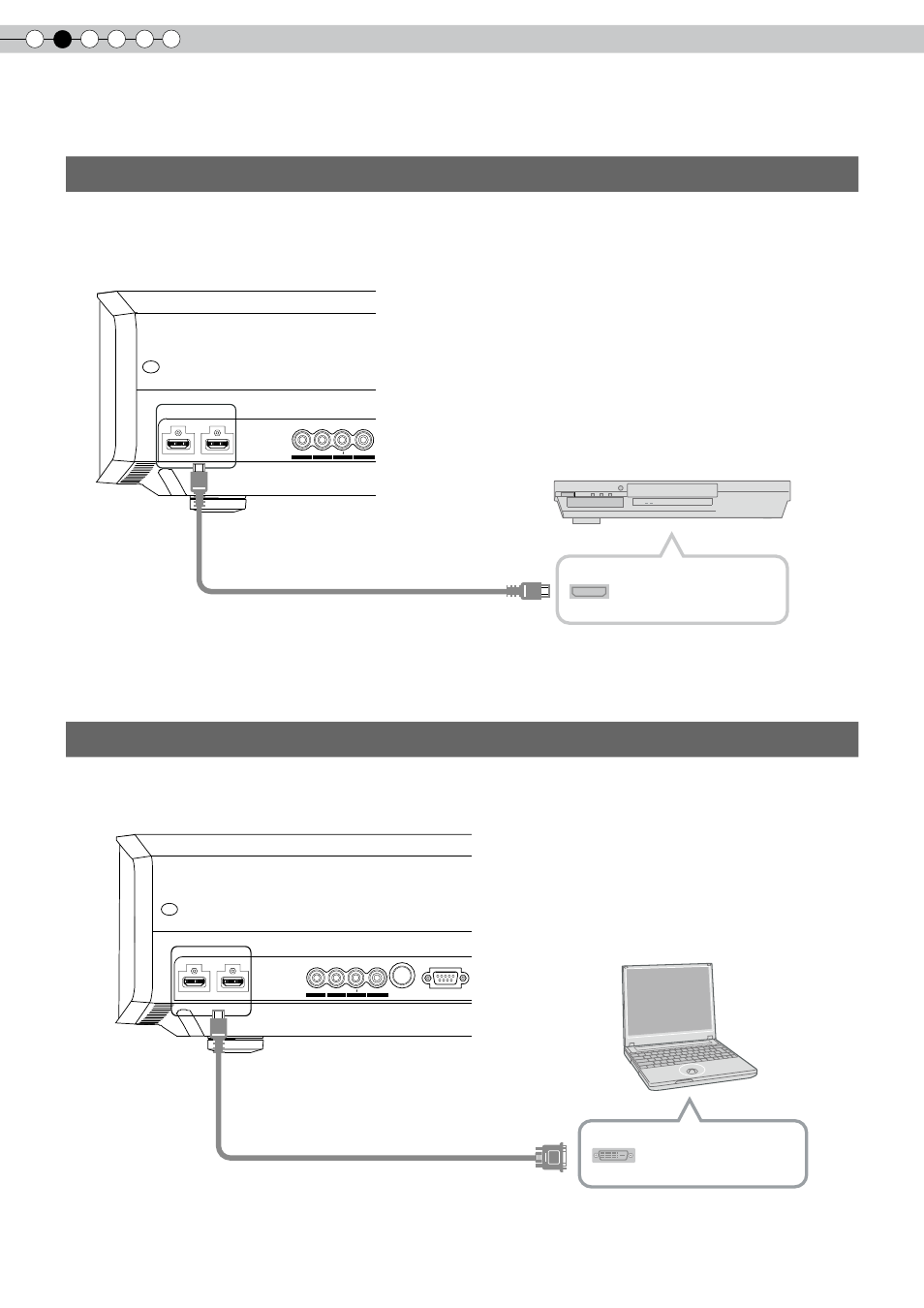

Connecting via HDMI Cable
Connecting via HDMI-DVI Conversion Cable
●
If noise is produced, take PCs (including notepads) away from this unit.
B R G SYNC
VIDEO
HDMI 1 HDMI 2
Y C B /P B C R /P R
This unit
HDMI cable (sold separately)
To HDMI 1 or HDMI input terminal
HDMI output terminal
DVD recorder
G B R SYNC S-VIDEO
VIDEO
RS-232C HDMI 1 HDMI 2
Y CB/PB CR/PR
This unit
To HDMI 1 or HDMI input terminal
HDMI-DVI conversion cable
(sold separately)
Notebook PC
DVI output terminal
Connecting(Continued)
