2 Preparation
18

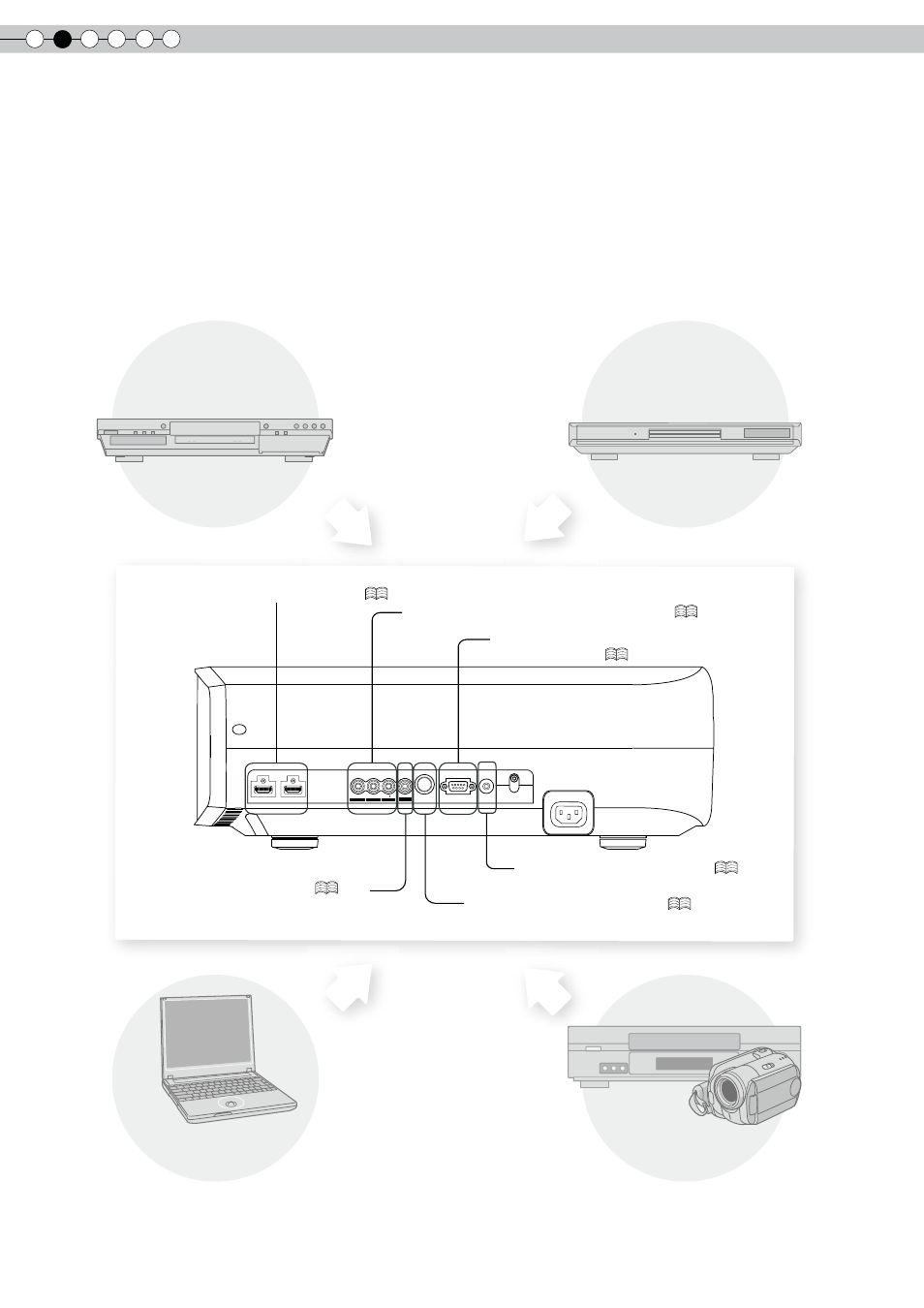

Selecting Connecting Devices
●
Do not turn on the power until connection is complete.
●
The connection procedures differ according to the device used. For details, refer to the instruction manual of the device to be
connected.
●
For audio output, connect the device to an amplifier.
●
The images may not be displayed depending on the devices and cables to be connected.
Use an HDMI compliant cable (sold separately) with the HDMI logo.
●
It may not be possible to connect to this unit depending on the dimension of the connector cover of the cables to be
connected.
G B R SYNC S-VIDEO VIDEO RS-232C TRIGGER HDMI 1 HDMI 2 Y CB/PB CR/PR
To connect via HDMI terminal ( P20)
To connect RS-C terminal
(external control) ( P52)
To connect via component video terminals ( P19)
To connect via video terminal ( P19)
To connect via S-video terminal ( P19)
DVD Recorder DVD Player
Notebook PC VCR and camcorder
To connect via Trigger terminal ( P22)
