Page 4
4
TM-2100PN-K
PHASE
CHROMA BRIGHT CONTRAST
MENU
INPUT SELECT
VOLUME/SELECT
–
+
B
A
POWER
ON
OFF
Y/ C
VIDEO
VIDEO
1
3
2
4
6
8
5
7
9
11
12 13 14
10
TM-2100PN-K
PHASE CHROMA BRIGHT CONTRAST
MENU
INPUT SELECT
VOLUME/SELECT
–
+
B
A
POWER
ON
OFF
Y/ C
VIDEO
VIDEO
15

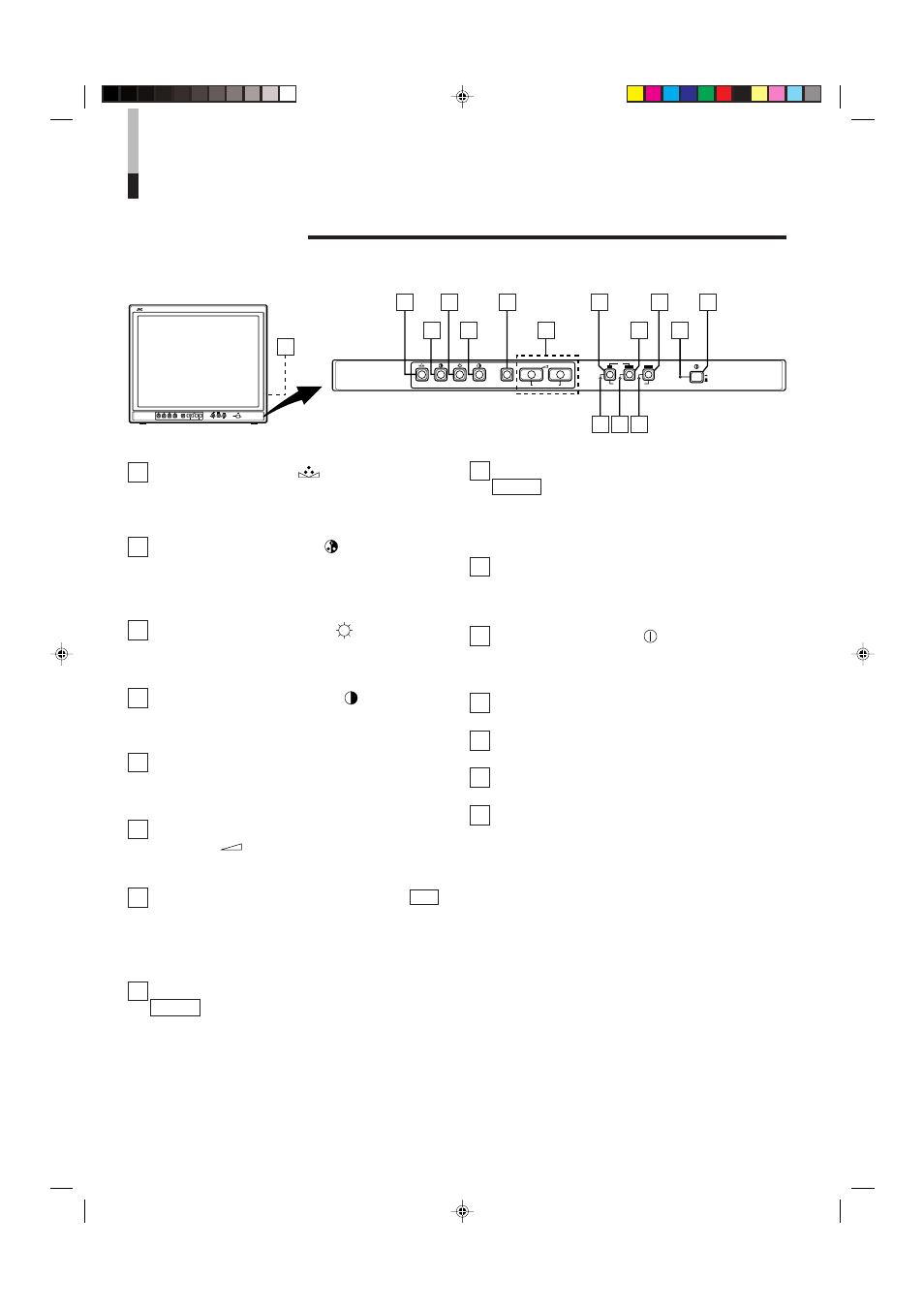

CONTROLS AND FEATURES
FRONT VIEW
1 Phase button [PHASE
]
Press this button to set the picture hue adjustment mode.
Adjust the value with the VOLUME/SELECT buttons. Also
used as a control button in the menu function mode.
2 Chroma button [CHROMA
]
Press this button to set the picture colour density adjust-
ment mode. Adjust the value with the VOLUME/SELECT
buttons. Also used as a control button in the menu
function mode.
3 Brightness button [BRIGHT
]
Press this button to adjust picture brightness. Adjust the
value with the VOLUME/SELECT buttons. Also used as a
control button in the menu function mode.
4 Contrast button [CONTRAST
]
Press this button to adjust picture contrast. Adjust the
value with the VOLUME/SELECT buttons. Also used as a
control button in the menu function mode.
5 Menu button [MENU]
Displays and exits the
