Resaw Guide

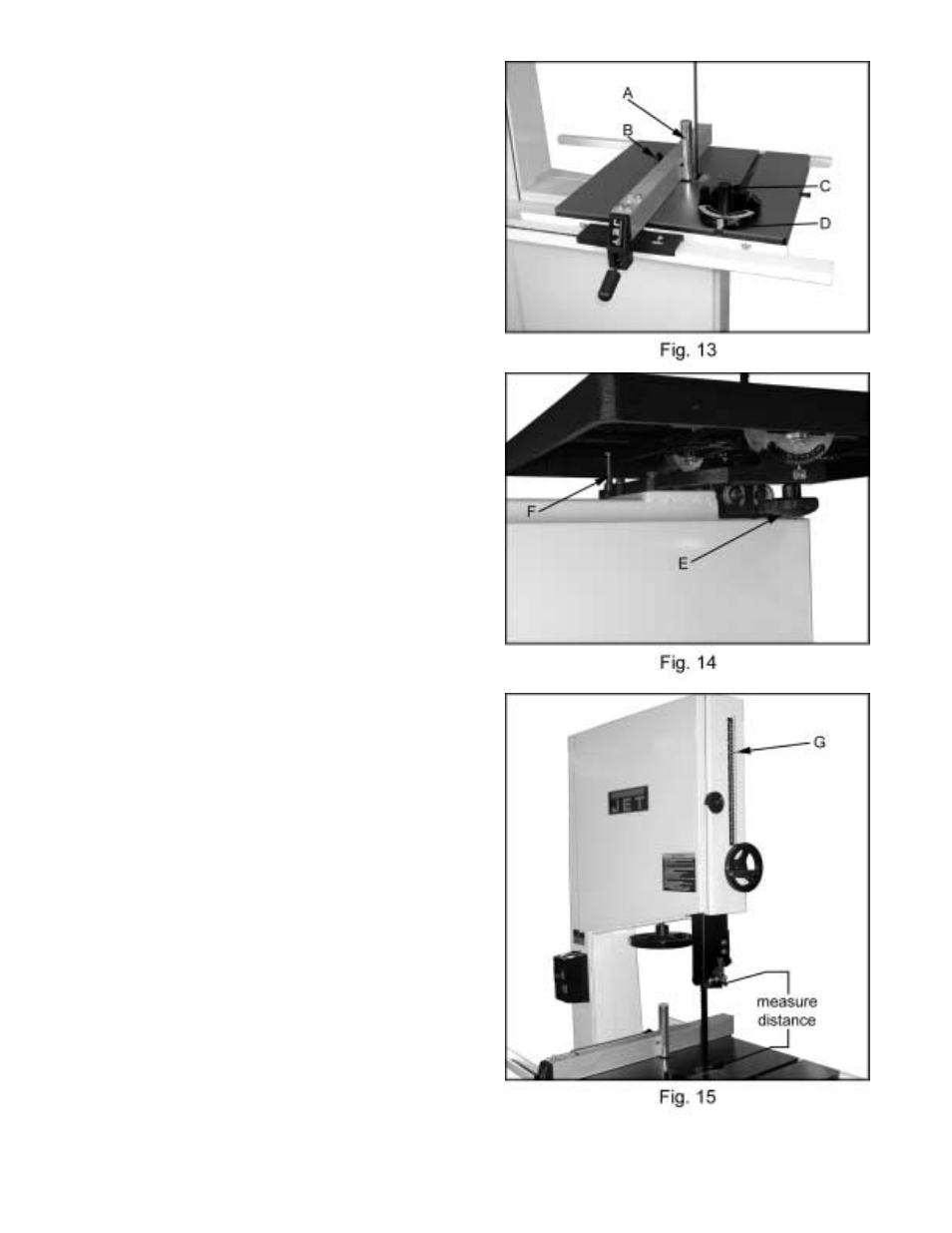

For resawing attach the post (A, Fig. 13) to
fence with the lock knob (B, Fig. 13). There is a
slotted hole in the fence that will accommodate
the resaw kit.
Position the post so that it is
centered with the front edge of the blade.
Miter Gauge
1. Place the miter gauge in the table slot.
2. With a square verify the miter gauge face is
square to the blade.
3. If the miter gauge is not square to the blade
loosen the lock knob (C, Fig. 13) and adjust
to the proper setting. Tighten the lock knob.
4. If the pointer is not at 90 degrees, loosen
the screw (D, Fig. 13) holding the pointer
and move the pointer to 90 degrees.
Tilting the Table
1. Disconnect the machine from the power
source, unplug.
2. Loosen the lock knobs (E, Fig. 14).
3. Tilt table up to 45 degrees to the right, or up
to 10 degrees to the left.
4. Tighten the lock knobs.
Note: Table stop bolt (F, Fig. 14) must be
removed to tilt table to the left.
Height Scale Adjustment
1. Disconnect the machine from the power
source, unplug.
2. The upper bearing guide should be set
about 1/8” above the material to be cut.
3. Measure from the table top to the bottom of
the bearing guides.
4. Set the indicator to this measurement on the
height scale. Grasp the end of the indicator
(G, Fig. 15) between your finger, and thumb.
Move the indicator into position.
