Jensen MSR4050G - Manual (Page 5)

MSR4050G
5
FUSE
White/Black (-)
White (+)
Gray/Black (-)
Gray (+)
Violet (+) Green (+)
Green/Black (-) Violet/Black (-)
Red (Right)
White (Left)
Rear RCA (grey)
Power Antenna (blue)
Ground (black)
Ignition (red)
Front Right Speaker
Rear Right Speaker
Front Left Speaker
Rear Left Speaker
Wiring Remote Connector (Black)
Sirius Connector (Grey)
CD Changer Connector (Black)
Antenna
Connector

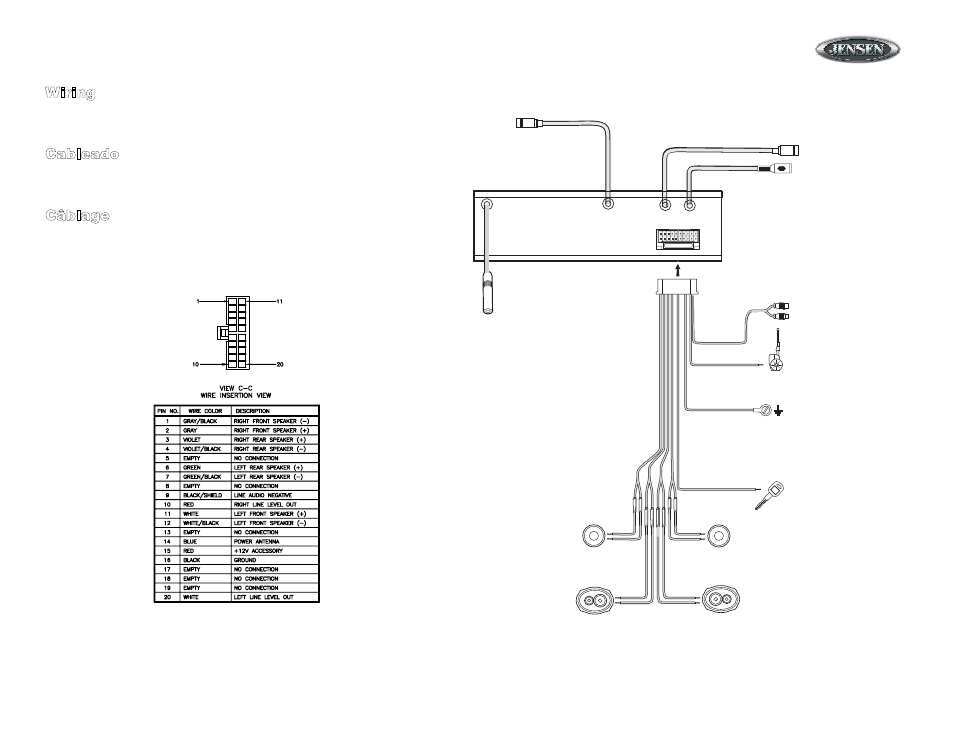

Wiring
The wiring diagram depicts all the wiring connections required for proper
operation of the unit.
Cableado
El diagrama de cableado describe todas las conexiones necesarias para el
funcionamiento de la unidad.
Câblage
Le schéma du câblage dépeint tous les branchements de câble exigés pour l'opération
de l'appareil.
