11
English
Getting Started
Note:
When connecting a JVC TV:
• If you use the AV COMPU LINK
remote control system to
operate the TV, connect the
receiver to the Video Input 2
jack on the TV.
• If you do not use the AV
COMPU LINK remote control
system to operate the TV,
connect the receiver to the
Video Input 1 jack on the TV.
CAUTION:
If you connect a sound-enhancing
device such as a graphic equalizer
between the source components
and this receiver, the sound output
through this receiver may be
distorted.

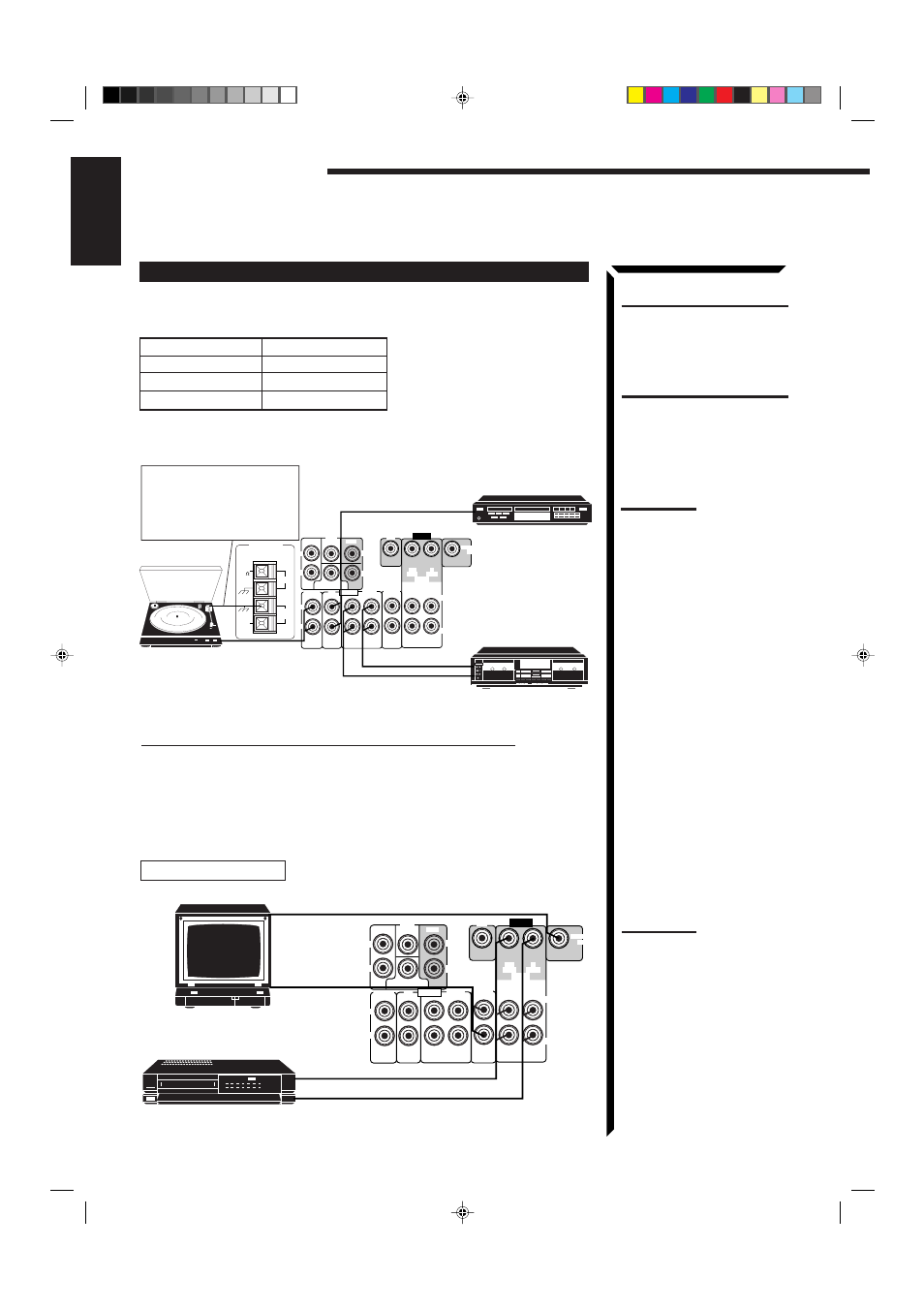

Connecting Audio/Video Components
You can connect the following components to the receiver using cables with RCA pin
plugs.
Audio Components Video Components
• Turntable • TV
• CD player • VCR
• Cassette deck • DVD player
TAPE PHONO CD
OUT
(REC)
IN
(PLAY)
VCR
OUT
(REC)
IN
(PLAY)
OUT
(REC)
IN
(PLAY)
MONITOR
OUT
L
R
TV
SOUND
DVD
LEFT
RIGHT
VIDEO
LEFT
RIGHT
DVD
FRONT CENTER
SUBWOOFER
L
R
REAR
AUDIO
VHS
To video input (see note to the right)
To audio/video output
To audio output
To audio/video input
VCR
TV
Video component connections
TV and VCR connection
If your audio components have a COMPU LINK-3 terminal
The COMPU LINK remote control system allows you to control other JVC audio
components from the receiver or vice versa.
For detailed information about the COMPU LINK-3 remote control system, see page
40.
To audio
output
Turntable
To audio output
CD player
Cassette deck
TAPE PHONO CD
OUT
(REC)
IN
(PLAY)
VCR
OUT
(REC)
IN
(PLAY)
OUT
(REC)
IN
(PLAY)
MONITOR
OUT
L
R
TV
SOUND
DVD
LEFT
RIGHT
VIDEO
LEFT
RIGHT
DVD
FRONT CENTER
SUBWOOFER
L
R
REAR
AUDIO
ANTENNA
AM
EXT
GND
FM
75
GND
AM
LOOP
FM
To audio input
To audio output
If a ground cable is provided
for your turntable, connect the
cable to the GND terminal of
the AM LOOP terminals on the
rear panel.
Audio component connections
Note:
Any turntables incorporating a
small-output cartridge such as an
MC (moving-coil type) must be
connected to the receiver through
a commercial head amplifier or
step-up transformer. Direct
connection may result in
unsufficient volume.
