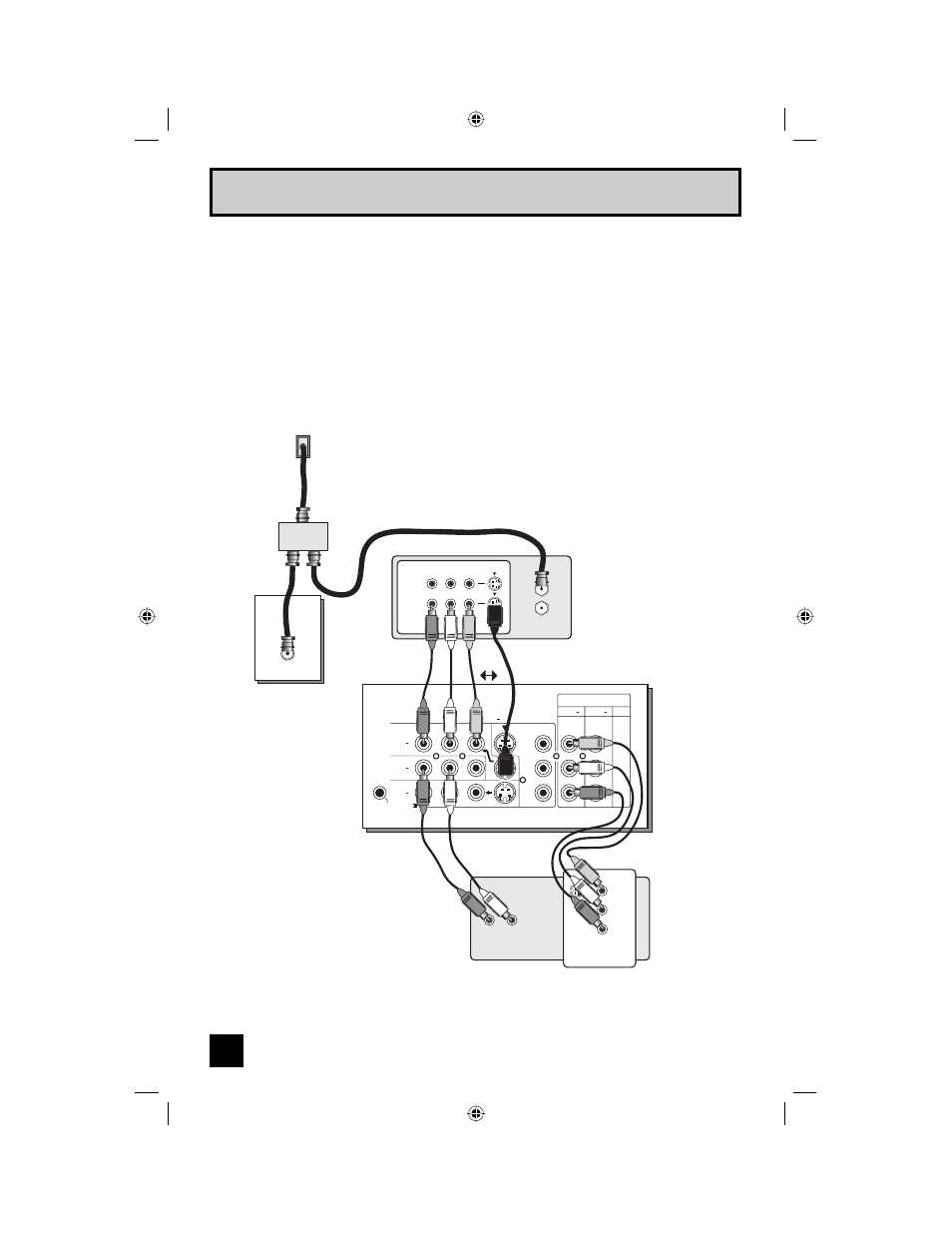

Quick Setup Connections
Notes:
• Green, blue and red are the most common colors for DVD cables. Some models may vary
colors. Please consult the user’s manual for your DVD player for more information.
• Be careful not to confuse the red DVD cable with the red audio cable. It is best to complete
one set of connections (DVD or audio output) before starting the other to avoid accidentally
switching the cables.
• You may also connect the DVD player to Input 1.
Y
Pb
Pr
COMPONENT VIDEO
AUDIO
R L
VIDEO ATSC OUTPUT
S VIDEO
INPUT 2 INPUT 1
INPUT 3
INPUT 2
INPUT 1
AV COMPULINK
OVER
OVER
VIDEO
L
R
AUDIO
IN
OUT
R L V
IN
OUT
75 Ω
(VHF / UHF)
DVD Player (Optional)
Y
P
B
P
R
OUT
AUDIO OUT
R L
Green
Blue
Red
IN
OUT OUT
VCR
Two-Way
Splitter
Cable or Antenna Output
TV Rear Panel
Coaxial Cable
OR
Diagram #3
