22 Specifications
(cont.)
100
VESA mounting holes
(Size: 4-M4, depth: 10 mm)
100
117
* at the higher position
** at the lower position

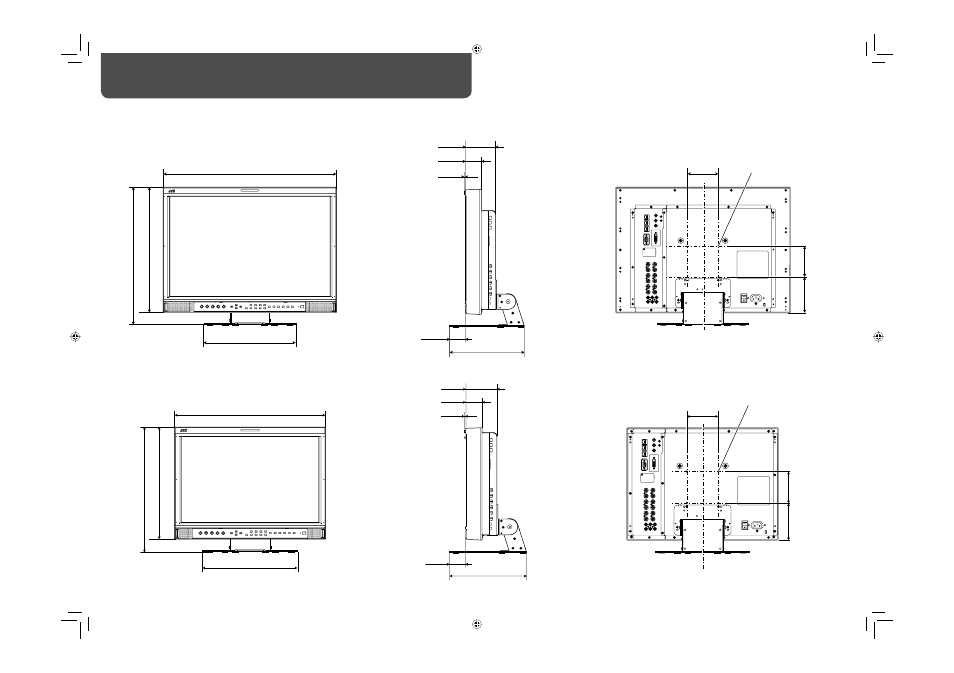

7 Dimensions
Unit: mm (inch)
DT-V24L3DY
477 (18 7/8)
354 (14)
394.6 (15 5/8)*/359.6 (14 1/4)**
51 (2 1/8)
99 (4)
52.7 (2 1/8)
1.5 (1/16)
243 (9 5/8)
564 (22 1/4)
99 (4)
51.9 (2 1/8)
100
243 (9 5/8)
300 (11 7/8)
VESA mounting holes
(Size: 4-M4, depth: 10 mm)
408 (16 1/8)
100
117 448.6 (17 3/4)*/413.6 (16 3/8)**
1.5 (1/16)
51 (2 1/8)
300 (11 7/8)
DT-V20L3DY
