555 Dawson Drive, Camarillo, CA 93012 Phone 805-482-6913 • Fax 805-482-7422
5
Rev I
9-12
No.1208-1351
A Division of Thiessen Products, INC
IIn ns st tr ru uc ct tiio on n S Sh he ee et t F Fo or r B Bo ox x 1 1 1 12 20 0” ”,, 1 13 31 1” ”,, o or r 1 13 35 5” ”
E En ng giin ne e A As ss se em mb bl liie es s O Or r E En ng giin ne e R Ra ac ce e K Kiit ts s
Oil Filter Mount for Engine “A” 99-06 FL, 99-05 FXD
• Remove from package and inspect for debris and imperfections.
• Verify the package includes three (3) bolts with washers and one (1) locking flange.
• Check that there are two o-rings present.
Tools necessary for box 1 installation: See Fig.4
❏ 3/8” drive torque wrench 5-75 ft/lbs ❏ 3/8” drive torque wrench 40-200 In/lbs
❏ 3/8” drive ratchet ❏ 7/8” deep socket
❏ 1/2” 12 point socket ❏ 7/16” socket
❏ 6” caliper ❏ “A” TC Engine Stand, JIMS ® No.1022
❏ “B” TC Engine Stand, JIMS ® No.902 ❏ Small brass punch, JIMS ® No.1081
❏ Small brass hammer, JIMS ® No.1080 ❏ 20W - 50 clean H-D ® engine oil
Recommended Tools & Supplies
❏ A small tooth brush
❏ Several lint free cloths
❏ A flashlight
❏ One quart 20W-50 H-D ® Motor Oil
The following are required to install the cylinder studs:
❏ The furnished six long and two short studs.
❏ The furnished Loctite compound 620.
❏ One (1) furnished cylinder dowel pin tool (1/4” x 1/2”)
❏ One (1) furnished Short Head bolt
❏ A solvent to degrease the threads of each stud. Use Loctite primer, ace
tone, denatured alcohol, rubbing alcohol or other non-residue solvent
for this purpose.
❏ Preminum grade Moly Lube with rust and corrosion inhibitors.
Follow all chemical manufacturer’s instructions and heed all warnings spe-
cific to each chemical used.

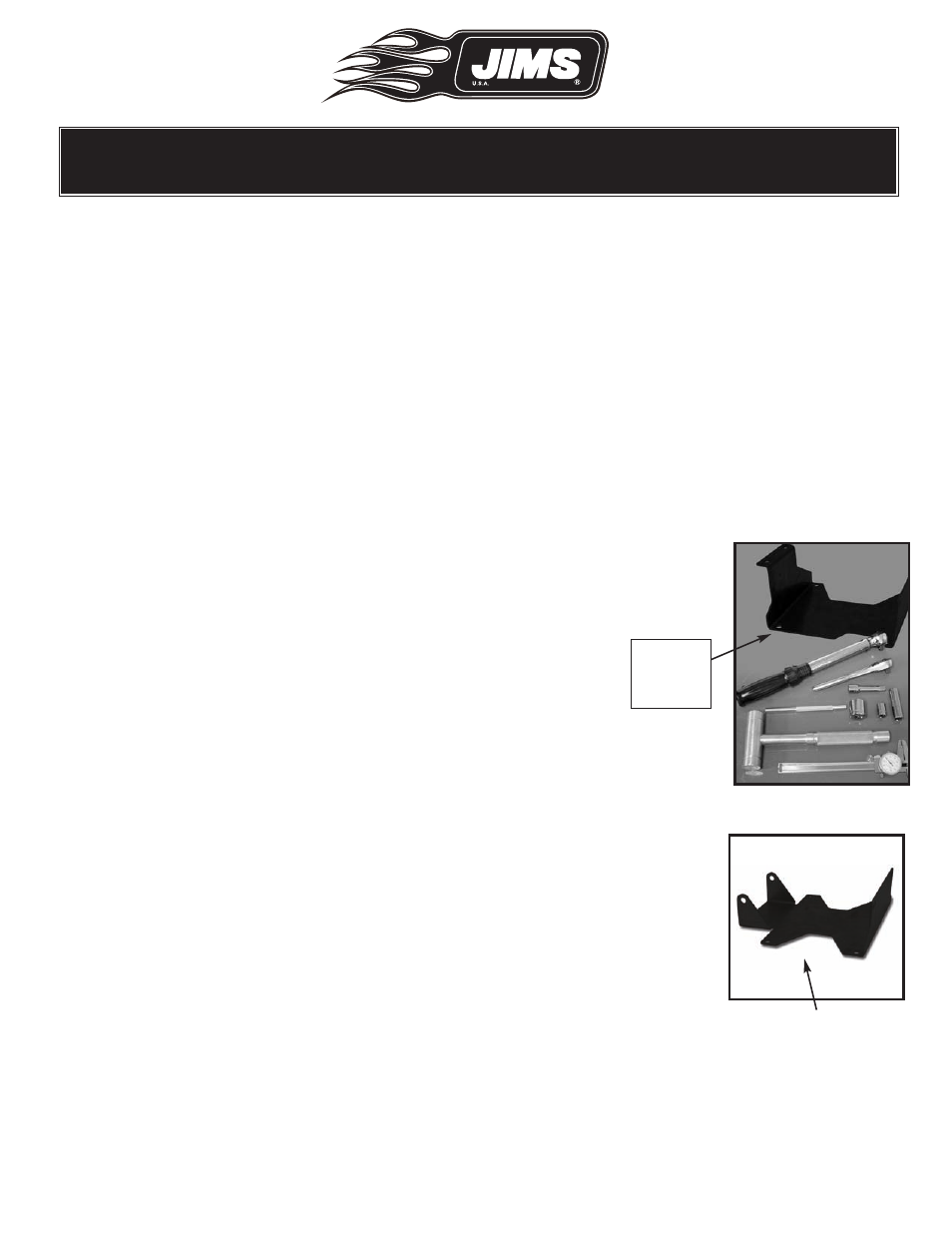

Fig.4 - Tools Required
Alpha Engine
stand shown
use on 99’-10’
JIMS No.1022
Beta Engine Stand
JIMS No.902 Use on all Betas
