Installation and Connection
1.
Connecting the coaxial cable ( A Pg. 17)
Lower the protection cover and connect the
connectors. Upon connecting, cover the
connectors using the protection cover.
2.
Connecting the AC 24 V/DC 12 V power
supply wires
Note:
● To mount a heater (sold separately) to this
unit, make sure to connect it to an AC 24 V
supply during use.
3.
Connect the alarm cable.
(TK-C215VP12U/E only)( A Pg. 18)
4.
Binding the AC 24 V/DC 12 V power
supply wires and alarm signal wires (TK-
C215VP12U/E only) with insulating tape
Make sure to bind the connecting portions of AC
24 V/DC 12 V power supply wires and alarm
signal wires (TK-C215VP12U/E only) with
insulating tape.
5.
Wrap insulation tape around cables.
6.
Storing cables
Upon connecting, push the connector into the
cable storage space of the camera unit.
Note:
● When mounting the camera to the electrical
box, push the connector into the electrical
box.
● While the camera unit is disconnected from
the base, be extremely careful not to drop the
camera unit. S
]

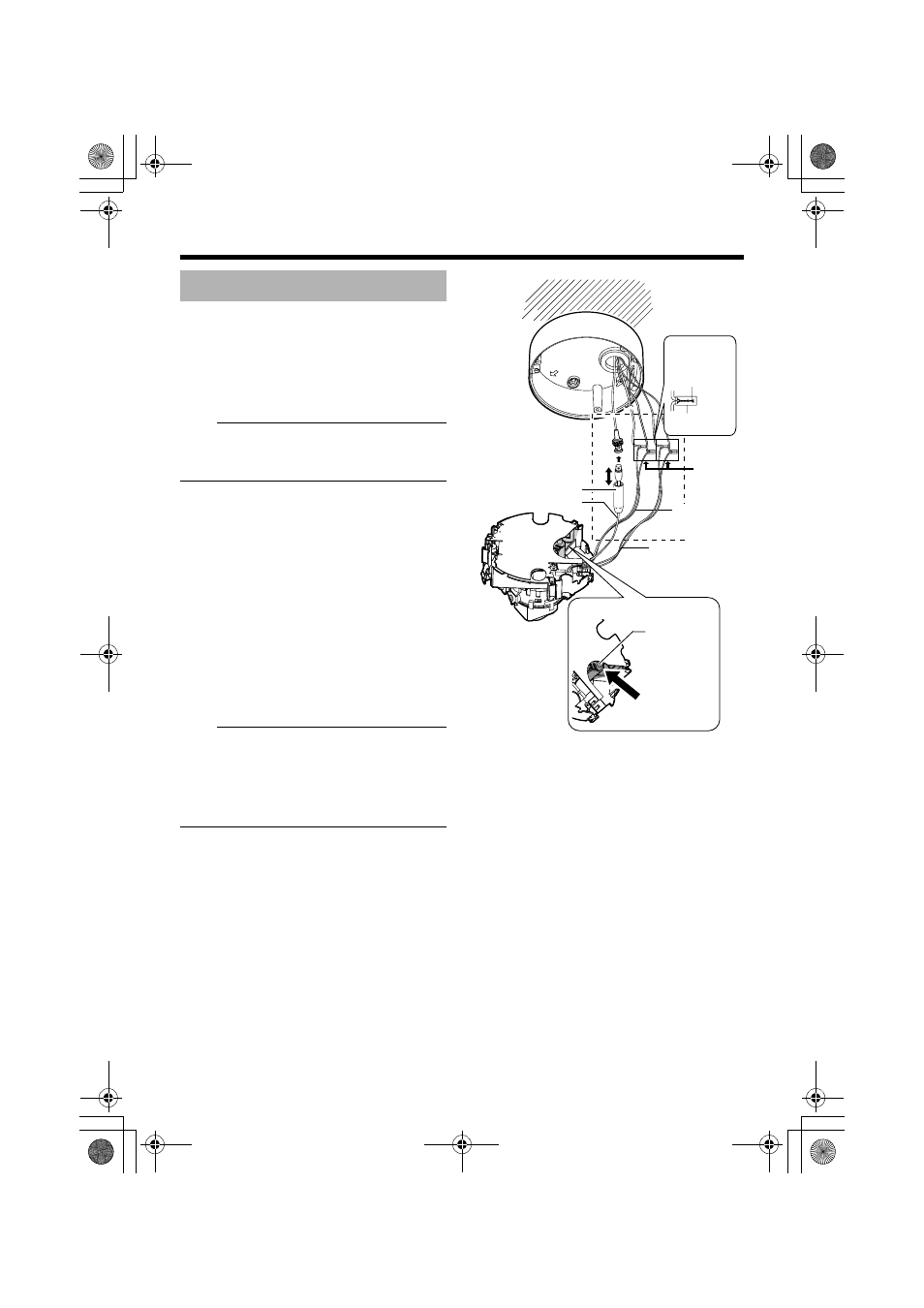

Cable Connection
1
3
2
4
Coaxial Cable
Protection Cover
Solder or Caulk
Insulating Tape
Bind
insulating
tape
AC 24 V/DC 12 V
Power Supply
Wire
Cable Storage
Space
*TK-C215VP12U/E is used in the above illustration
Alarm signal Wire
(TK-C215VP12 only)
