• You must connect the video cable from the DVD player to the BNC connector box in order for
it to work.
• Please consult the user’s manual for your DVD player for more information on how to hook it
up properly.
• Progressive DVD players (players with an output scan of 31.5 KHz) will not work properly with
this television. Set your DVD player’s output to “interlaced”, or non-progressive mode.

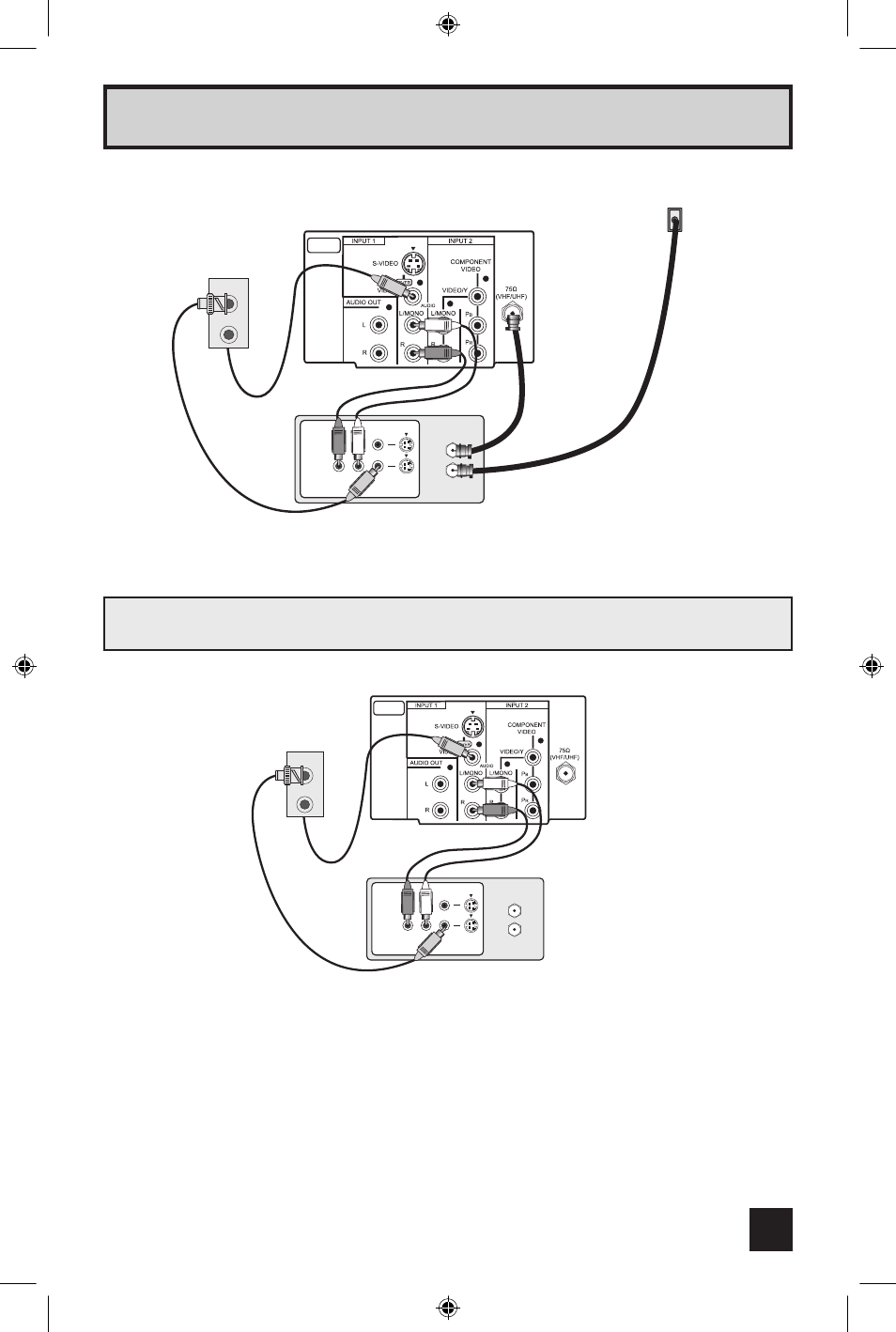

Diagram #3
13
Quick Setup Connections
����������������
������
�������������
��������������
���
���������������
��
���
���
��
�����������������
�������������
��
���
�������
��������������������������
�����������������������������
������������������������
����
���������������
Connecting to A DVD Player
You can connect a DVD player instead of a VCR as illustrated in Diagram #2 on page 12 or
Diagram #3 above.
�������������
�����������������
�������������
���
���������������
��
���
����������
��
��
���
�������
��������������������������
��������
����������������
�����
�����������������������
�
����
��������������
�
