2

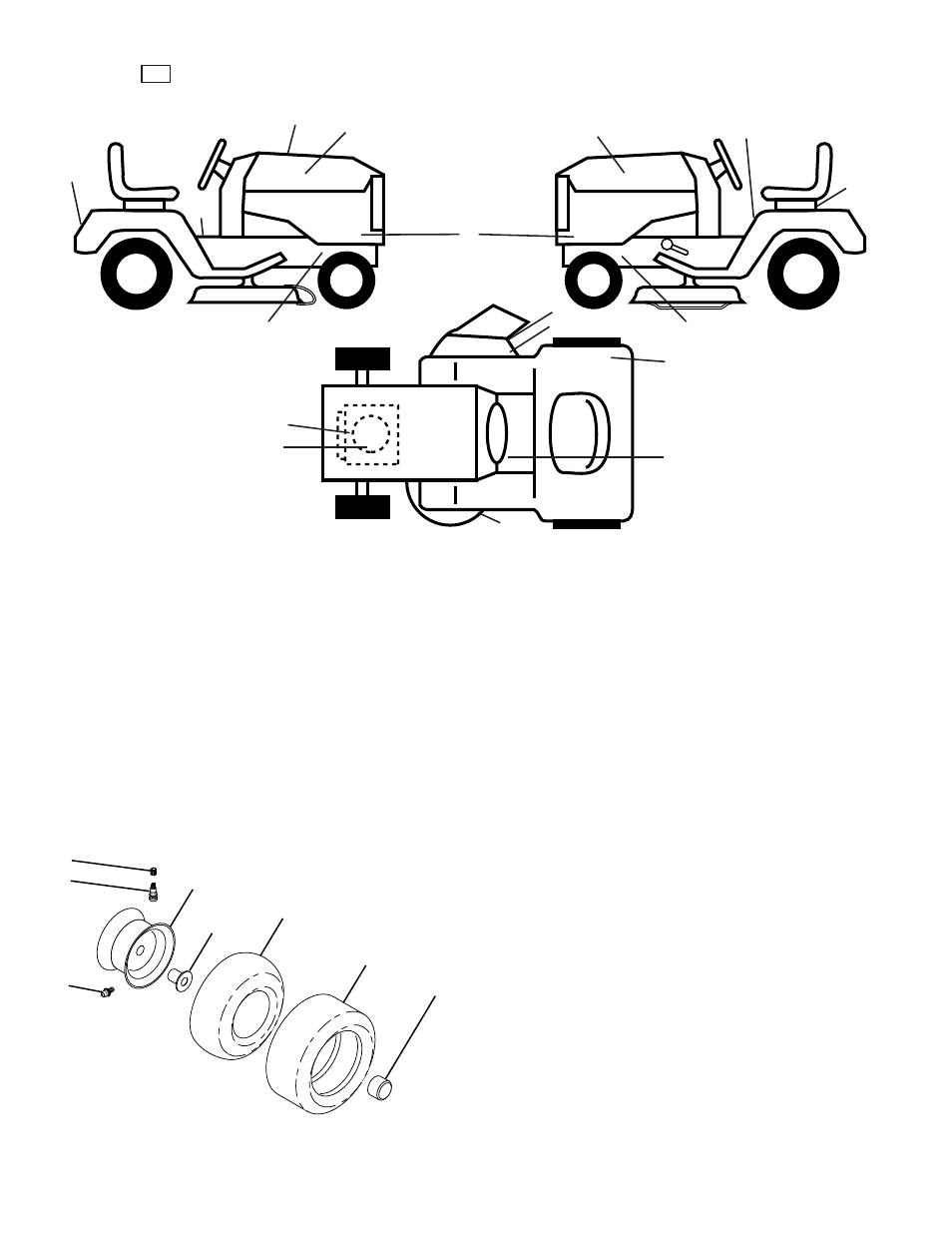

WHEELS & TIRES
KEY PART
NO. NO.
DESCRIPTION
1
532 19 68-41 Decal, Warning Engine Symbols
2
532 14 50-05 Decal, Bat Dan/Poi P/L Symbols
3
532 41 90-19 Decal, RPL.
4
532 19 63-57 Decal, Deflector Warning Symbols
5
532 42 26-39 Decal, Hood
6
532 42 29-42 Decal, SDPNL
7
532 14 08-37 Decal, Saddle Brake Parking
8
532 18 39-30 Decal, Cover/Belt GRD
9
532 40 03-89 Decal, Warning Sym. CE
10
532 15 97-36 Decal, Chassis Hot Muffler
11
532 18 21-66 Decal, Mower Cut finger Symbol
KEY PART
NO. NO.
DESCRIPTION
KEY PART
NO. NO.
DESCRIPTION
1
532 05 91-92 Cap Valve Tire
2
532 06 51-39 Stem Valve
3
532 12 41-57 Tire F Ts 15 x 6 - 6 Service
4
532 05 99-04 Tube Front (Service Item Only)
5
532 13 83-36 Rim Asm 6" Front Service
6
532 12 49-57 Fitting Grease (Front Wheel Only)
7
532 12 49-59 Bearing Flange (Front Wheel Only)
8
532 13 83-37 Rim Asm 8" Rear Service
9
532 12 39-69 Tire R Ts 18 x 8.5-8 C. Service
10
532 12 49-26 Tube Rear (Service Item Only)
11
532 17 50-39 Cap Axle Blk 1 50 x 1 00
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
6
2
1
5,8
4,10
3,9
11
7
3
10
9
15
12
11
19
10
7
2
12
532 18 04-32 Decal, 100 Dba
14
532 41 79-26 Decal, Eng. HP
15
532 15 97-37 Decal, Brake/Clutch
19
532 19 43-02 Decal, V-Belt Sch
- -
532 16 25-98 Decal, Drawbar Load Limit
- -
532 13 83-11 Decal, Lift Handle (Lift Handle)
- -
532 43 51-81 Manual Operator’s Euro
- -
532 43 51-82 Manual Operator’s Scan
- -
532 43 51-83 Manual Operator’s Ebloc
- -
532 43 51-84 Manual Operator’s Baltic
4
1
14
8
5
5
6
TRACTOR - - MODEL NO. LT2113 (96011026604), PRODUCT NO. 960 11 02-66
DECALS 27
