Jonsered LT2113 - Manual (Page 18)

17
15
20
16 17
18
20
20
15 20
4
5
6
2
3
1
6
5
4
7
12
11
31
32
31
32
19
19
13
55
13
lift-rh.1piece_27
8
KEY PART
NO. NO. DESCRIPTION
1 532 40 50-07 Plunger Asm. Lift Lever
2 532 19 80-70 Shaft Asm Lift
3 532 18 88-22 Pin Groove
4 812 00 00-02 E Ring #5133-62
5 819 21 16-21 Washer PLTD 21/32 x 1 x 21Ga
6 532 12 01-83 Bearing Nylon Blk 629 Id
7 532 10 94-13 Grip Handle Bicycle Matte Blk
8 532 12 23-65 Button Plunger Red
11 532 13 98-65 Link Lift LH
12 532 13 98-66 Link Lift RH
13 532 12 46-70 Retainer Spring
15 532 17 32-88 Link Front
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
16 873 35 08-00 Nut Jam Hex 1/2-13 unc
17 532 17 56-89 Trunnion
18 873 80 08-00 Nut Lock w/Wsh 1/2-13 unc
19 532 13 98-68 Arm Suspension Rear
20 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
31 532 16 98-65 Bearing Pvt Lift
32 873 54 06-00 Nut Crownlock 3/8-24
55 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock

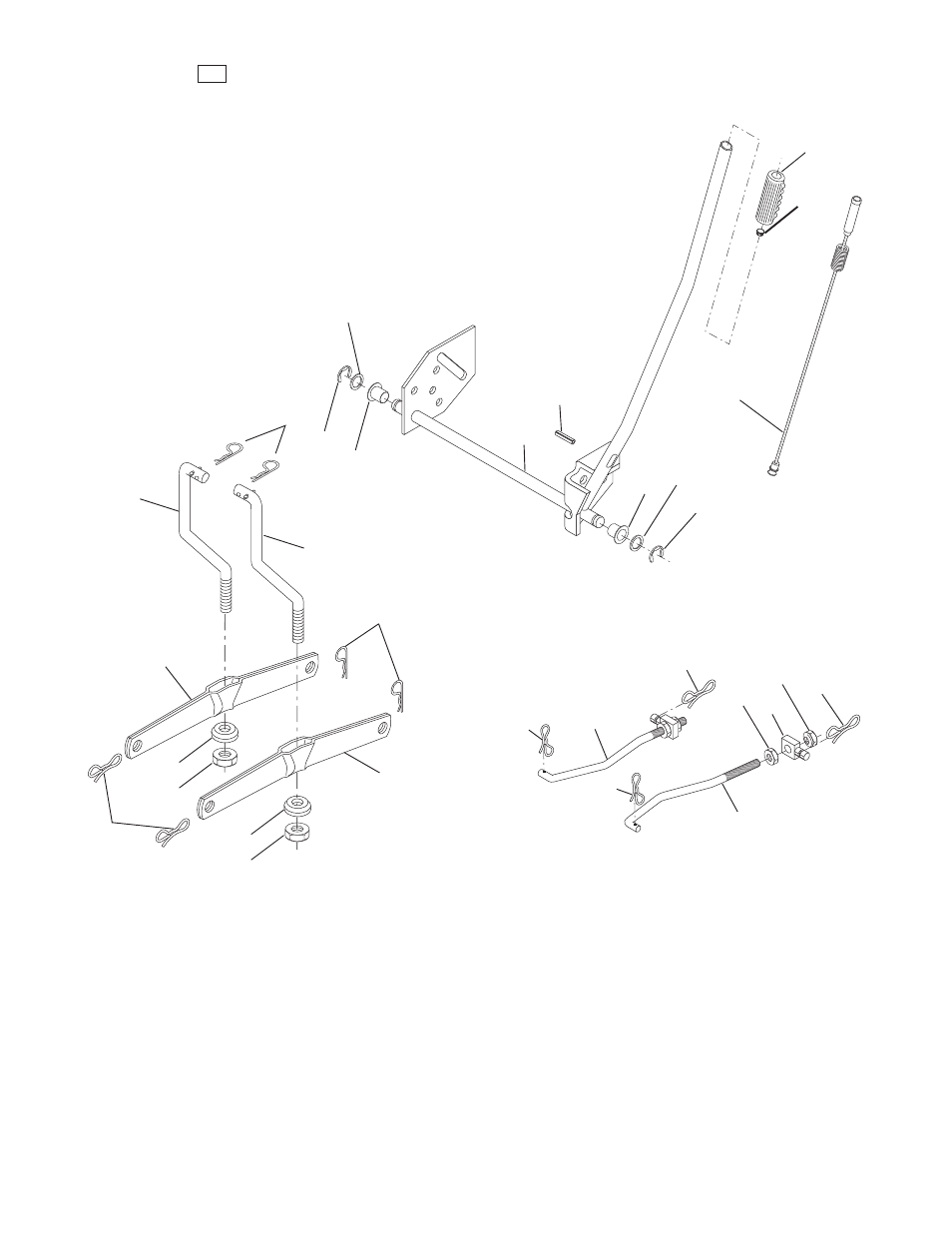

TRACTOR - - MODEL NO. LT2113 (96011026604), PRODUCT NO. 960 11 02-66
MOWER LIFT 45
45
