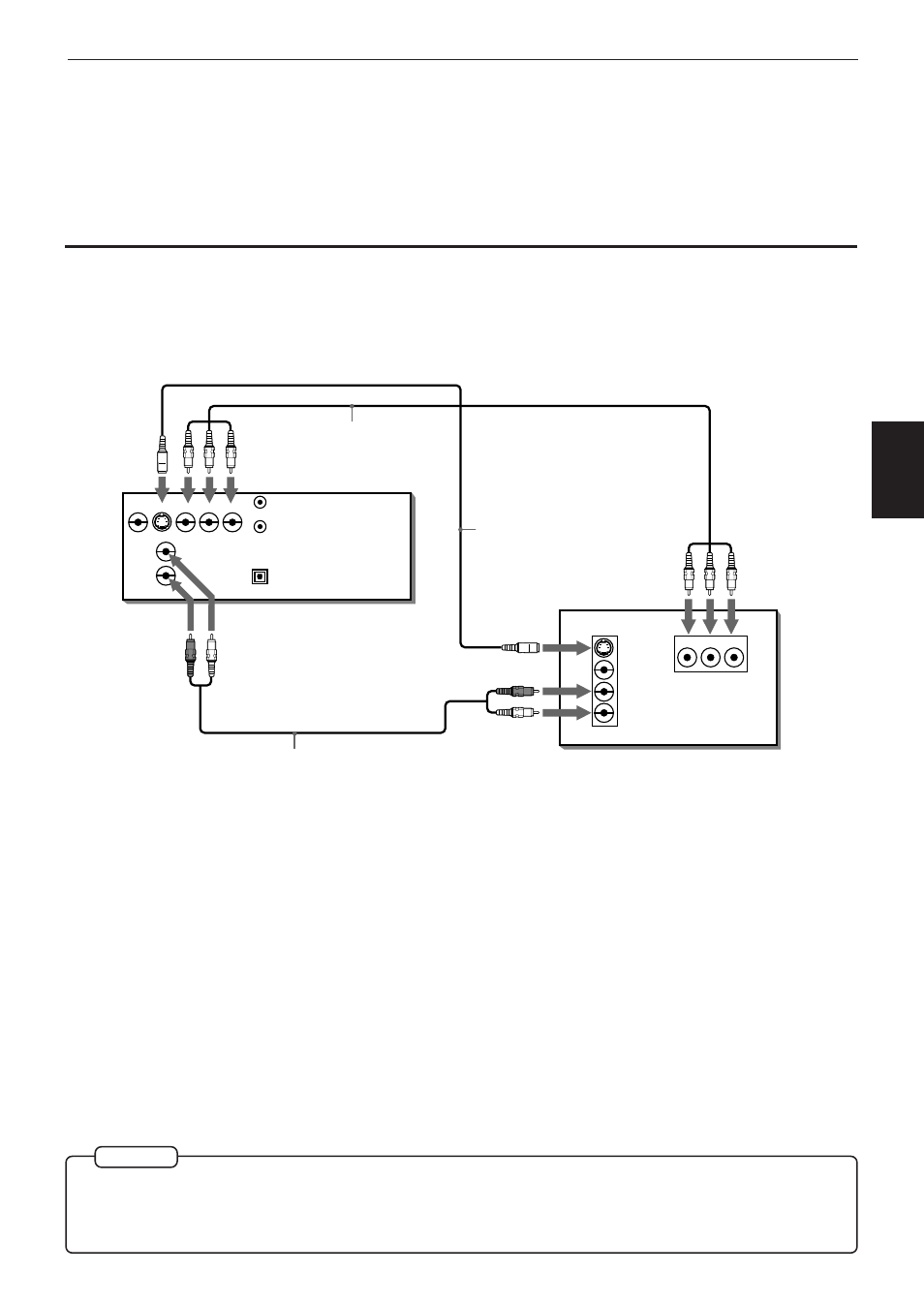

To connect to a TV, monitor, or projector with the component video input jacks
You can enjoy high picture quality by connecting the unit’s COMPONENT VIDEO OUT jacks to the COMPONENT
VIDEO IN jacks of your TV, monitor, or projector with the video cables.
• Connect “Y” to “Y,” “P B ” to ”P B ,” “P R ” to “P R .”
NOTES
● When the component video input jacks of the other source is of the BNC type, use an adapter to convert a pin
jack to a BNC jack (optional).
● If you do not connect the unit with the S-video cable, some functions of your TV may not work.
Audio cable
(not supplied)
Component video
cable (not supplied)
S-video cable
(supplied)
TV, monitor, or projector
The unit
White Red
Red
Green Blue
Red Green
Blue
Red
White
VIDEO
IN
IN
S-VIDEO
LEFT PCM/STREAM
OPTICAL
VIDEO S-VIDEO Y
RIGHT
AV COMPU LINK
VIDEO OUT
AUDIO OUT DIGITAL OUT
P B P R
Y P B P R
COMPONENT
AUDIO
RIGHT
LEFT
