4
XV-N510B/XV-N512S/GNT0055-001A/English
P
re
p
a
ra
ti
o
n
s
Connections
Before using the player, connect the player to a TV and/or
amplifier.
Before making connections
• Do not connect the AC power cord until all other
connections have been made.
• Connect VIDEO OUT of the player directly to the video
input of your TV. Connecting VIDEO OUT of the player to a
TV via a VCR may cause a monitor problem when playing
back a copy-protected disc. You may also have a monitor
problem when connecting the player to an integrated TV/
Video system.
NOTE
If your TV has an AV COMPU LINK terminal, you can use the AV
COMPU LINK function. See “AV COMPU LINK remote control
system” on page 39 for details.
Connecting to a TV
The following sections A to C describe TV connections where
only a TV is connected to the player so that you will hear audio
from the TV.

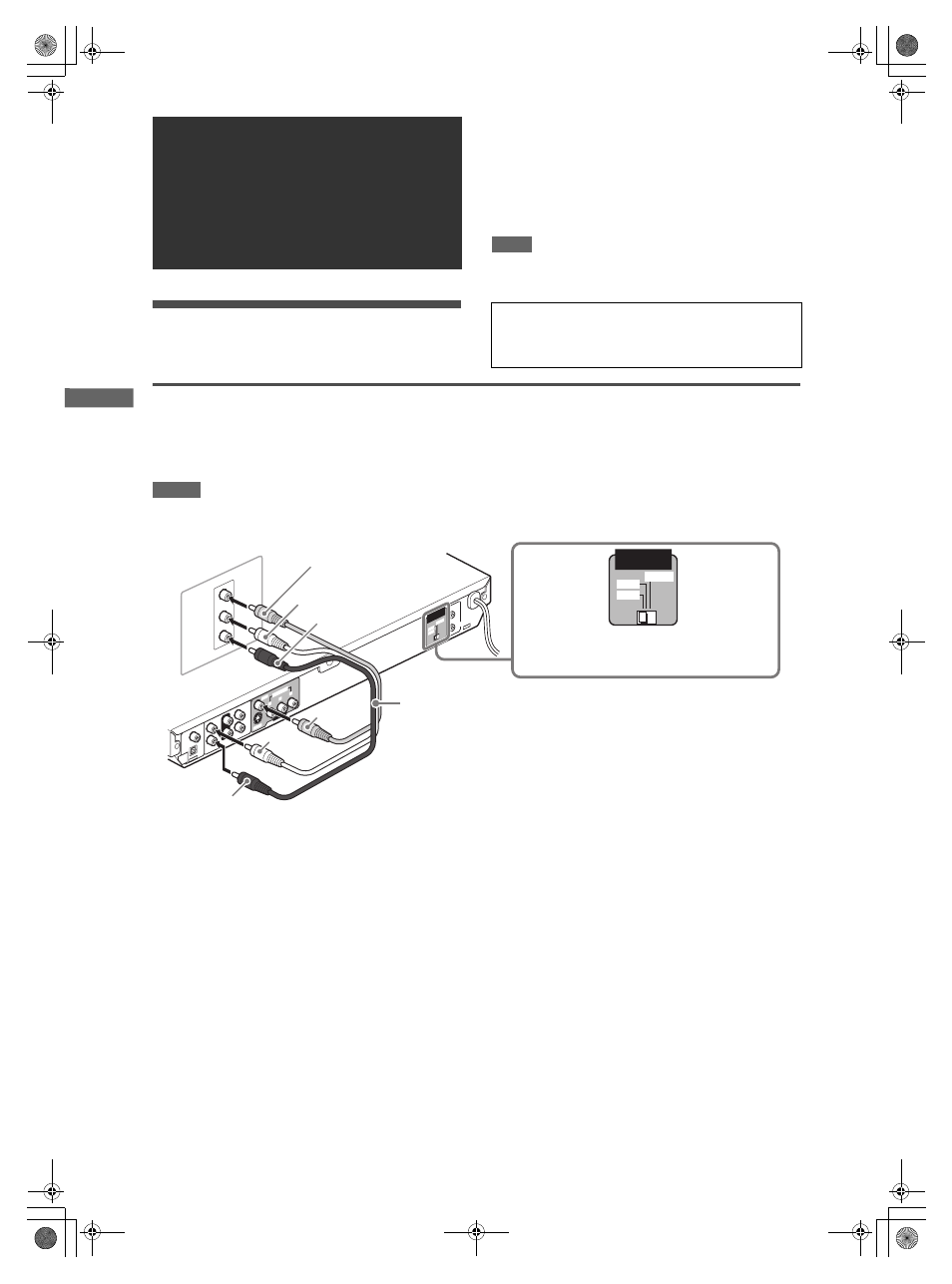

A Connecting to a conventional TV
NOTES
• Be sure to connect the red and white plugs of the audio cable to
the FRONT RIGHT/LEFT jacks on the rear of the player, as
shown in the illustration.
• If your TV has a monaural audio input instead of stereo, you
need to use an optional audio cable which converts stereo
audio output to monaural.
• Set [ANALOG OUT] in the [AUDIO] preference display to [2-CH
STEREO] (see page 34).
Preparations
• In the following description, “TV” may be substituted with
“monitor” or “projector.”
• Terminal names used for other components may be different
from those used in the following description.
RIGHT
LEFT
AUD
IO
VIDEO
IN
SUB -WO OFE R
CEN TER
RIG HT
FRO NT
SUR ROU ND
LEF T
COA XIA L
OPT ICA L
PCM /
STR EAM
DIGIT AL
OUT
AU DIO OUT
VID EO
S-V IDE O
Y
P B
P R
AV COMPU LINK
480 i 480 p
REM OTE
VIDEO OUT
VIDEO SIGNAL SELECT
OR
COMPONENT
480i
480p
REMOTE
VIDEO SIGNAL
SELECTOR
Yellow
White
Audio/video
cable (supplied)
White
Red
Yellow
TV
The player
Set the VIDEO SIGNAL SELECTOR to “480i.”
Red
