Setup
Continued on next page JS56696,0000505 ­19­01APR09­3/4
PC1
1844
—UN—23MAR09

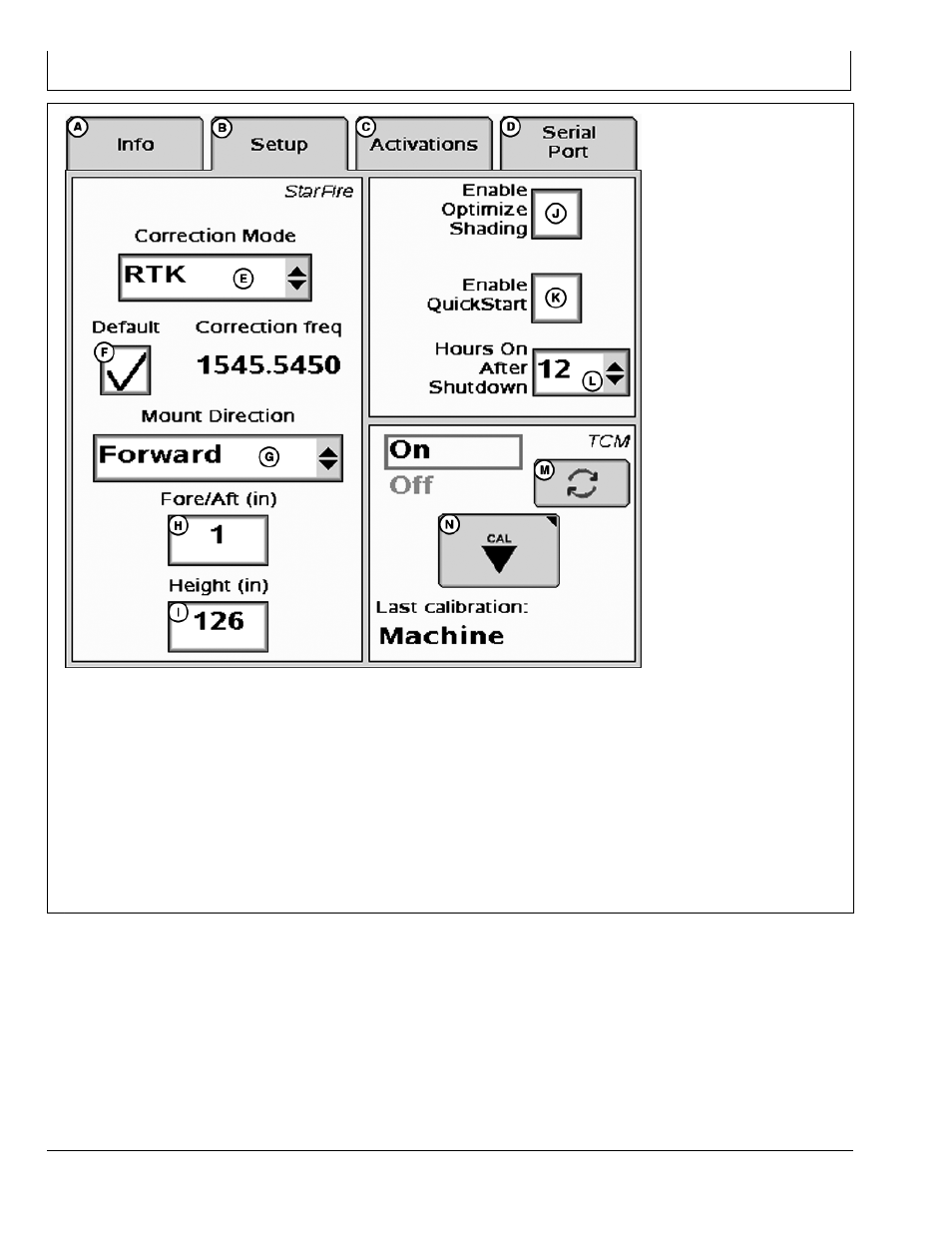

StarFire iTC Implement—Main
A—Info Tab
B—Setup Tab
C—Activations Tab
D—Serial Port Tab E—Correction Mode Drop­Down
Menu
F— Correction Default Check­Box
G—Mount Direction Drop­Down
Menu
H—Fore/Aft Input­Box
I— Height Input­Box
J— Enable Optimize Shading
Check­Box
K—Enable QuickStart Check­Box
L— Hours On After Shutdown
Drop­Down Menu
M—TCM On/Off Toggle Button
N—TCM Calibrate Button
Select Correction Mode to match the desired correction
mode. iGuide requires both receivers to have the same
RTK differential correction level (SF1 and SF2 are not
compatible with iGuide).
See APENDIX—VALID CONFIGURATION for more
information.
Select the correct mounting direction. The preferred
mounting direction for the implement is forward.
NOTE: Face receiver directly straight forward or backward.
