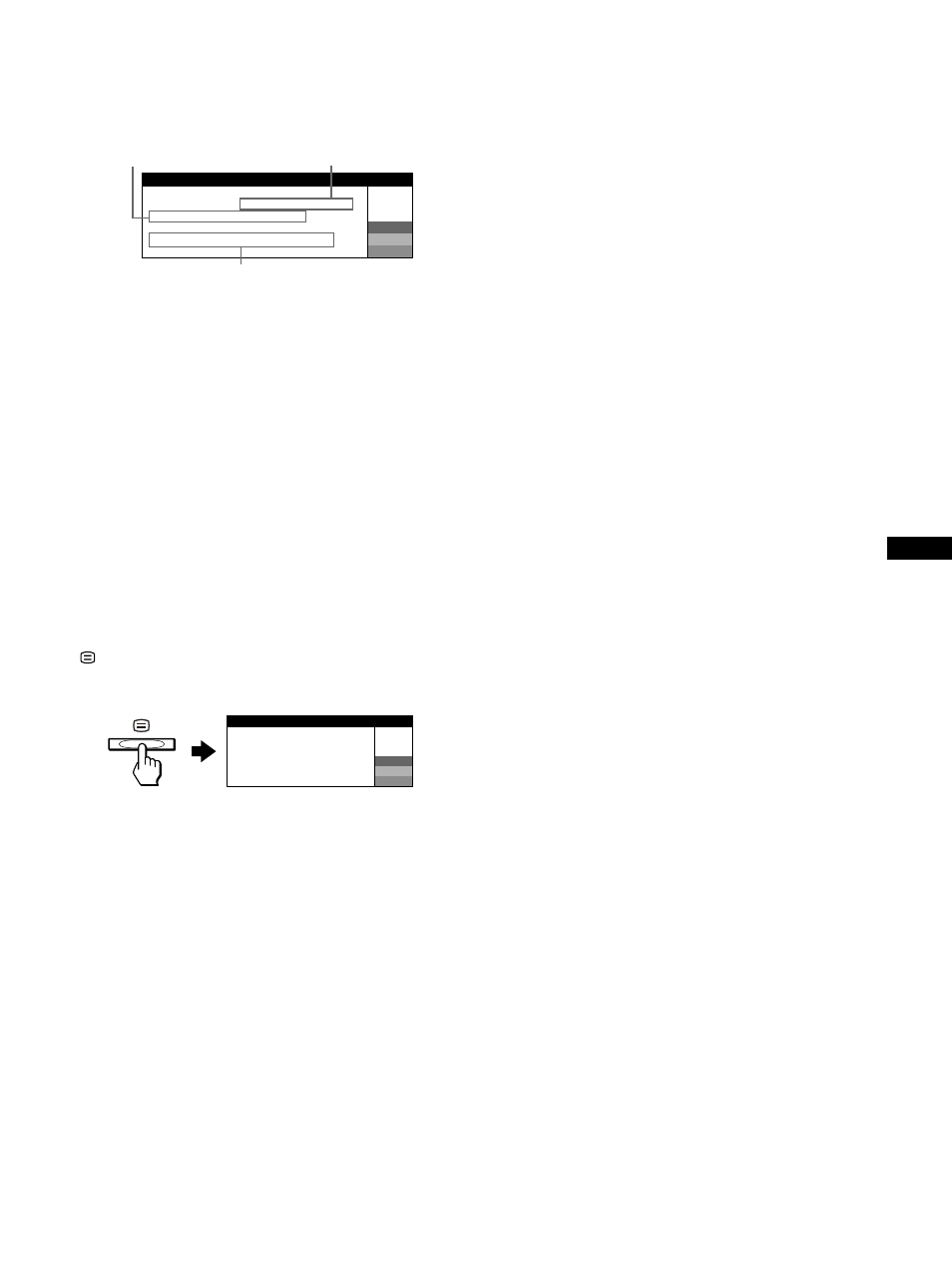

If OUT OF SCAN RANGE appears on line 1
This indicates that the input signal is not supported by the
monitor’s specifications.
For more information, see “Trouble symptoms and remedies” on
page 15.
Displaying this monitor’s name, serial number,
and date of manufacture
While the monitor is receiving a video signal, press and hold the
button for more than 5 seconds to display this monitor’s
information box.
If the problem persists, call your authorized technical support and
give the following information.
• Model name: IBM P97
• Serial number
• Name and specifications of your computer and graphics board
2 The frequencies of the current input signal
If the monitor recognizes the frequencies of the current input
signal, the horizontal and vertical frequencies are also
displayed.
3 The remedies
CHANGE SIGNAL TIMING appears on the screen. If you
are replacing an old monitor with this monitor, reconnect the
old monitor. Then adjust the computer’s graphics board so
that the horizontal frequency is between 30 – 107 kHz, and the
vertical frequency is between 48 – 170 Hz.
