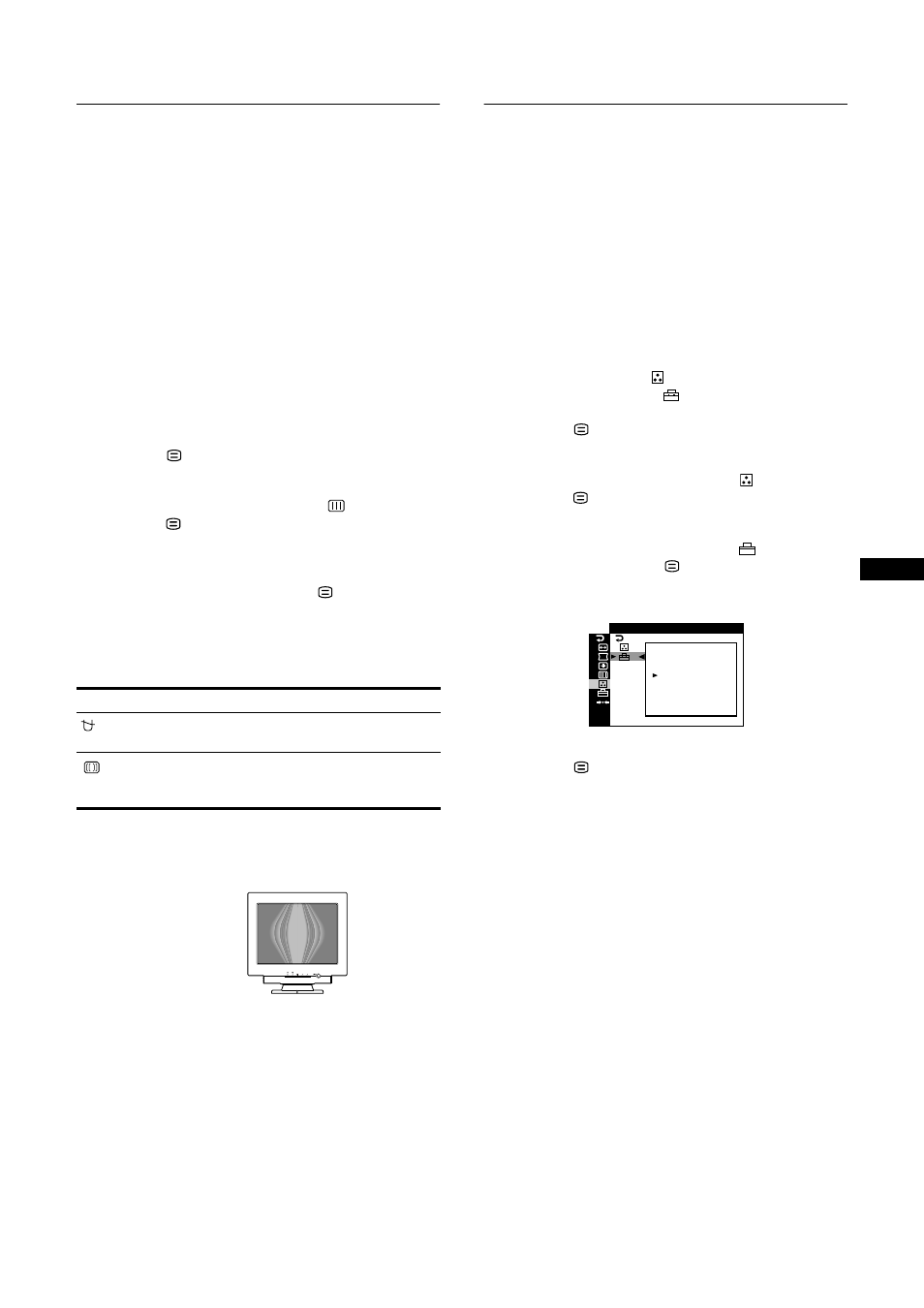

Adjusting the picture quality
(SCREEN)
The SCREEN settings allow you to degauss (demagnetize) the
monitor manually and adjust the picture quality by controlling the
moire.
• If the color is not uniform or the picture is fuzzy, degauss the
monitor (DEGAUSS).
• If elliptical or wavy patterns appear on the screen, cancel the
moire (CANCEL MOIRE).
The monitor is automatically demagnetized (degaussed) when the
power is turned on.
The screen is degaussed for about 2 seconds. If a second degauss
cycle is needed, allow a minimum interval of 20 minutes for the
best result.
The CANCEL MOIRE setting is stored in memory for the current
input signal.
1
Press the
button.
The menu appears on the screen.
2
Press the
m/M buttons to highlight
SCREEN and
press the
button.
The SCREEN menu appears on the screen.
3
Press the
m/M buttons to select the desired
adjustment item. Then press the
button.
The adjustment bar appears on the screen.
4
Press the
m/M or </, buttons to make the
adjustment.
*
Moire is a type of natural interference which produces soft, wavy lines
on your screen. It may appear due to interference between the pattern
of the picture on the screen and the phosphor pitch pattern of the
monitor.
Note
The picture may become fuzzy when the CANCEL MOIRE function is
activated.
Adjusting the color of the picture
(COLOR)
The COLOR settings allow you to adjust the picture’s color
temperature by changing the color level of the white color field.
Colors appear reddish if the temperature is low, and bluish if the
temperature is high. This adjustment is useful for matching the
monitor’s color to a printed picture’s colors.
x Select the COLOR mode
There are 4 types of adjustment modes, PRESET, VARIABLE,
EXPERT, and sRGB. The default setting is PRESET mode which
can be adjusted to 9300K, 6500K, or 5000K.
If you want to set another mode (other than PRESET), select the
desired mode in the COLOR (
) menu. Then adjust the selected
mode in each COLOR MODE (
) menu.
1
Press the
button.
The menu appears on the screen.
2
Press the
m/M buttons to highlight
COLOR and
press the
button.
The COLOR menu appears on the screen.
3
Press the
m/M buttons to highlight
(COLOR
MODE). Then press the
button.
4
Press the
m/M buttons to select the COLOR mode.
5
Press the
button three times to close the menu.
Select
To
DEGAUSS
degauss the monitor. To degauss the monitor
manually, select OK.
CANCEL
MOIRE
adjust the degree of moire cancellation until
the moire* is at a minimum
Example of moire
COLOR MODE
VARIABLE
EXPERT
s RGB
PRESET
COLOR
: PRESET
1 2 8 0 x 1 0 2 4 / 8 5 H z
