Diagram 3 – Impex DBR 90 User Manual
Page 7

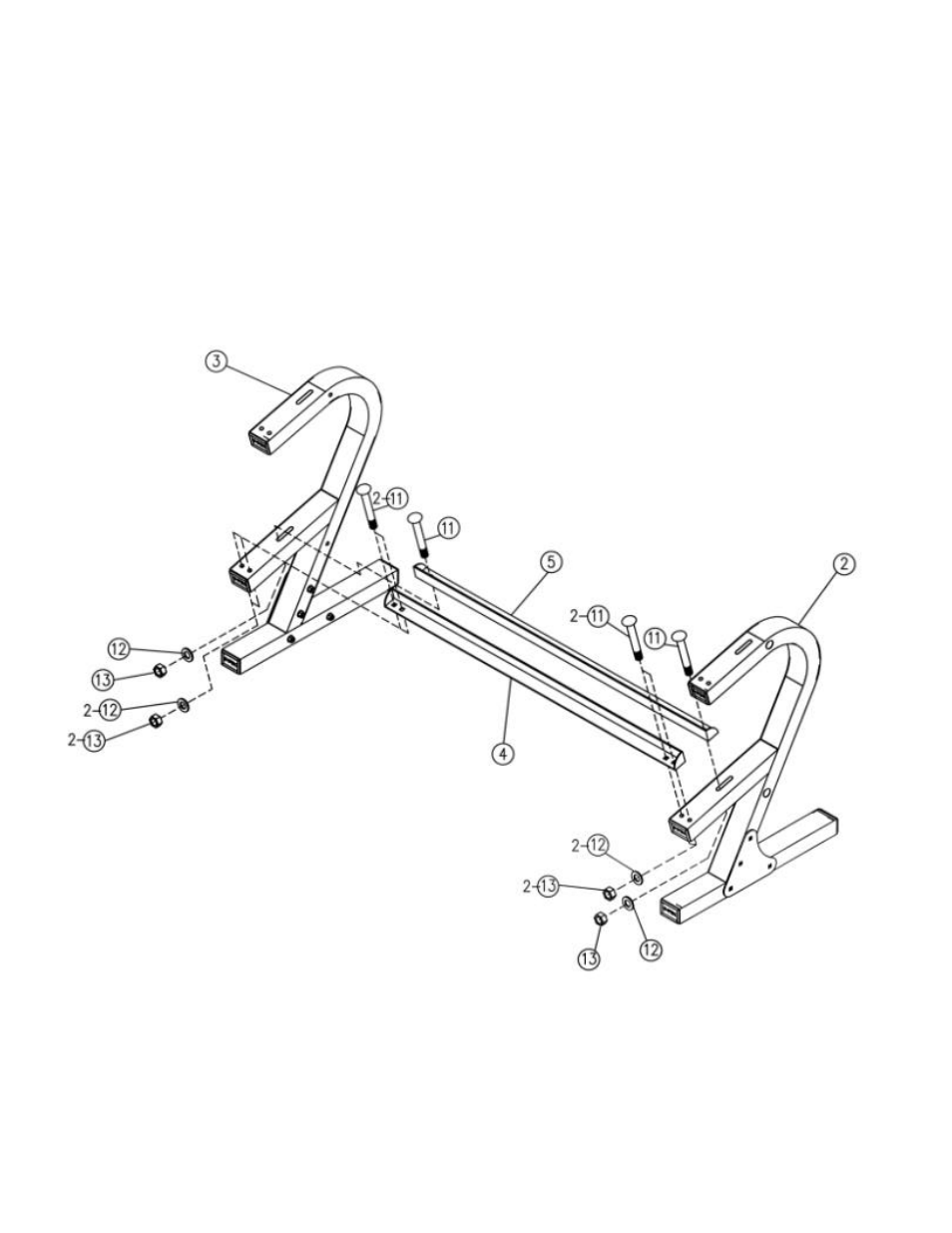

STEP 3 (See Diagram 3)
A.) Connect the two Uprights with one Fixed Rack (#4) on the lower level. Align the holes then Secure
them with two M10 x 2 ¾” Carriage Bolts (#11),
∅
¾” Washers (#12), and M10 Aircraft Nuts (#13) on
each end of the Rack. Do not tighten the nuts and bolts yet.
B.) Connect the two Uprights with one Adjustable Rack (#5) on the lower level. Align the Rack width by
positioning the smallest dumbbell on the rack. Secure the rack with one M10 x 2 ¾” Carriage Bolt
(#11),
∅
¾” Washer (#12), and M10 Aircraft Nut (#13) on each end.
C.) Securely tighten all the nuts and bolts previously installed.
DIAGRAM 3
6
