STEP 6 (See Diagram 6)
A.) Attach an Upright Beam (#49) to a Floor Stabilizer (#47). Secure it with two M10 x 2 3/4”
Carriage Bolts (#81),
∅
¾” Washers (#42), and M10 Aircraft Nuts (#44). Do not tighten
the nuts and bolts yet.
B.) Attach the upper end of Left Support (#50) to the Upright Beam. Secure it with one M10 x
5/8” Allen Bolt (#88) and
∅
¾” Washer (#42).
C.) Attach the lower end of Left Support (#50) to the Floor Stabilizer (#47). Attach one end of
the Rear Stabilizer (#53) to the Floor Stabilizer. Align the holes and secure them with two
M10 x 3 ¾” Carriage Bolts (#83),
∅
¾” Washers (#42) and M10 Aircraft Nuts (#44).
D.) Repeat Steps A, B and C above to install the other side.
E.) Securely tighten all Nuts and Bolts.

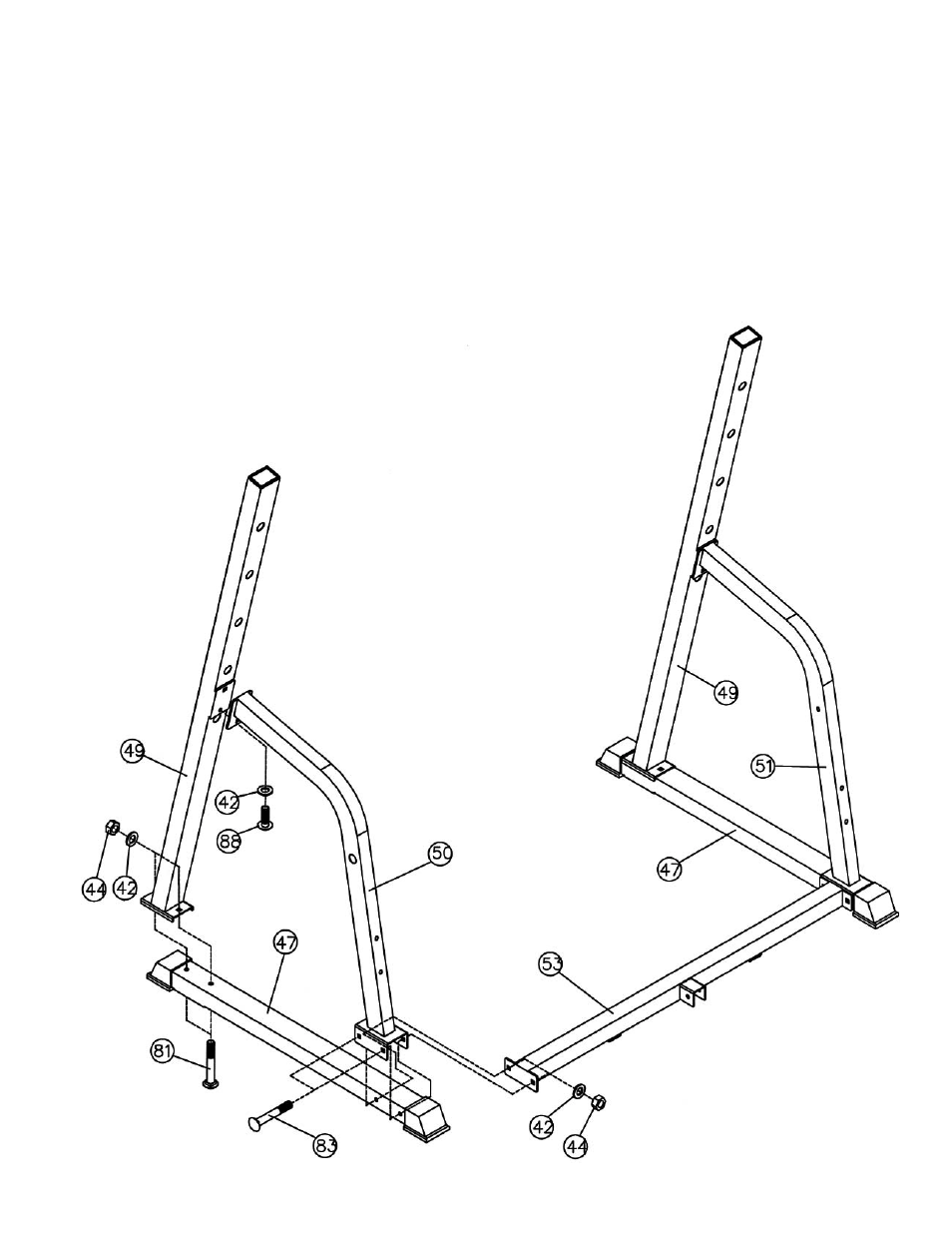

DIAGRAM 6
