ASSEMBLY INSTRUCTION


Tools Required Assembling the Machine: Two Adjustable Wrenches.
NOTE: It is strongly recommended two or more people assembling this machine to
avoid possible injury.

STEP 1 (See Diagram 1)

A.) Attach the Main Base (#2) to the Front Base (#1). Secure it with two M10 x 4” Carriage

Bolts (#15), one Base Bracket (#8), two

¾” Washers (#14), and two M10 Aircraft

Nuts (#13).

B.) Attach the Main Base (#2) to the Rear Base (#4). Secure it with two M10 x 4” Carriage

Bolts (#15), one Base Bracket (#8), two

¾” Washers (#14), and two M10 Aircraft

Nuts (#13).

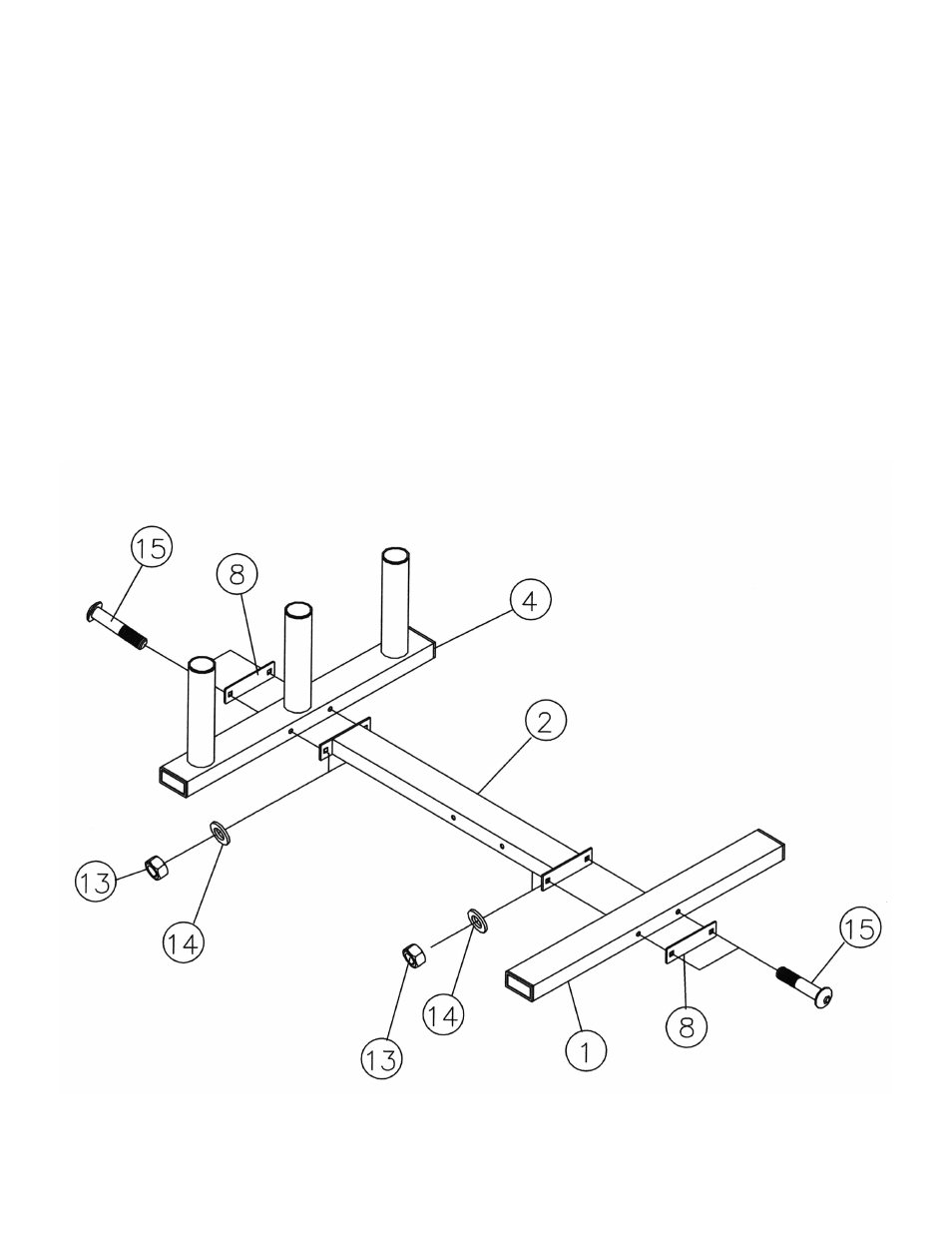

DIAGRAM 1
