ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches.
NOTE: It is strongly recommended two or more people assembling this machine to avoid
possible injury.
STEP 1 (See Diagram 1)
A.) Connect the Left & Right Upright Beams (#1) & (#2) by the Cross Brace (#3) in the mid-span.
Align the holes then secure each end of Cross Brace with one Bent Bracket (#9), two M10 x 3
¾” Carriage Bolts (#47),
∅
¾” Washers (#48), and M10 Aircraft Nuts (#49).
B.) Insert two Crutches (#8) into the top opening on the Upright Beams. Secure them with two
Lock Knobs (#64) through selected hole to obtain desired height of the Support.
C.) Place Backrest Adjustment Bar (#7) between the two Upright Beams on the selected bar
holder to obtain desired incline of Backrest.

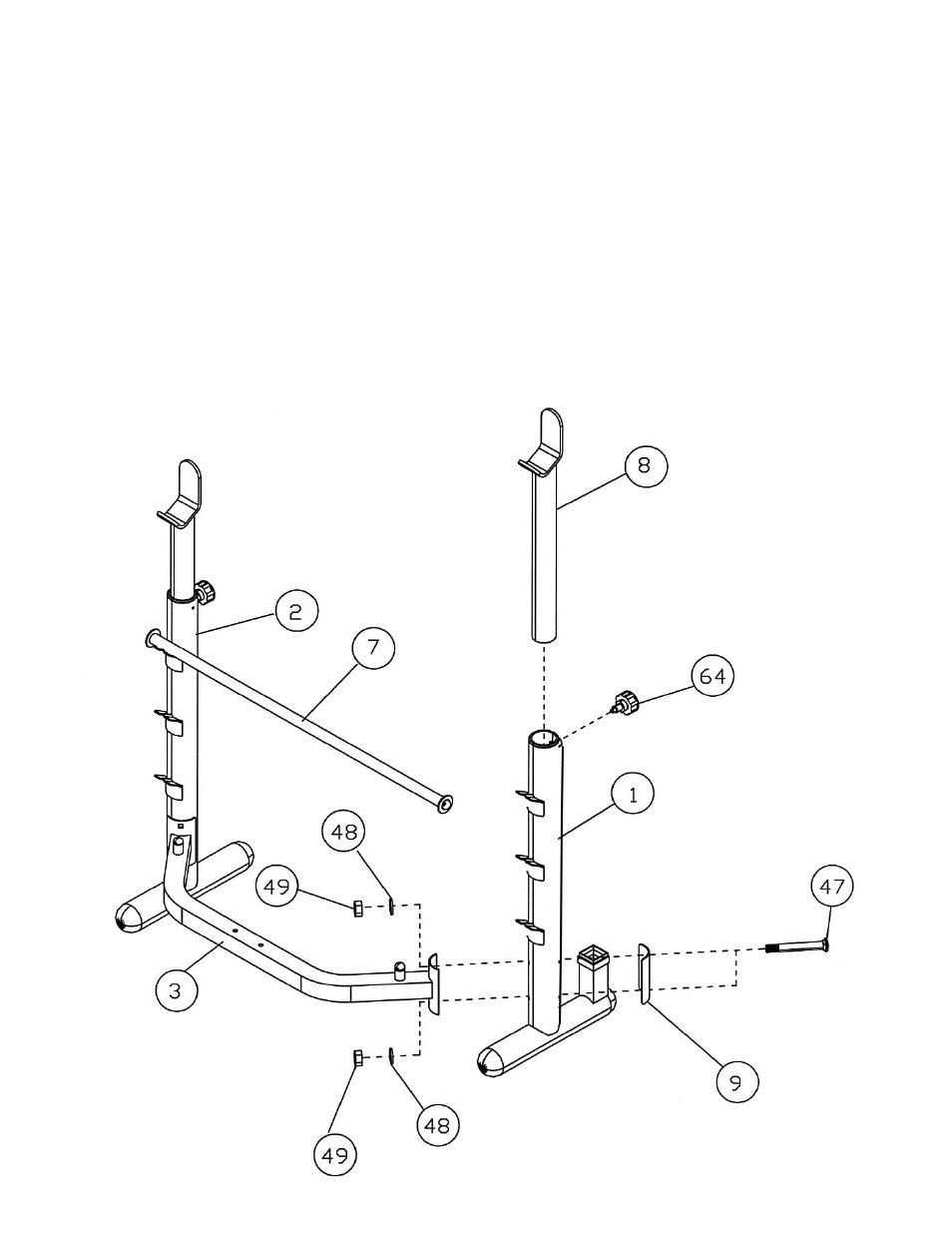

DIAGRAM 1
4
