Technical Reference
65
Midboard Connectors
Audio Connectors

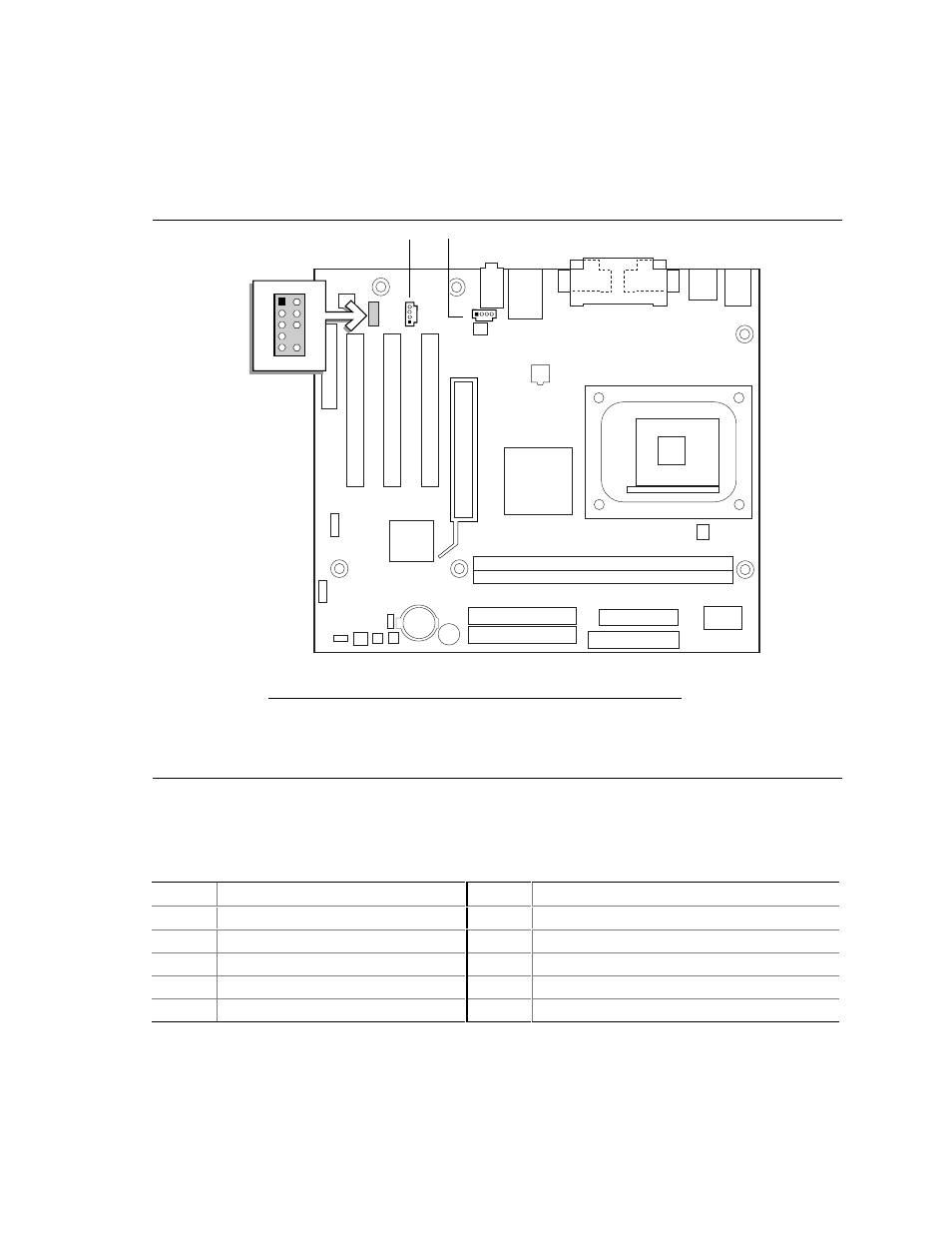

Figure 14 shows the location of the audio connectors.
OM13612
1 4
B
1
3
5
7
9 2
4
6
10
A
4
1
C
Item Description Color
A Front panel audio Black
B Auxiliary line in (ATAPI) White
C CD-ROM (ATAPI) Black
Figure 14. Audio Connectors
Table 29 shows the pin assignments for the front panel audio header.
Table 29. Front Panel Audio Header Signal Names (J8A1)
Pin Signal Name Pin Signal Name
1 AUD-MIC 2 AUD-GND
3 AUD-MIC-BIAS 4 AUD-VCC
5 AUD-FPOUT-R 6 AUD-RET-R
7 HP-ON 8 KEY
9 AUD-FPOUT-L 10 AUD-RET-L
