1070 keyboard unit – IBM THINKPAD 760C/CD (9546) User Manual

Page 151

background image

1070 Keyboard Unit

Battery Pack (1020)
Top Cover (1060)

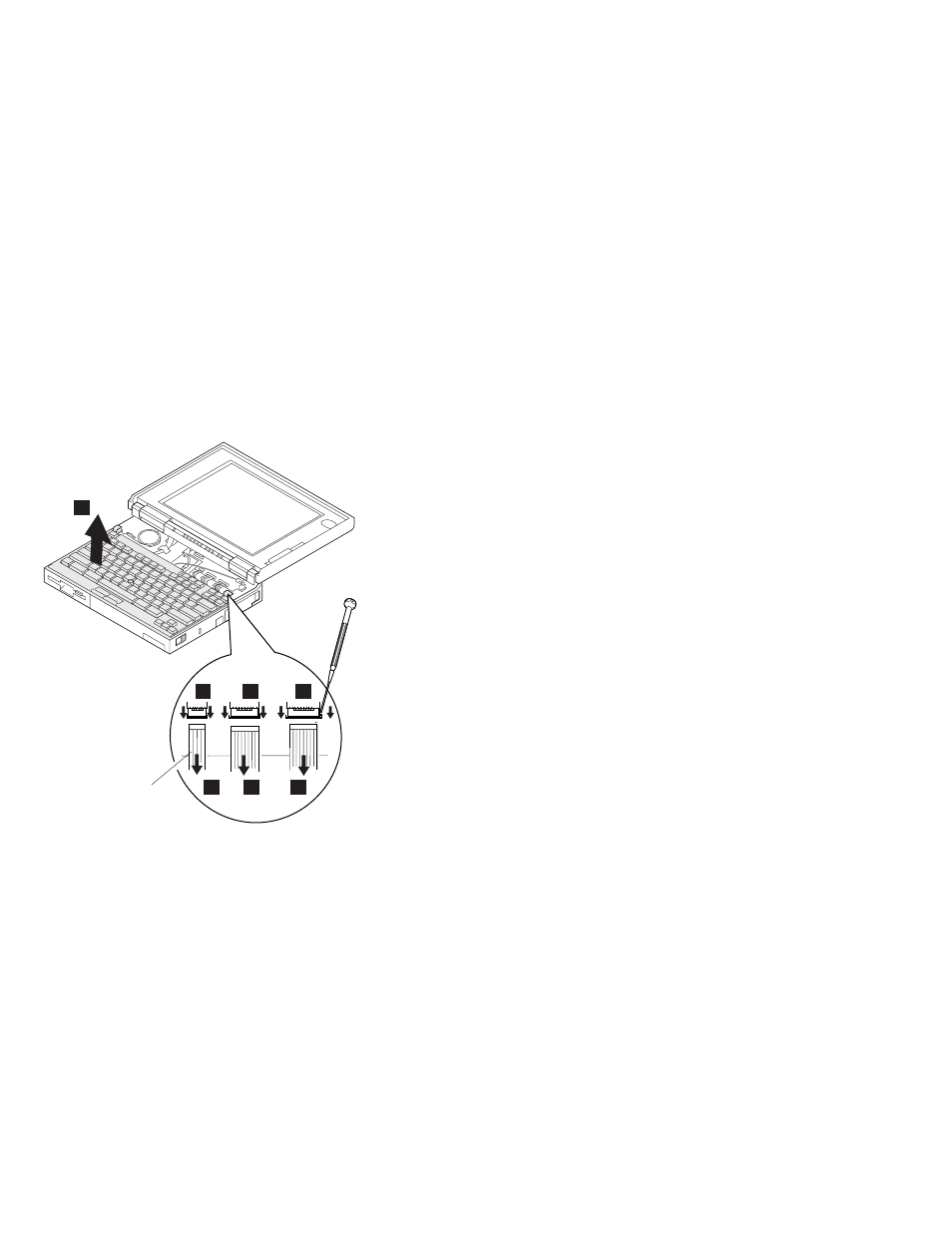

When replacing the keyboard unit, connect the keyboard
connector as shown in the figure; then replace the
keyboard.

3

Cable of the
TrackPoint

2

2

2

1

1

1

ThinkPad 365X, 365XD (2625)

139
