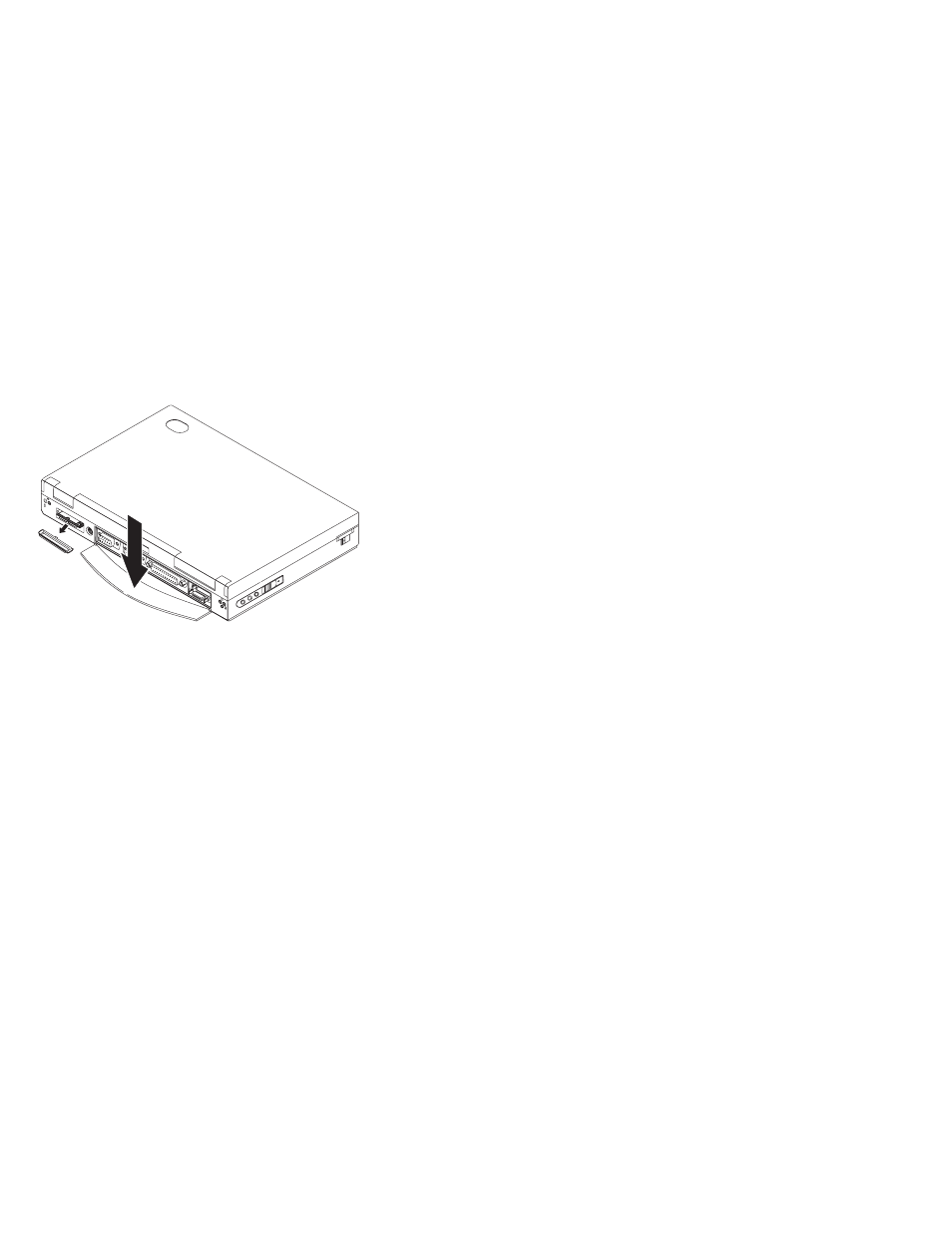

1010 Rear Connector Door

Remove the center latch, then remove the rear connector
door by flexing it.

128

IBM Mobile Systems - ThinkPad HMM Volume 3
