STEP 6 (See Diagram 6)
A.) Attach the Leg Developer (#8) to the Main Frame. Secure it with M10 x 3” Allen Bolt
(#59), two
∅
¾” Washers (#64), and one M10 Aircraft Nut (#63).
B.) Insert one Foam Tube (#25) halfway through the hole on the Main Base Frame. Insert
two Foam Tubes halfway through the holes on the Leg Developer.
C.) Push six Foam Rolls (#31) onto the Foam Tubes from both ends.
D.) Attach the Curl Bar Handle Frame (#13) to the Leg Developer. Secure it with a L-
shaped Pin (#40). Remove the Pin and the Curl Bar when doing Leg Developer
exercises.
E.) Attach a Spring Clip (#34) to the weight post on the Leg Developer.

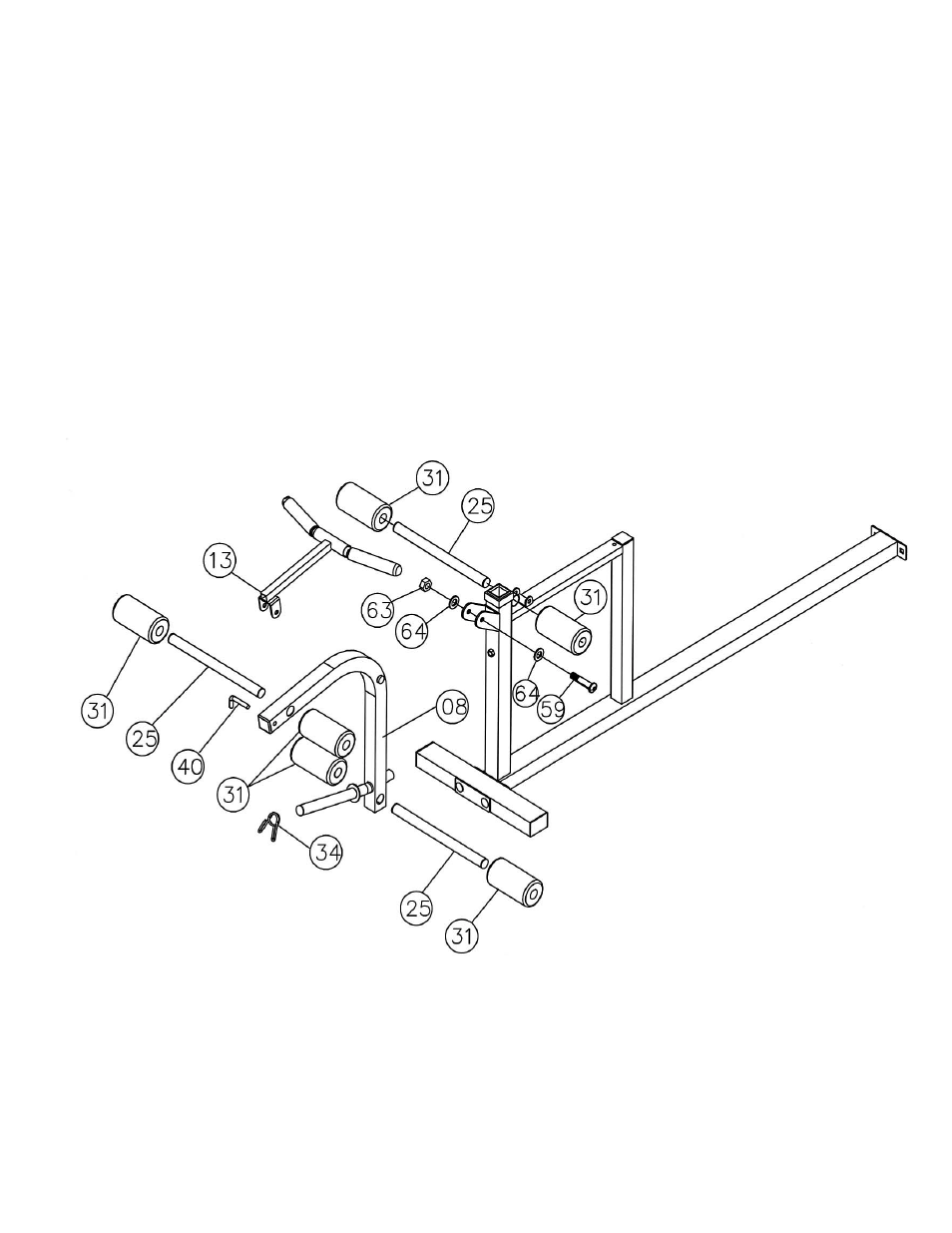

DIAGRAM 6
9
