Insignia NS-PDVD8 8.5" Personal DVD Player
www.insignia-products.com

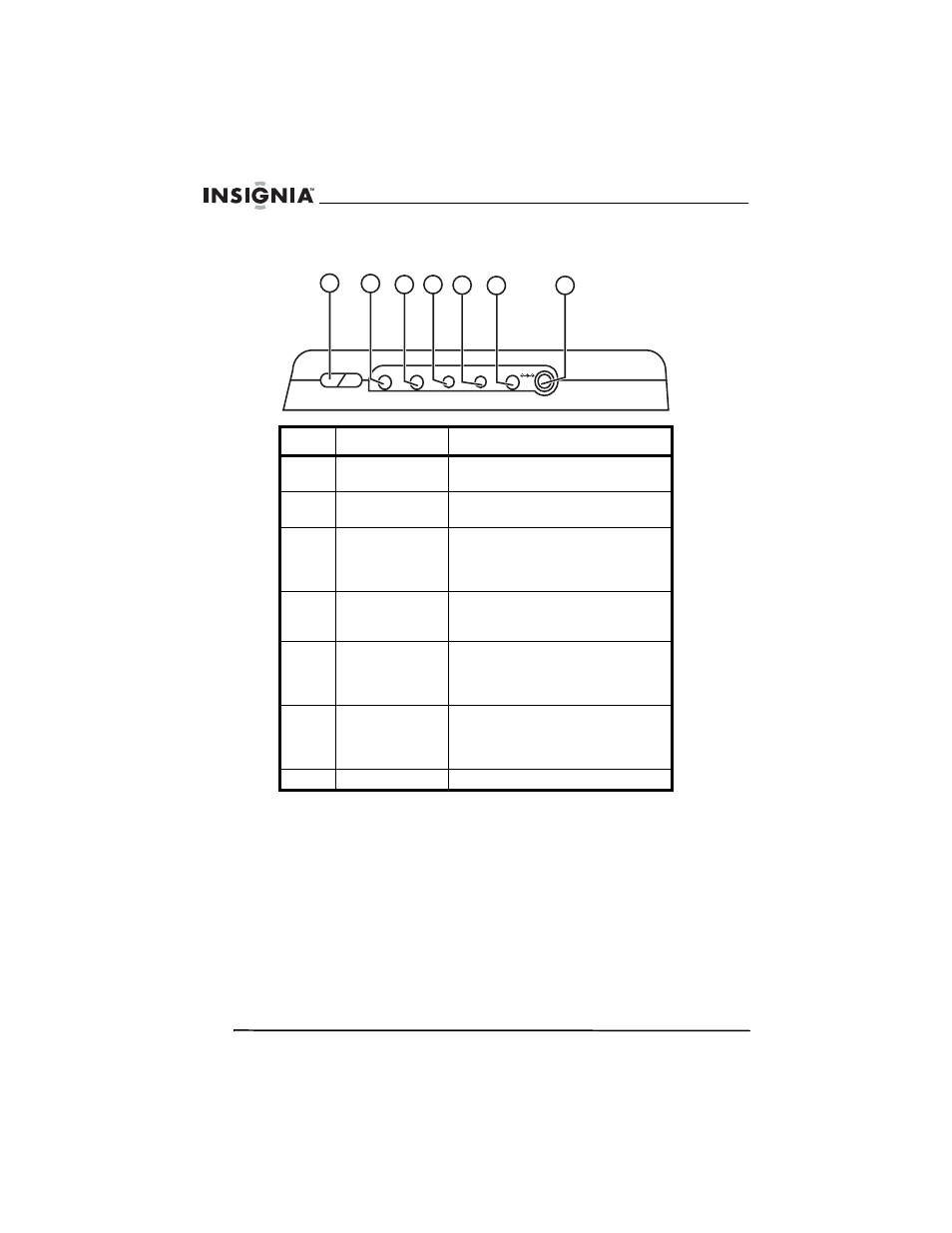

Right
No. Component Description
1 VOLUME
buttons Press + or – to increase or
decrease the volume.
2 PHONE 3 Plug a set of headphones into this
jack.
3 AV OUT Plug the mini AV connector on the
AV cable into this jack. Plug the
other connectors into an external
audio/video device.
4 COAXIAL OUT Plug a digital coaxial cable into this
jack and into the coaxial IN jack on
an amplifier.
5 DC OUT Plug a power-connecting cable
into this jack and into the DC IN
jack on the optional TV tuner to
watch playback on a TV.
6 AV IN Plug the mini connector on the AV
cable into this jack. Plug the other
connectors into the audio/video
jacks on the optional TV tuner.
7 DC IN Plug the AC adapter into this jack.
AV OUT AV IN COAXIAL DC OUT 5V DC IN 9V PHONE-3
1 2 3 4 5 6 7
