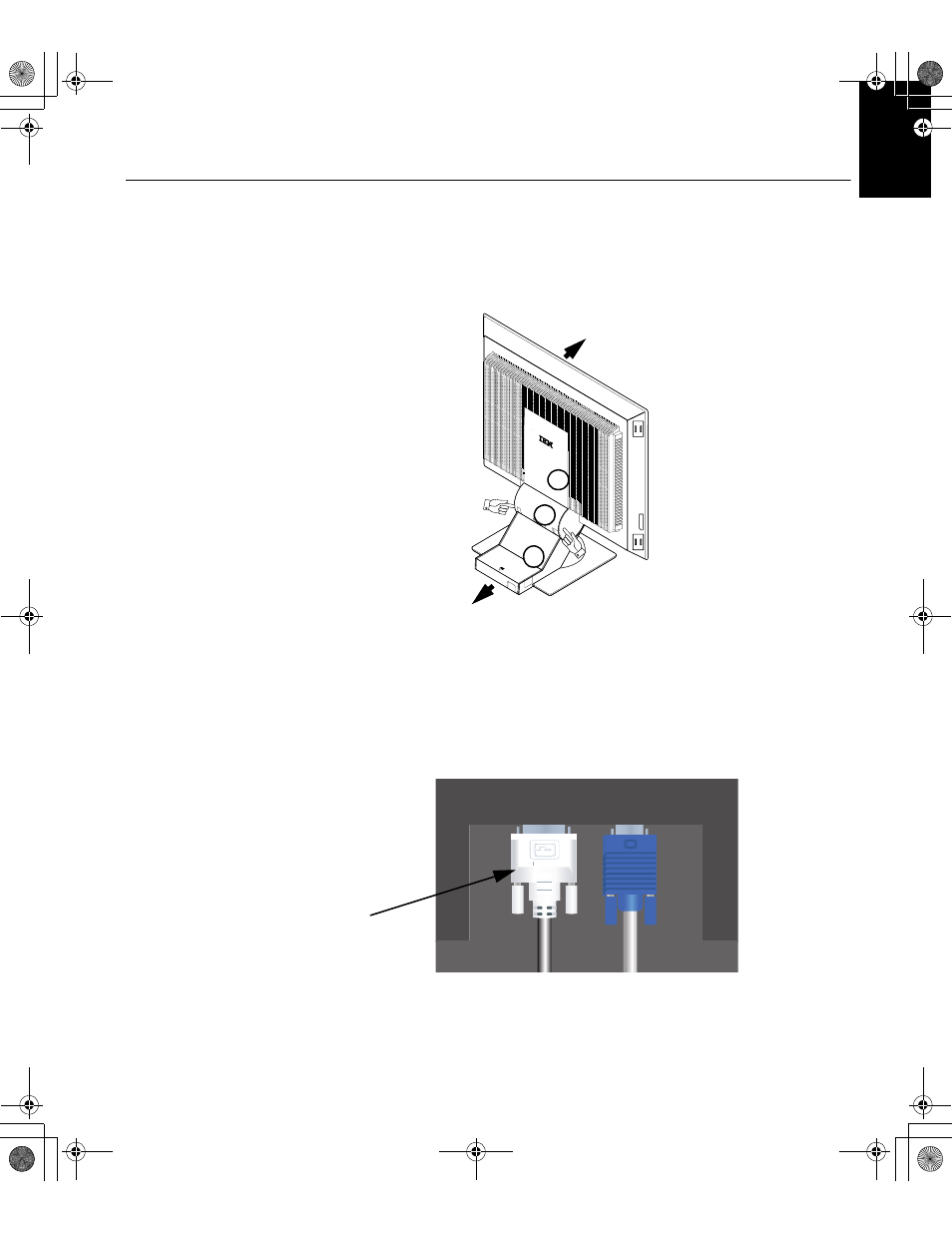

Connecting your Monitor for Digital
1. Purchase an industry standard DVI-D cable from your local computer
supply store.
2. Turn off your computer and all attached devices.
3. Tilt monitor all the way forward.
4. Squeeze the sides of the hinge cover (b) and pull it off. The cable cover
(a) will also come off.
5. Gently lift the stand cover (c) along the top and then slide it backwards
and off the stand.
6. Connect the DVI connector at the end of the signal cable to the DVI port
located on the back of the Monitor. See picture below.
Connecting DVI Cable
b
c
a
forward tilt
DVI
Cable
