The CC-1 center-channel speaker is designed for easy horizontal
placement on top of (or on a shelf below) a television. It comes with
built-in feet to protect furniture. Simply position the speaker so the
front (grille) is even with the TV screen.
For surround left and right channels, place a CC-1 speaker on the left
and another on the right, horizontally on bookshelves or stands, above
and behind the listening area.
For wall or ceiling installations, use a pair of OmniMount Systems
Mounting Brackets (Model #25-ST-MP) and attach them via convenient
threaded inserts on the back of each cabinet, as shown in Figure 2. In
this case, you can mount CC-1 speakers horizontally or vertically.
NOTE: See your local audio/video retailer or contact OmniMount Systems
directly at 602-829-8000 to obtain mounting brackets.
C
ENTER
P
LACEMENT
...
R
EAR
P
LACEMENT
...
Infinity CC-1 Center-Channel Speaker Owner’s Manual ◆ 3
OmniMount System
Model #25-ST-MP
(see OmniMount instructions)
Use screws
supplied with
CC-1
CC-1
(rear view)

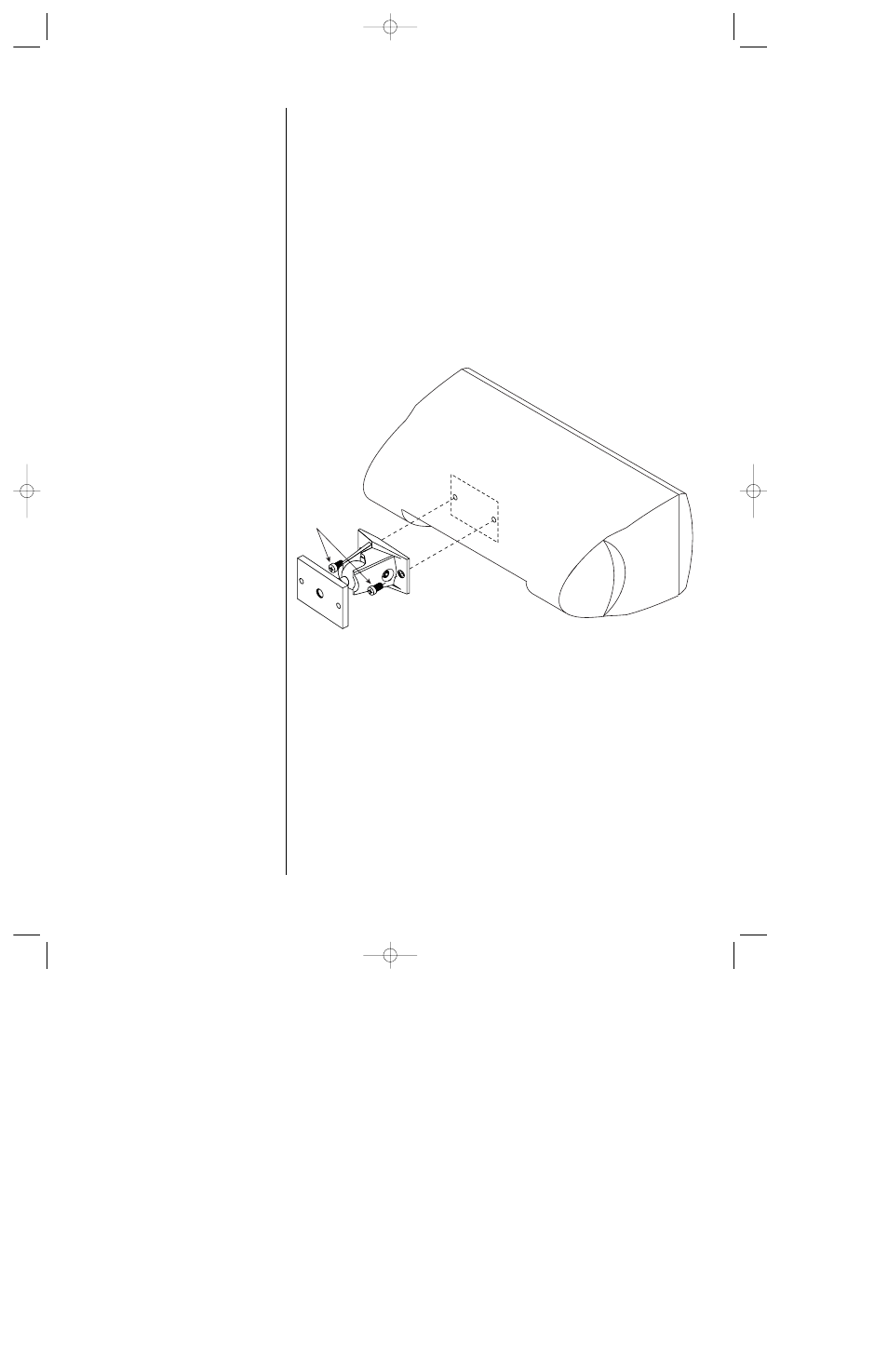

Figure 2. Each CC-1 center-channel
speaker includes threaded inserts for
use with an optional OmniMount
System Model #25-ST-MP Mounting
Bracket. Follow the instructions
packed with the OmniMount product
to correctly install each assembly and
make sure only wall studs or ceiling
joists are used as mounting locations.
