ASSEMBLY INSTRUCTION
NOTE: It is strongly recommended two or more people assembling this machine to
avoid possible injury.
STEP 1 (See Diagram1)
A.) Attach the Front Stabilizer (#2) to the Main Frame (#1). Secure it with two M10 x 3”
Carriage Bolts (#15),
∅
1” Bent Washers (#16), and M10 Acorn Nuts (#17).
B.) Attach the Base Frame (#7) to the Main Frame (#1). Secure it with six M8 x 5/8” Allen Bolts
(#18) and Ø 5/8” Washers (#20).
C.) Slide the Seat Post (#8) onto the Base Frame (#7). Secure it with a Seat Post Lock Knob
(#31). Attach the Rear Stabilizer (#3) to the Seat Post (#8). Secure it with four M8 x 5/8”
Allen Bolts (#18) and
∅
5/8” Washers (#20).
D.) Plug the Roller Caps (#28) onto both ends of Front Stabilizer. Plug the Rear Stabilizer End
Caps (#29) onto both ends of Rear Stabilizer. Set the bike firmly on a flat surface. If the
surface is uneven, rotate the Rear Stabilizer End Caps to level the bike.

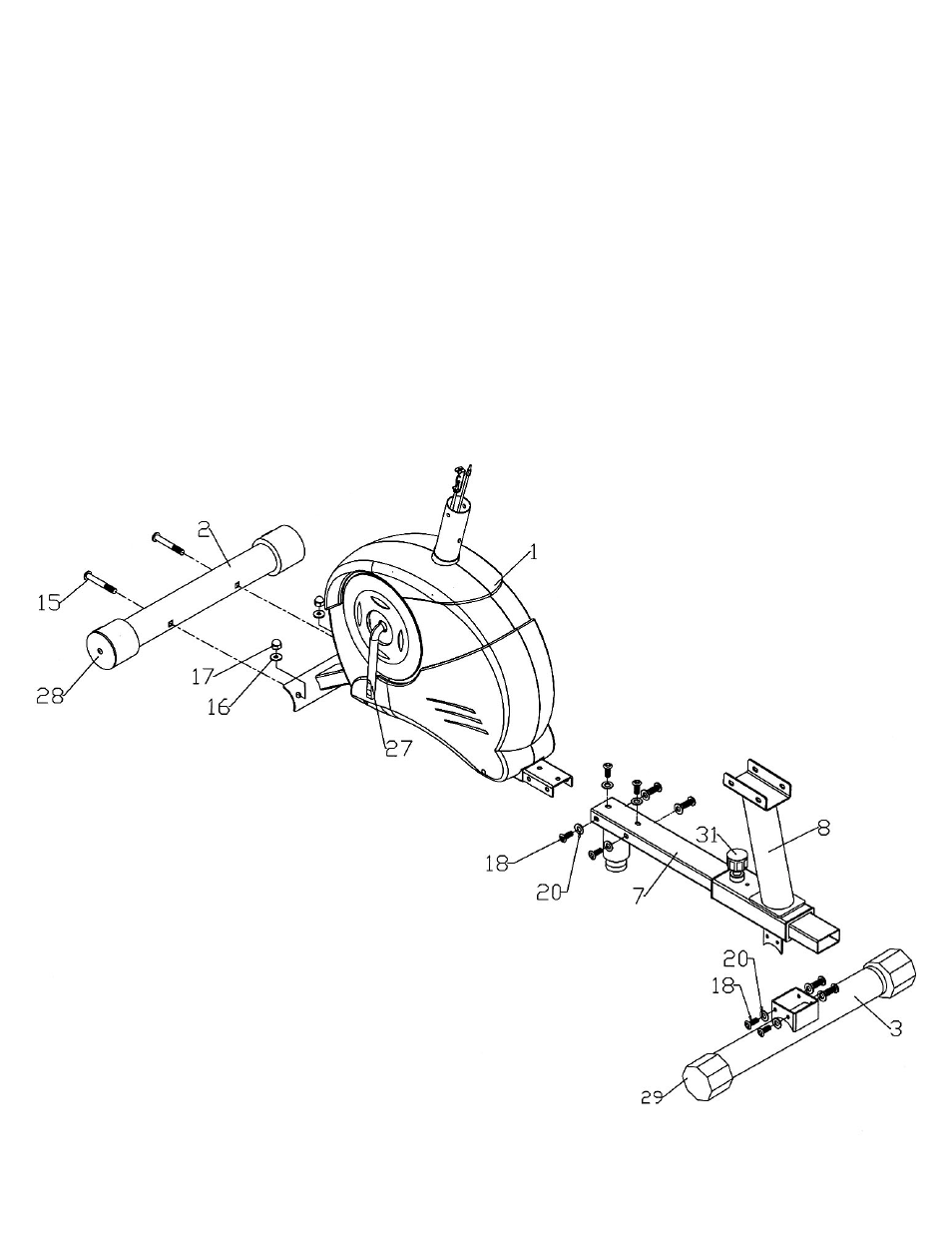

DIAGRAM 1
5
