STEP 3 (See Diagram 3)
A.) Attach the Seat Bracket (#6) to the pivot on the Sliding Block (#5). Push two
∅
¾” x
3/8” Bushings (#53) through the holes on the Seat Bracket into both ends of the pivot.
B.) Attach the Backrest Supports (#12) to the Bushings. Secure it with one M10 x 7 ¼”
Hex Bolt (#42), two
∅
¾” Washers (#39), and one M10 Aircraft Nut (#40).
C.) Attach the Backrest Incline Support (#11) to the Backrest Supports (#12). Secure it
with a M10 x 7 ¼” Hex Bolt (#42), two
∅
¾” Washers (#39), and one M10 Aircraft Nut
(#40).
D.) Attach the other end of Backrest Incline Support (#11) to the open bracket on the Main
Seat Support (#4). Secure it with one M10 x 3 3/8” Allen Bolt (#44), two
∅
¾”
Washers (#39), and one M10 Aircraft Nut (#40).
E.) Use the Sliding Block to select desired Backrest Incline position. NOTE: Do not over
tighten the Bolts and Nuts. Make sure the Backrest Supports are able to incline.

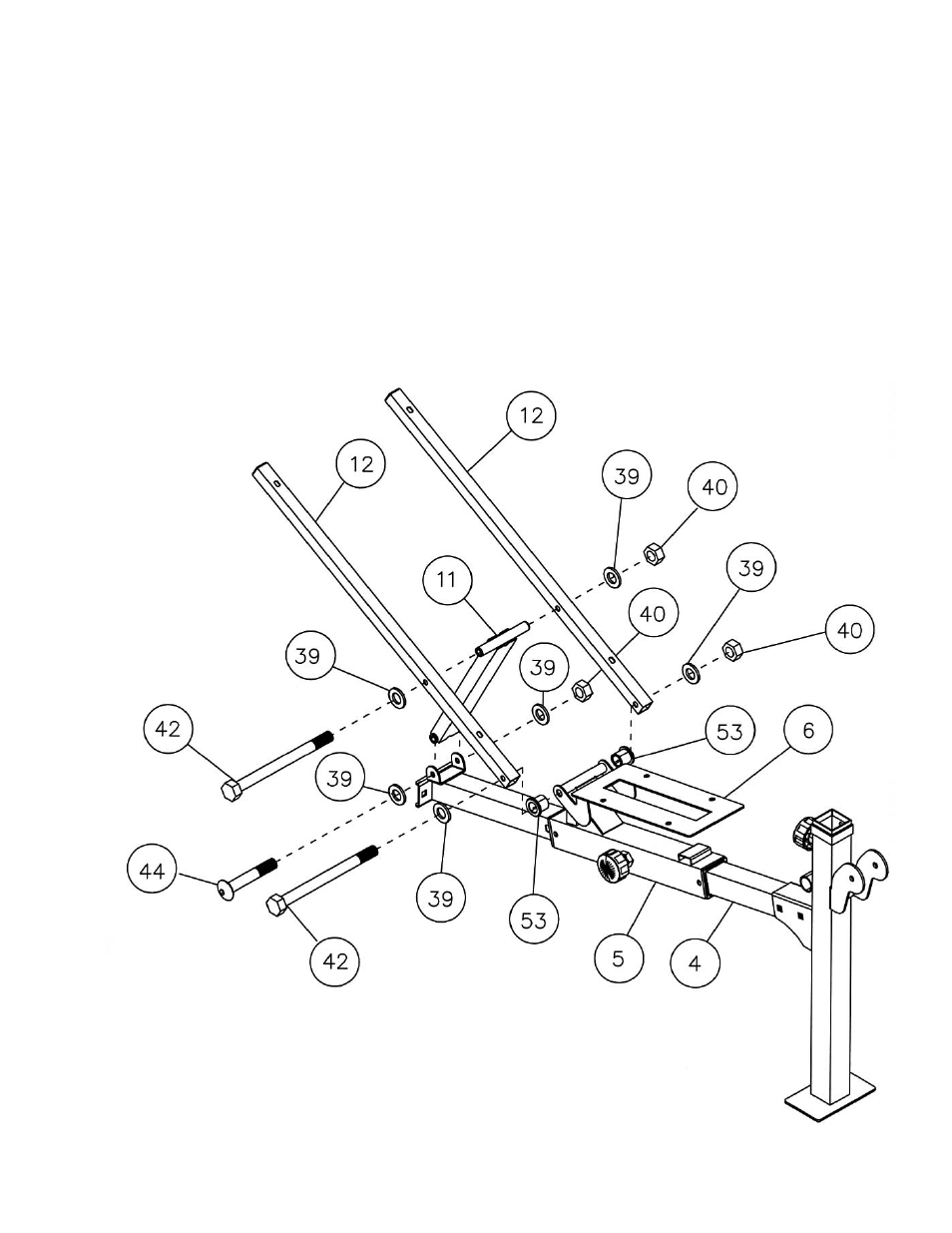

DIAGRAM 3
