STEP 4 (See Diagram 4)
A.) Attach two Ø ¾” Leg Developer Bushings (#27) to the Leg Developer (#11). Attach the
Leg Developer to the Front Post (#10). Secure it with one M10 x 3 1/8” Allen Bolt (#46),
two Ø ¾” Washers (#53), and one M10 Aircraft Nut (#57
). Do not over tighten the Nut
and Bolt. Make sure the Leg Developer is able to swivel.
B.) Insert three Foam Tubes (#13) halfway through the holes on the Leg Developer and Front
Post. Push six Foam Rolls (#33) onto the Tubes from both ends. Plug six Foam Roll End
Caps (#32) into the ends.
C.) Slide an Olympic Sleeve (#35) onto the weight post on Leg Developer. Attach a Spring
Clip (#36) onto the Sleeve.

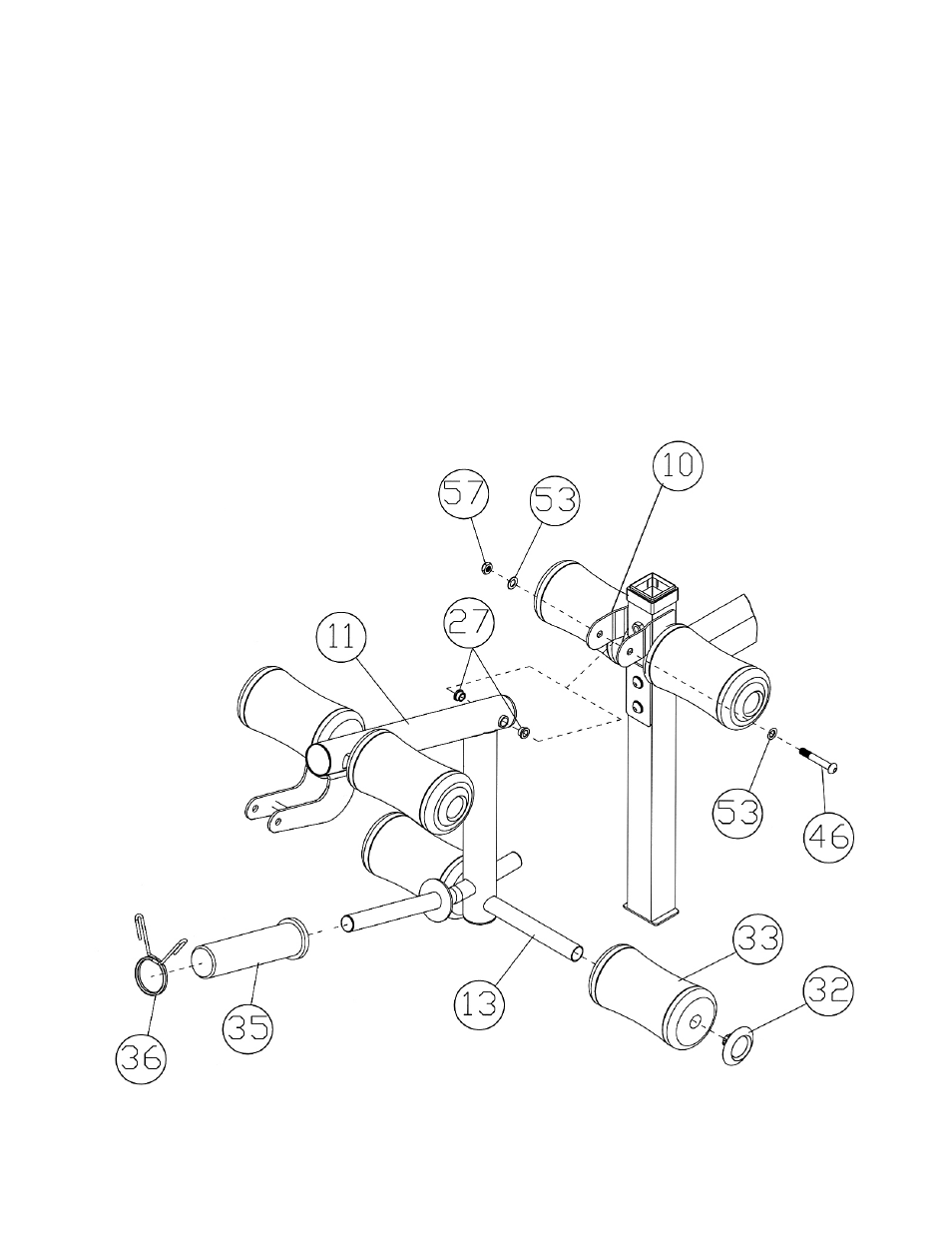

DIAGRAM 4
