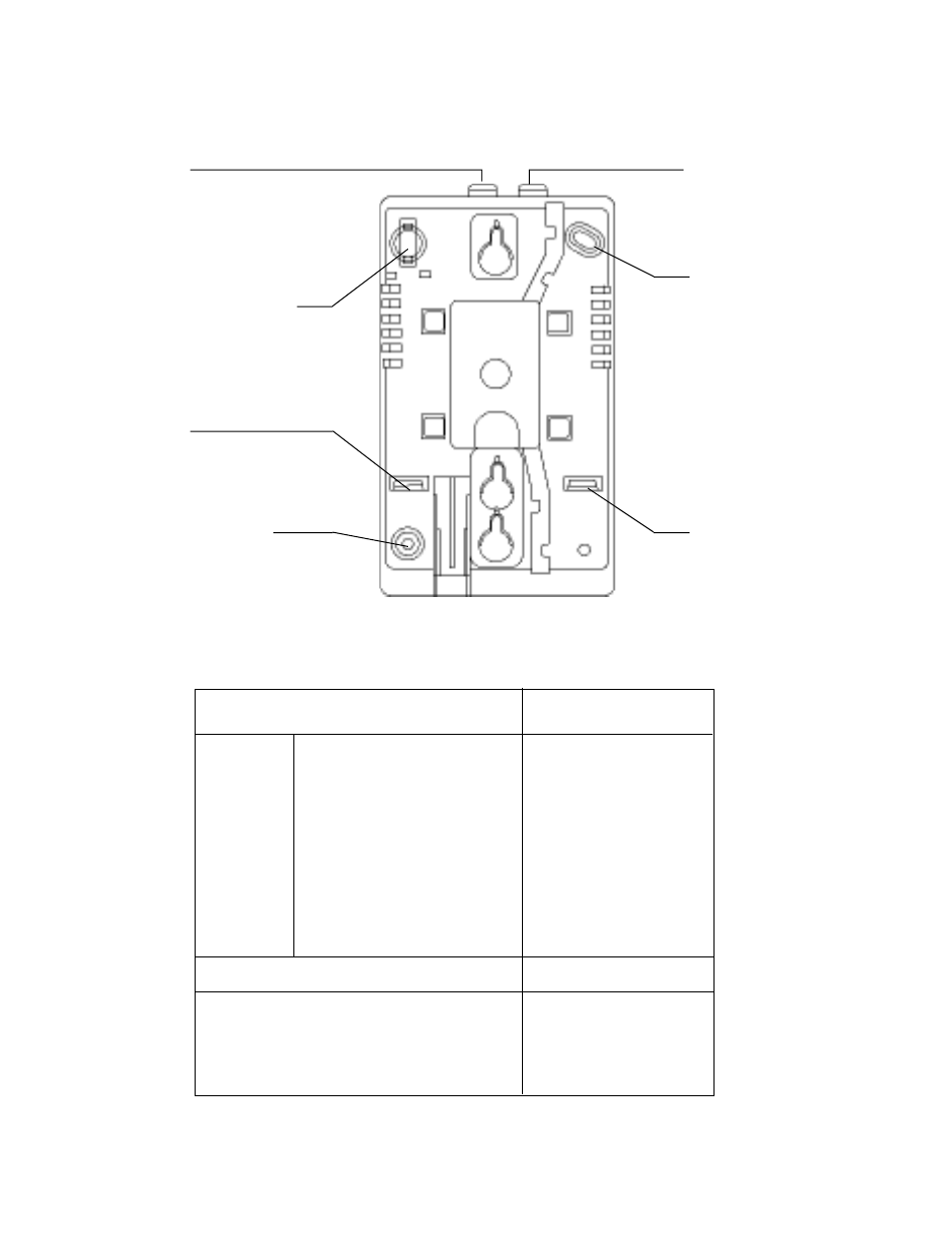

FIGURE 3

WALL-MOUNT BRACKET

(

OPTIONAL NOT INCLUDED WITH PHONE

)

Please note:
1. This wall bracket may be secured onto the wall by using mounting holes "E" and "F"
2. Lugs to break off before wall mounting the phone.

MOUNTING HOLE "F"

MOUNTING
HOLE "E"

LUG "D"

PIVOT FOR SWING-OUT
PLATE USED FOR
MODEL IQTEL 25

LUG "A"

LUG "C"

LUG "B"

BREAK OFF LUGS

"B" and "D"

"A" and "C"

"A" ONLY

TELEPHONE MODELS

IQ 90
IQ 150
IQ 250
IQ 260
IQ 360
IQ 350
IQ 450
IQ 550
IQ E2
IQ E3

IQTEL 25

IQ 300
9853 XT
9835 MKII
9836
9837

IQTEL 80
IQTEL 300
IQTEL 500
IQTEL E1
IQTEL E2
IQTEL E3
IQTEL ET
STUDIO 20
GEMINI IQ33X SERIES
