SECTION 12—BATTERIES

4. Cut the tie-wrap that secure each the battery terminal cap in place.

5. Slide terminal cap(s) UP on the battery cable(s).

6. Disconnect battery cable(s) from battery(ies) terminal(s)/post(s):

A. POSITIVE (+) RED battery cable from the POSITIVE (+) battery terminal/post.

B. NEGATIVE (-) BLACK battery cable from NEGATIVE (-) battery terminal/post.

NOTE: Only battery cable and terminal cap shown. Both caps install in the same manner.

NOTE: Do not remove fuse or mounting hardware from the POSITIVE (+) RED battery cable/
mounting screw.

BLACK Battery

Cable

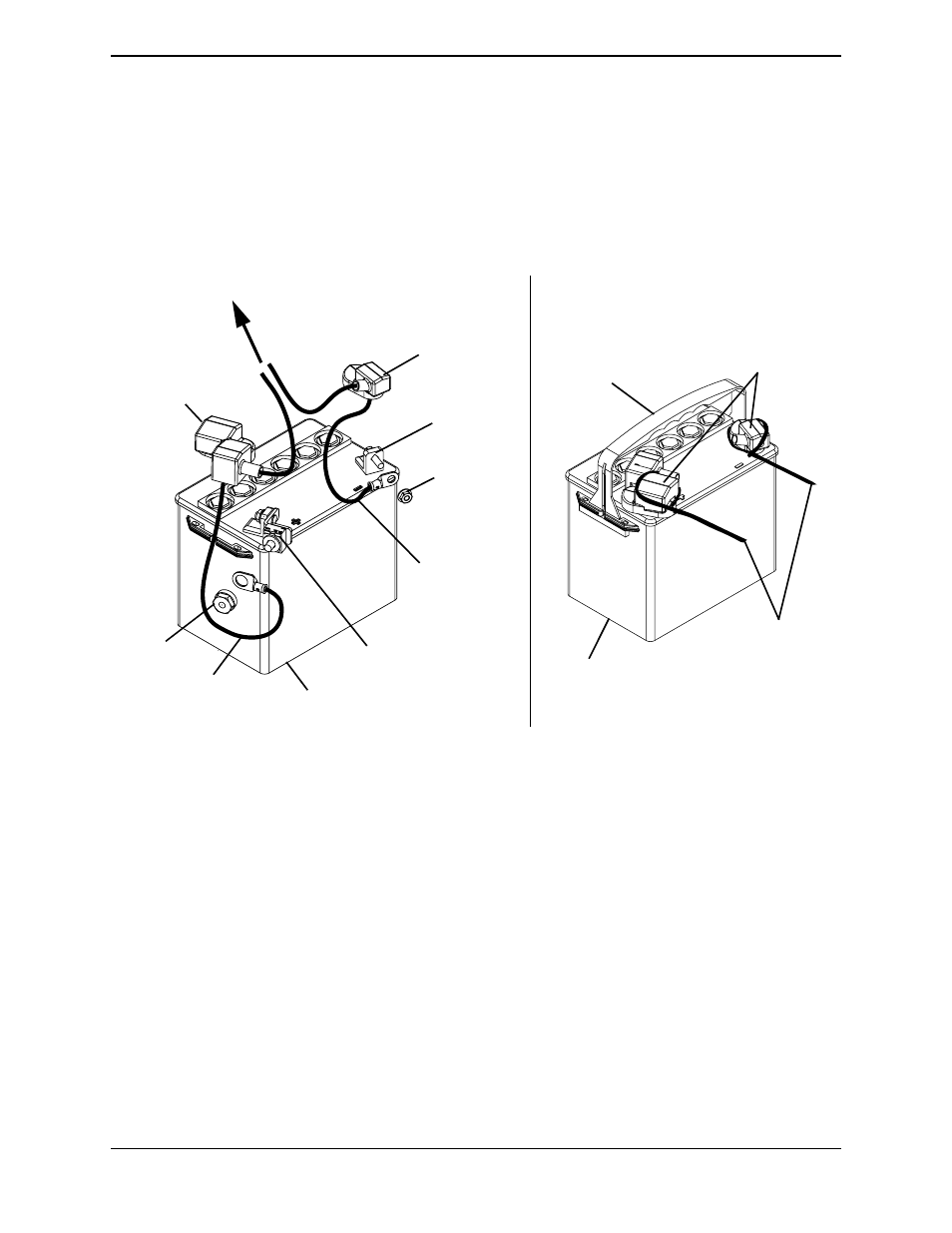

DETAIL “A” - TERMINAL CAPS TIE

WRAPS

Battery Handle

Battery Terminal

Caps

U1 Battery

Tie Wraps

POSITIVE (+)

Terminal Cap

U1 Battery

NEGATIVE (-)

Terminal Cap

TO BLACK BATTERY

CONNECTOR

RED Battery Cable

POSITIVE (+) Battery

Terminal with Bracket

NEGATIVE (-)

Battery

Terminal

Locknut
