STEP 4 (See Diagram 4)
A.) Insert the Foam Tube (#10) halfway through the hole on the Main Frame (#1).
Push two Foam Rolls (#12) onto the Foam Tube from both ends. Plug the Foam
Roll End Caps (#11) into the ends.
B.) Place the Seat (#8) onto the Seat Support Frames (#6). Secure it with four M8 x 2”
Allen Bolts (#23) and
∅
5/8” Washers (#24).
C.) Place the Backrest Board (#9) onto the Backrest Supports (#7). Secure it with four
M8 x 2” Allen Bolts (#23) and
∅
5/8” Washers (#24).

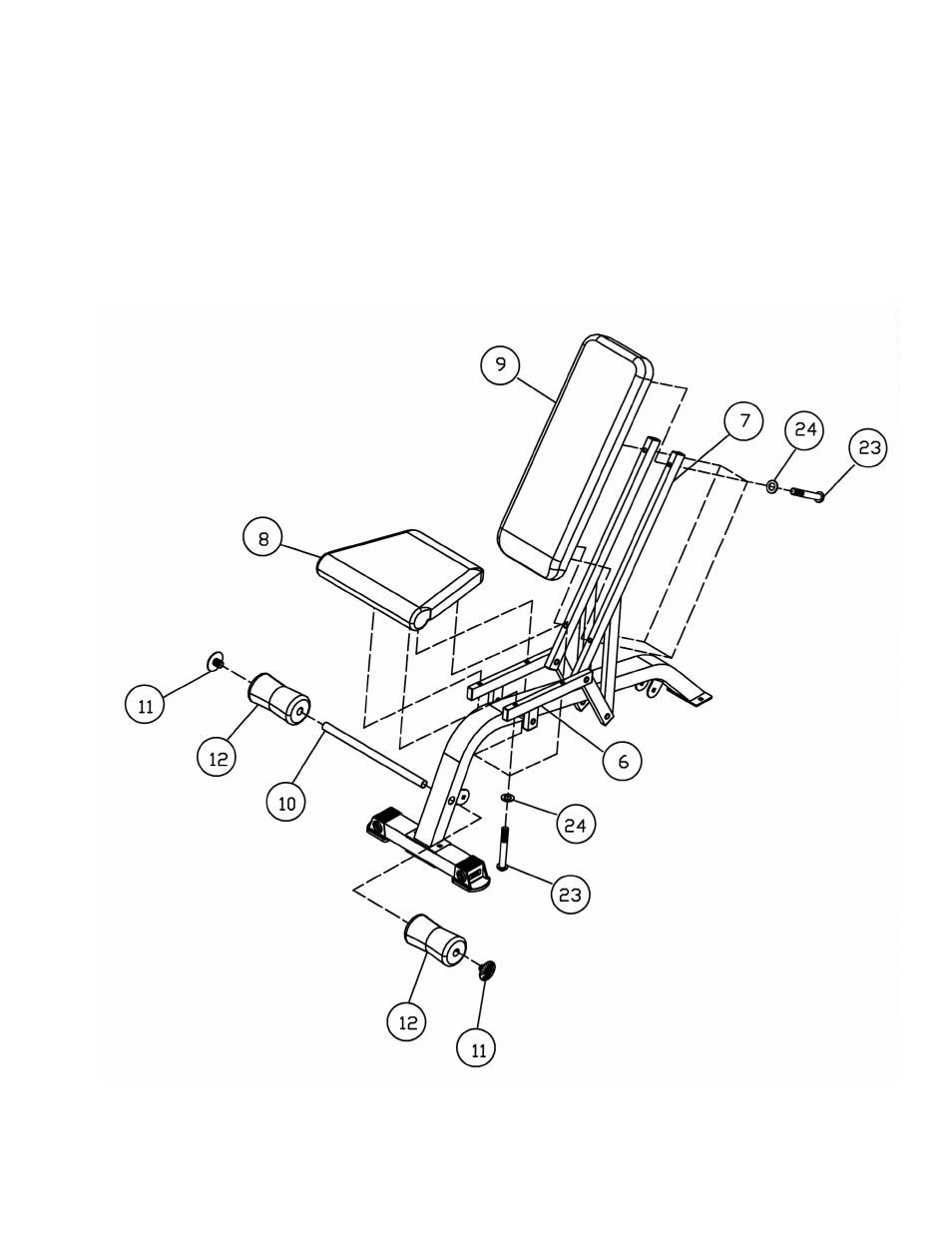

DIAGRAM 4
