STEP 2 (See Diagram 2)

A.) Attach the Right & Left Bracket (#6 & 7) to the Main Base (#2). Align the holes

and secure them with two M10 x 4” Carriage Bolts (#15), two Ø ¾” Washers
(#14), and two M10 Aircraft Nuts (#13).

B.) Attach the Vertical Frame (#3) in between the two Brackets. Secure them with

two M10 x 3 1/8” Carriage Bolts (#16), two Ø ¾” Washers (#14), and two M10
Aircraft Nuts (#13).

C.) Attach four Spring Clips (#16) to the weight posts on the Vertical Frame (#3).

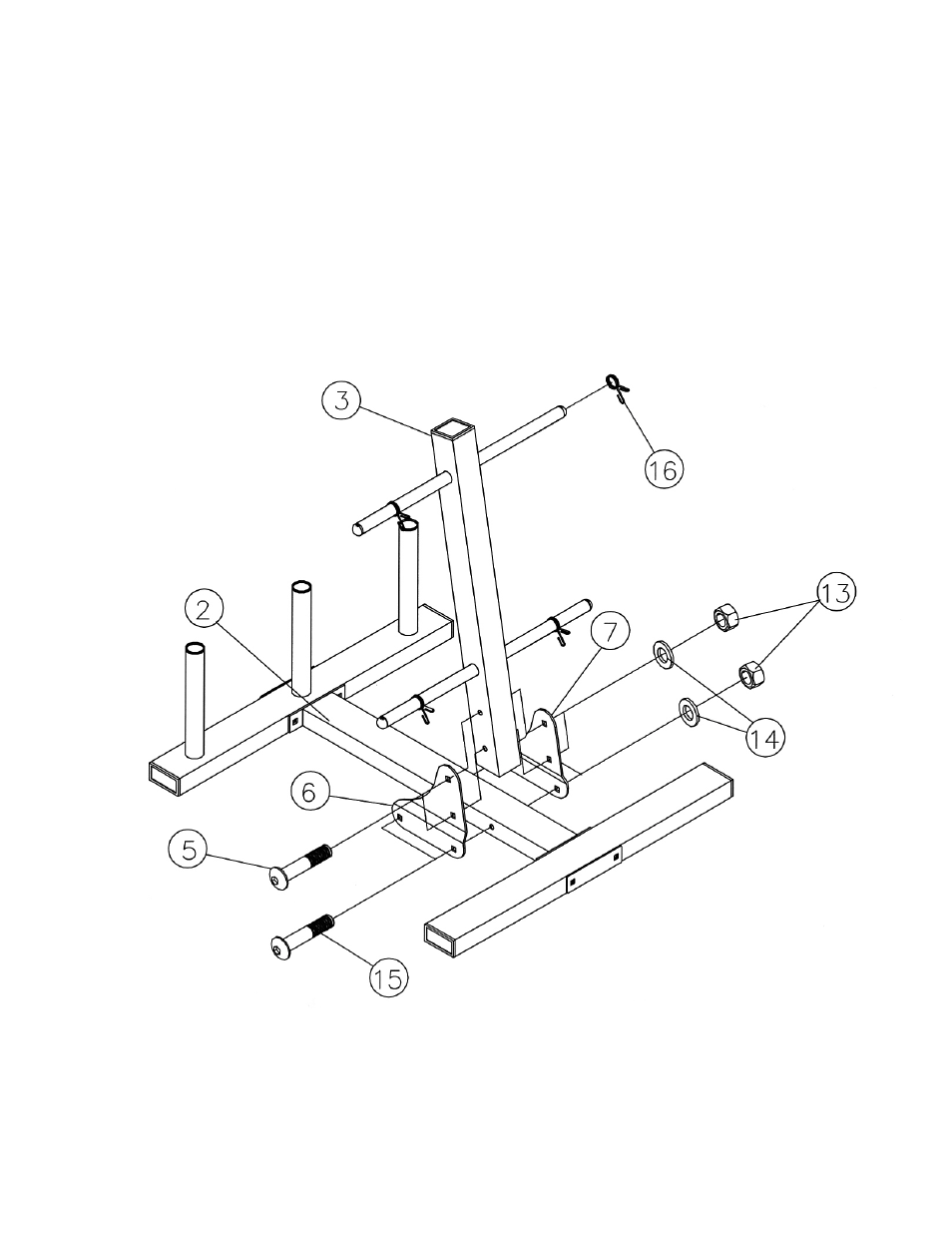

DIAGRAM 2
