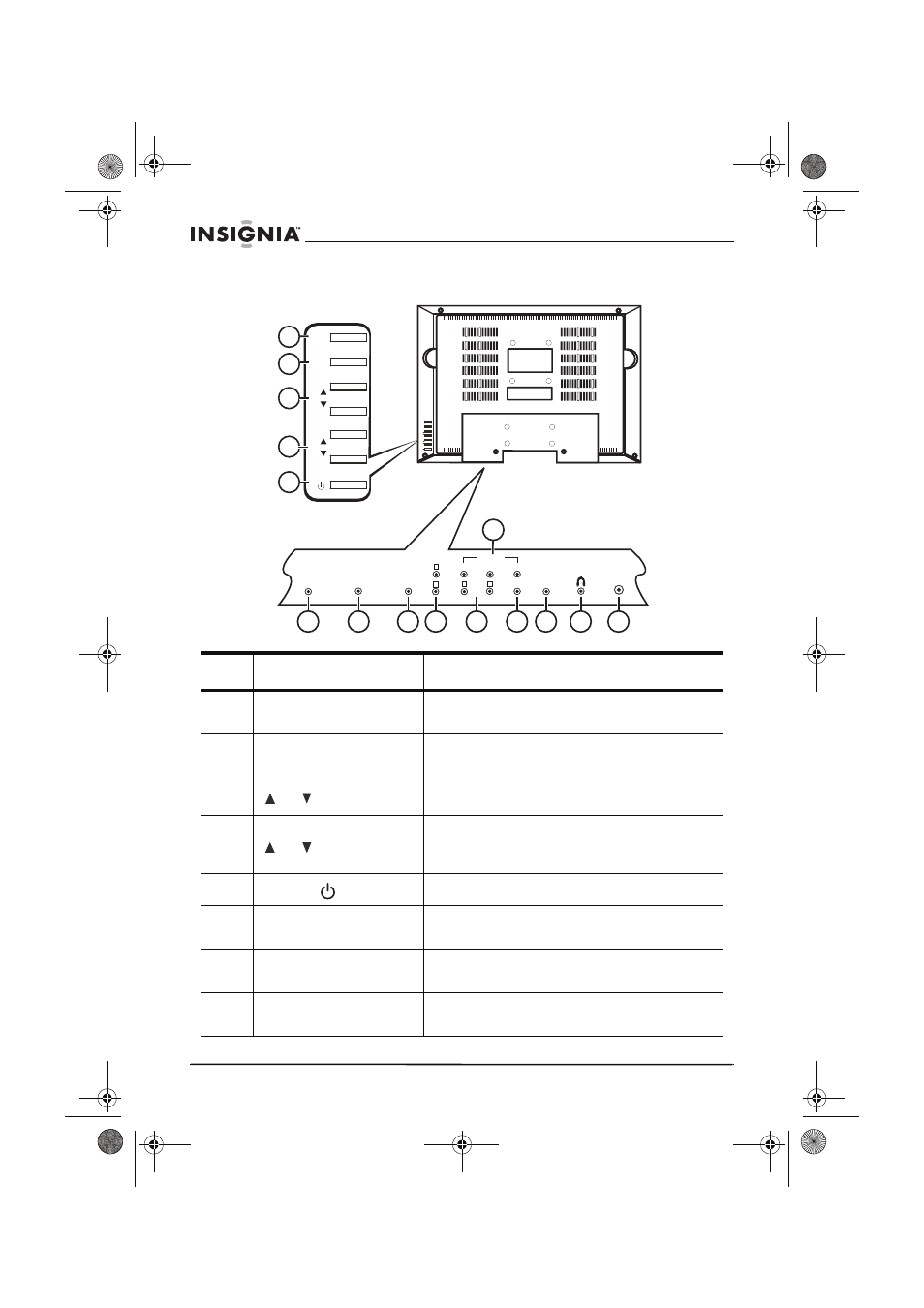

Front and back panels
Item Control/connection Function
1 INPUT button Press to select TV mode (TV, AV, S-Video,
Component, or VGA).
2 MENU button Press to open or exit the main setup menu.
3 CHANNEL
or buttons
Press to change the channels up or down
through memorized channels.
4 VOLUME
or buttons
Press to adjust the volume up or down, or to
change settings or move to the next menu
screen.
5 POWER button Press to turn your TV on or off.
6 DC 12V input Plug the cord from the AC power adapter into
this jack.
7 VGA port Plug the VGA output from your computer into
this jack.
8 PC audio Plug the audio output from your computer
into this jack.
INPUT
MENU
CH
VOL
AUDIO 2 COMPONENT
Y Pb/Cb Pr/Cr
ANTENNA
S-VIDEO VIDEO
AUDIO 1
R L R
L
PC AUDIO VGA DC 12V INPUT
INPUT
MENU
CH
VOL
1
2
3
4
5
6 7 8 9 10 11 12 13 14
