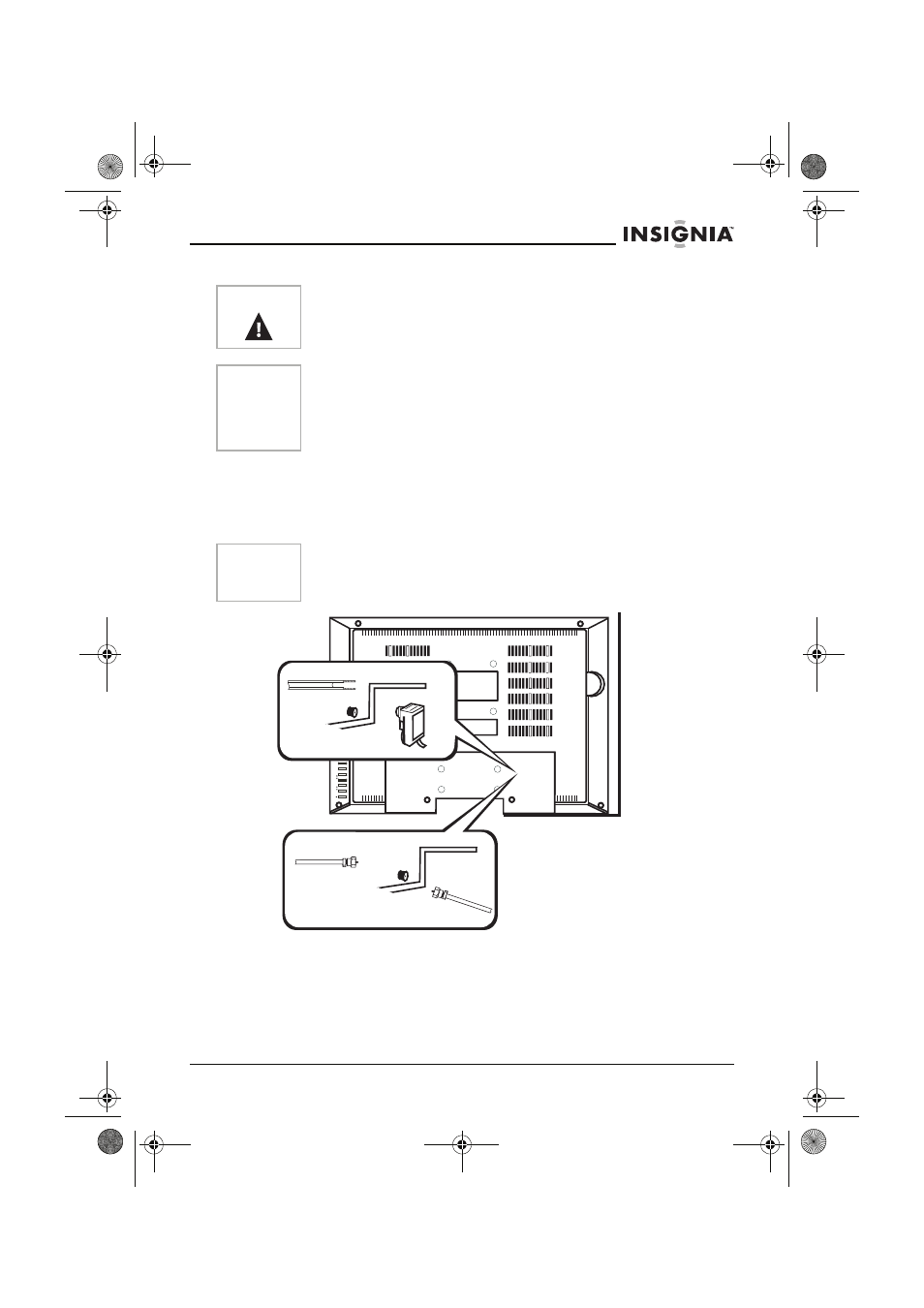

Connecting to a wall jack

Connect the TV to the wall-mounted antenna jack with a 75 ohm RF
cable (commercially available).

Connecting to a wired antenna cable

Using a cable or satellite box

If your cable service supplies you with a converter box, or if you use a
satellite system, you can connect it to your TV with a 75 ohm RF cable
(commercially available).
Channel selection must be made with the converter box or satellite box,
so channels cannot be changed using the remote control of this TV.

Caution

For your safety and to avoid damage to the TV, unplug the antenna
cable from the ANT jack before moving it.

Note

• We recommend 75 ohm coaxial cable to eliminate

interference and double image due to the unmatched input
impedance of the antenna.

• The antenna/cable and power line should not be bundled

together.

Note

Before plugging the antenna into the ANT jack on the TV, make
sure that the pin is not bent. If it is bent, straighten the pin, then
plug the cable into the ANT jack of the TV.

INPUT

VOL

From outside antenna

CATV connection
