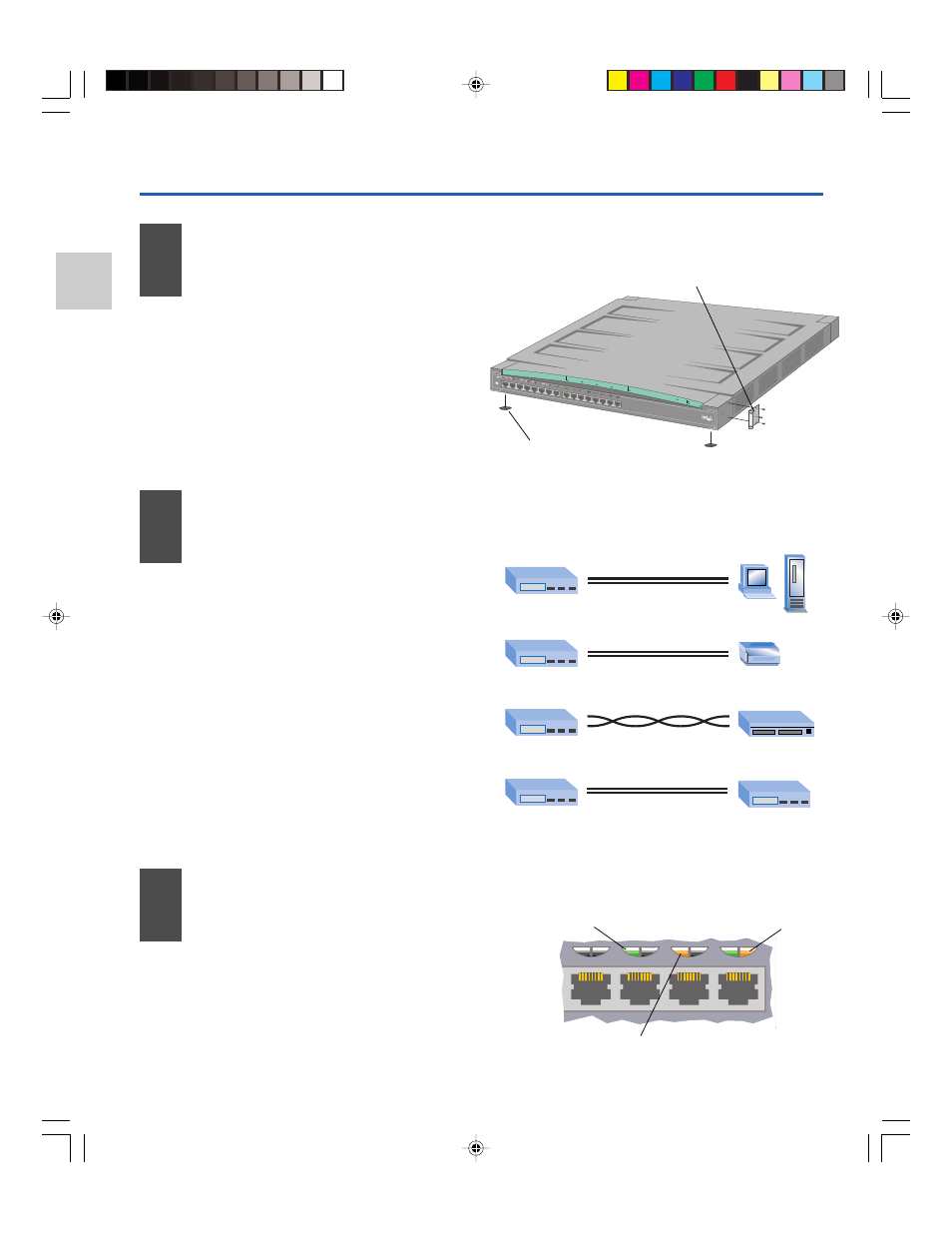

Quick Start
Install the Hub
Check the
Connections
• Check the port LEDs to confirm the link
status.
• A solid green LED (on the left) indicates a
valid link.
Left (Green/Orange)
Solid Green = Link
Blinking Green = Activity
Right (Orange)
Off = 100Mbps
Solid = 10Mbps
Class II
MDI/ MDI-X 1
9
2
10
3
11
4
12
5
13
6
14
7
15
8
16 Left
Right
Link = Solid G reen Activity = Blin king Green Partitioned = Blinking Ora nge 10Mbps = S olid Orange 100Mbps = O ff
Intel ® Express 330T Stac kable Hub Module A
Status
Speed Link\Activity
Collisions 10Mbps 100Mbps Status
Managed
Module B
Module P resent
Duplex
Rack: Use the three small
screws to attach the
brackets to the hub.
Shelf: Peel off the protective
backing and attach the rubber feet
to the hub.
3
1
English
• Remove the hub and parts from the box.
• Attach the enclosed brackets if you plan to
mount the hub in a rack.
• Install the Intel ® Express 330T Stackable Hub
in a rack or on a shelf.
• Plug in the power cord.
Connect
the Devices
• All ports automatically detect the speed of the
device connected to them.
• Connect PCs and print servers to the hub with
straight-through cables.
• Use a crossover cable to connect a hub to
another hub or switch.
• Use a straight-through cable to connect to
another hub or switch when port 1 is set to
MDI.
• Use only CAT 5 UTP to connect 100Mbps
devices. To connect 10Mbps devices, use CAT
3, 4, or 5 UTP.
10/100
10/100
10/100
10/100 10/100
Hub Hub or Switch
Hub Print Server
Hub PC/Server
straight-through
From To
Hub Hub or Switch
straight-through
when port 1 set to MDI
crossover
when port 1 set to MDI-X
Blinking Orange = Partition
Solid Orange = User Disabled
