ASSEMBLY INSTRUCTION


Tools Required to Assemble the Machine: Two Adjustable Wrenches and Allen Wrenches
NOTE: It is strongly recommended this machine be assembled by two or more people to
avoid possible injury.

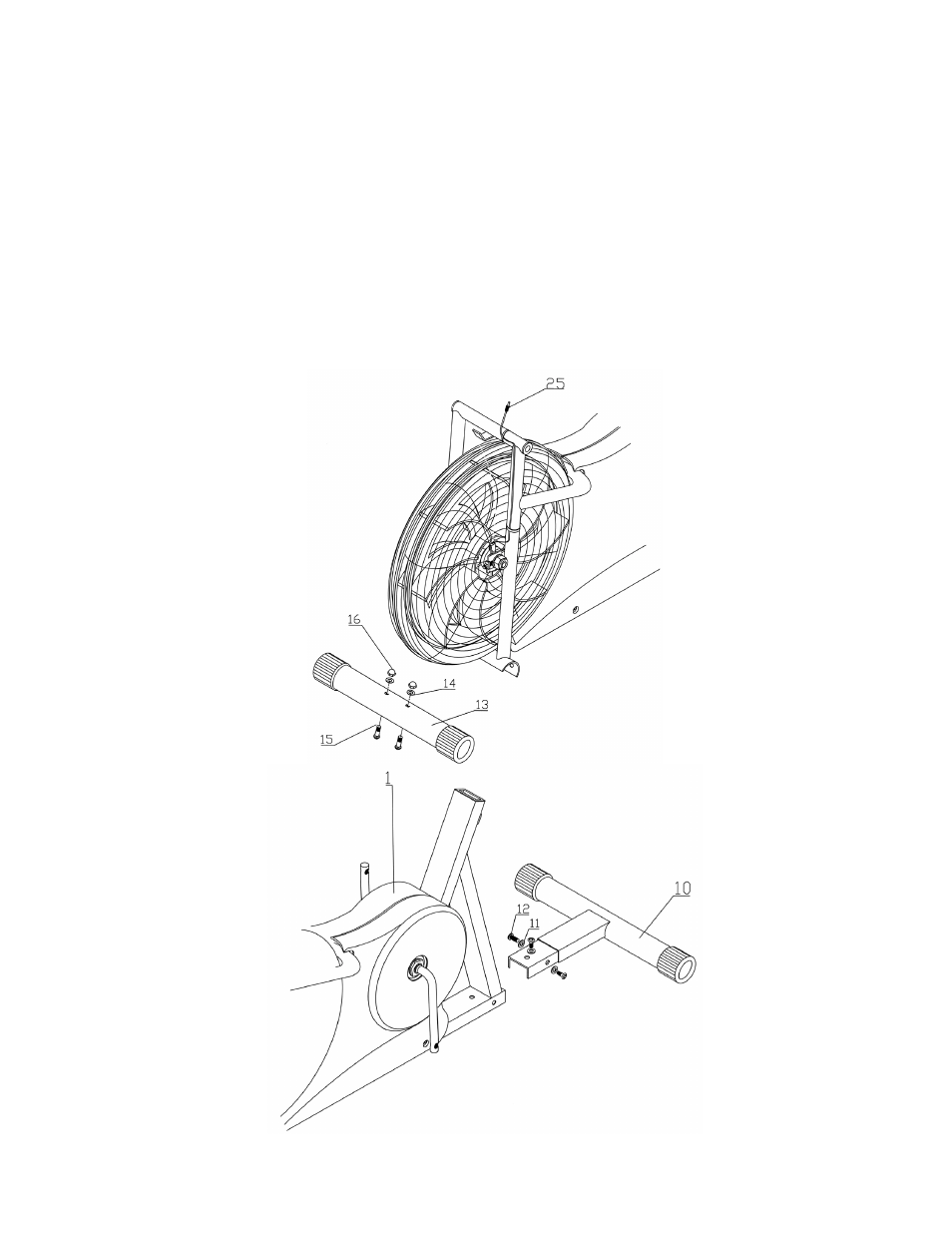

STEP 1 (See Diagram1)
A.) Attach the Front Stabilizer (#13) to the Main Frame (#1). Secure it with two M8 x 2 ½” Carriage

Bolts (#15),

∅

5/8” Bent Washers (#14), and M8 Acorn Nuts (#16).

B.) Insert Rear Stabilizer (#10) into the rear bottom of Main Frame (#1). Secure it with three M8 x

5/8” Allen Bolts (#12) and

∅

5/8” Washers (#11).

Diagram 1

4
