29
Service : to use these features, highlight them and press Select.
Factory Reset : restores all settings (except Lamp Hours) to their default
after displaying a confirmation dialog box.
Test Pattern : displays a test pattern when the Blank button on the remote is
pressed. To select the patterns, use the up/down arrows on the remote or
keypad.
Blue Only : turns off the Red and Green portions of the input, allowing you
to properly adjust the color balance with a SMPTE color bar pattern.
Color Wheel Index : makes the hue of various gray levels consistent.
ADC Calibration : allows adjustment of the calibrated ADC values so that
color accuracy can be optimized. Adjust the slidebars for each value and
note the change in the appropriate color. Use a component input when
adjusting the Component controls.
Service Code : only used by authorized service personnel.
Maintenance
Cleaning the lens
1 Apply a non-abrasive camera lens cleaner to a soft, dry cloth.
Avoid using an excessive amount of cleaner, and don’t apply the
cleaner directly to the lens. Abrasive cleaners, solvents or other harsh
chemicals might scratch the lens.
2 Lightly wipe the cleaning cloth over the lens in a circular motion. If you
don’t intend to use the projector immediately, replace the lens cap.

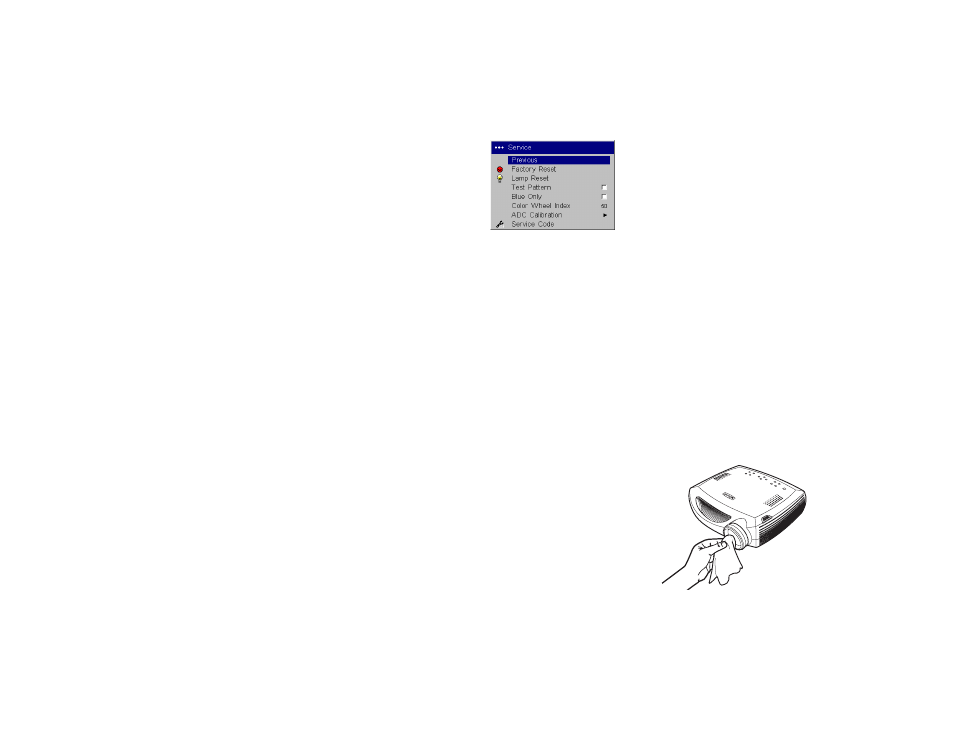

Service menu
clean the lens
with a soft dry cloth
and non-abrasive
cleaner
