ASSEMBLY INSTRUCTIONS

Tools required for assembling the machine: adjustable wrench
NOTE: It is strongly recommended this device be assembled by two or more
people to avoid possible injury.

STEP 1 (See Exploded Diagram)
A.) Place a dumbbell rack (#2) in between the two upright beams (#1). Secure each end

with two M10 x 3 ½” carriage bolts (#6), Ø ¾” washers (#5), and M10 aircraft nuts
(#7). Do not tighten the nuts and bolts yet.

B.) Repeat procedure A to connect the other two dumbbell racks (#2) to the upright

beams.

C.) Securely tighten all nuts and bolts.
D.) Set the rack on a flat surface. If the floor is uneven, adjust bolt (#8) on the end caps

to level the rack.

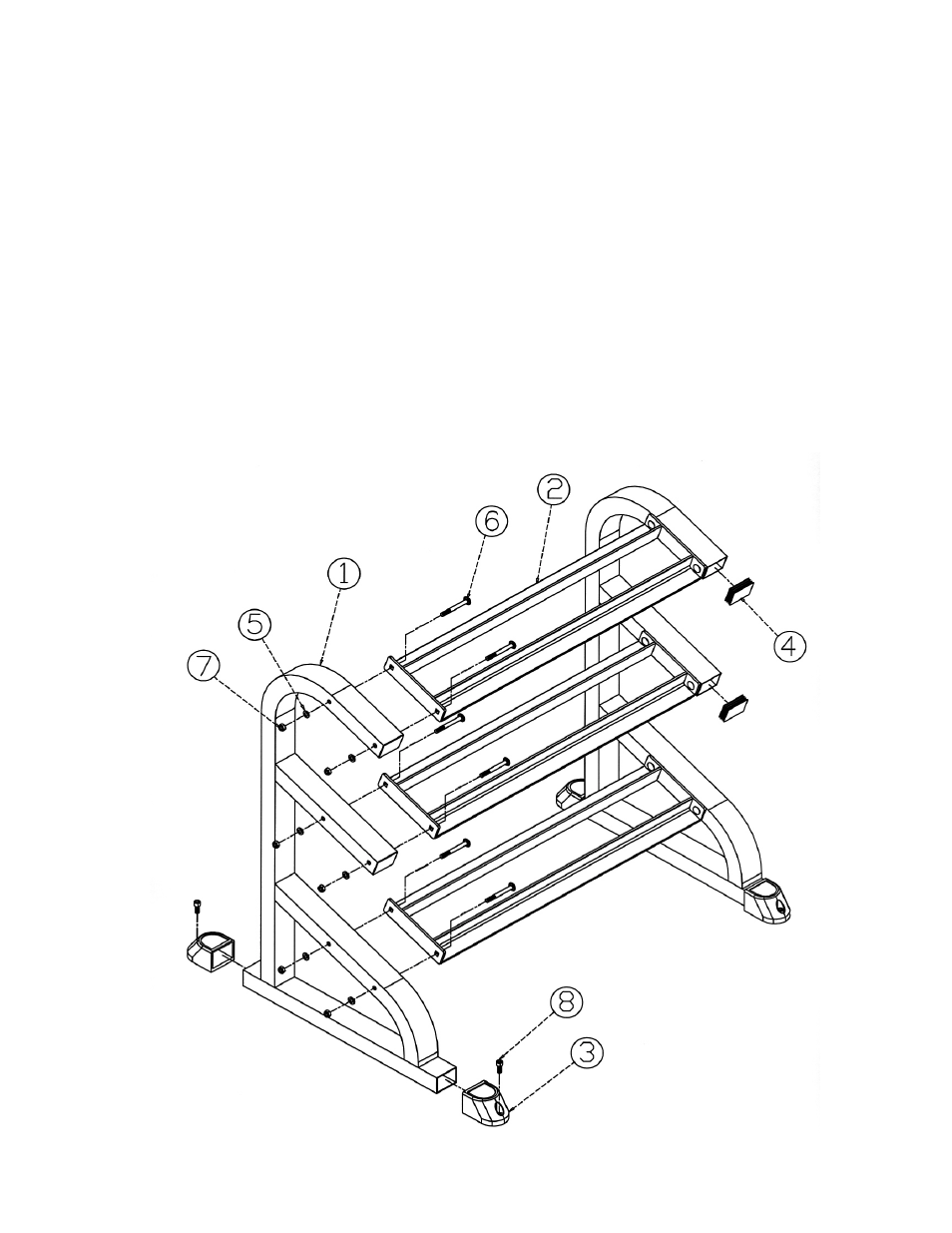

Exploded Diagram
