__ 2.
Remove the blank filler cards from the next available positions by doing the
following:
__ a.
Push outward on the latches
A that are located at each end of the
filler card, Figure 5 on page 7.
__ b.
Remove the filler card from the card socket and discard it.
__ 3.
Find the package that contains the new memory cards.
__ 4.
Attention:
Memory cards are fragile. Handle with care.
Remove a memory card, one at a time, from the static protective package.
__ 5.
Refer to Figure 5 on page 7 to install the memory card by doing the
following:
__ a.
Look carefully at the notches on the bottom of the memory card. The
distance between the notches and the end of the memory card is
slightly different.
__ b.
Align the card as shown in Figure 5 on page 7.
__ c.
Match the keyed notches and push down on the card until the latches
close.

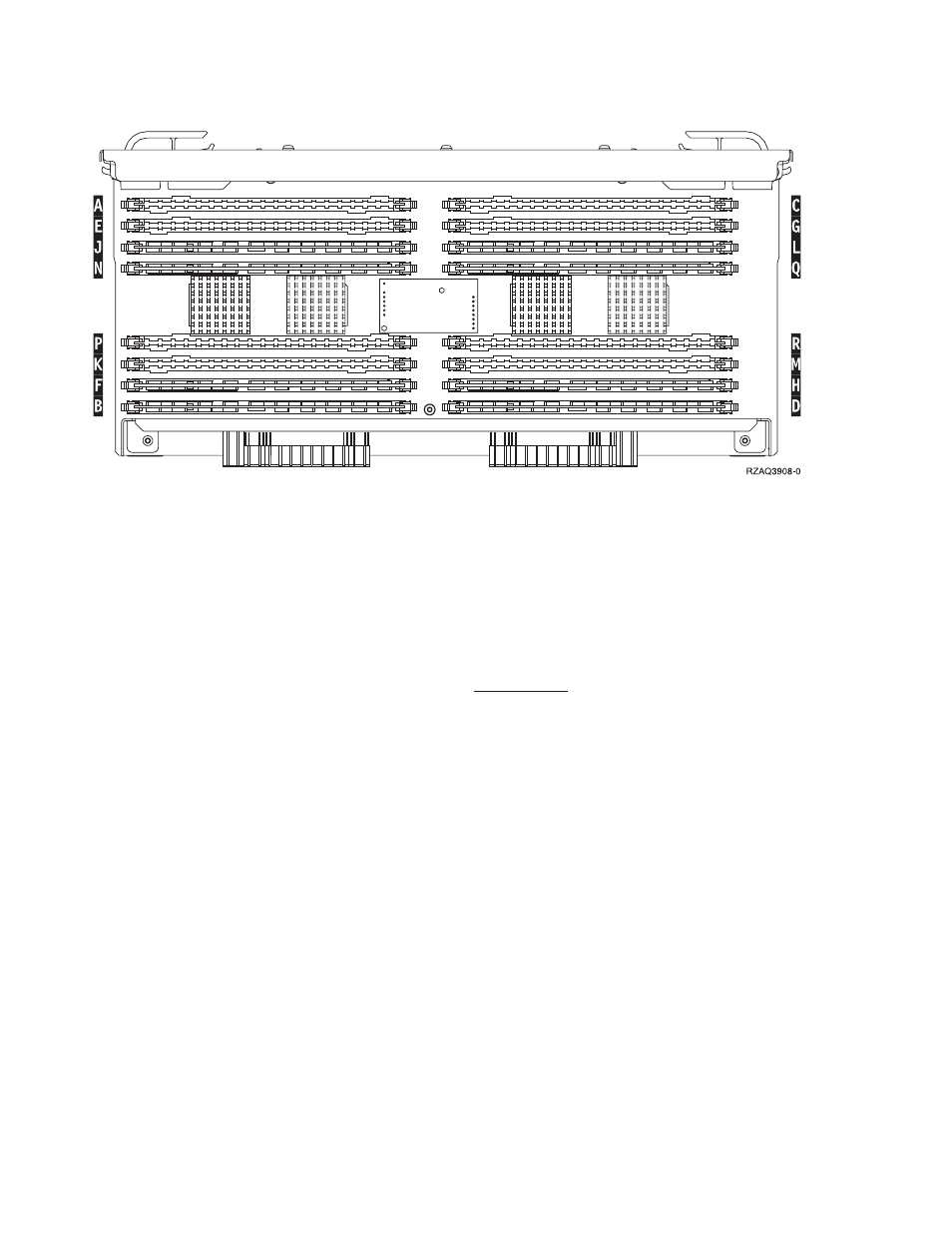

Figure 4. Memory Locations on Card Assembly
6
30xx Memory Card Installation V5R1
