Assembly instruction, Exploded diagram – Impex DBR-56 User Manual
Page 6
ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: One Adjustable Wrench and Allen Wrench
NOTE: It is strongly recommended this machine be assembled by two or more
people to avoid possible injury.
STEP 1 (See Diagram Below)
A.) Connect one Horizontal Rack (#2) to the two Uprights (#1). Secure each end with two
M8 x 5/8” Allen Bolts (#3), four
∅
5/8” Washers (#4), and two M8 Aircraft Nuts (#5). Do
NOT tighten all the Nuts and Bolts yet.
B.) Repeat the above procedure A to install the other Horizontal Rack.
C.) Securely tighten all Nuts and Bolts.

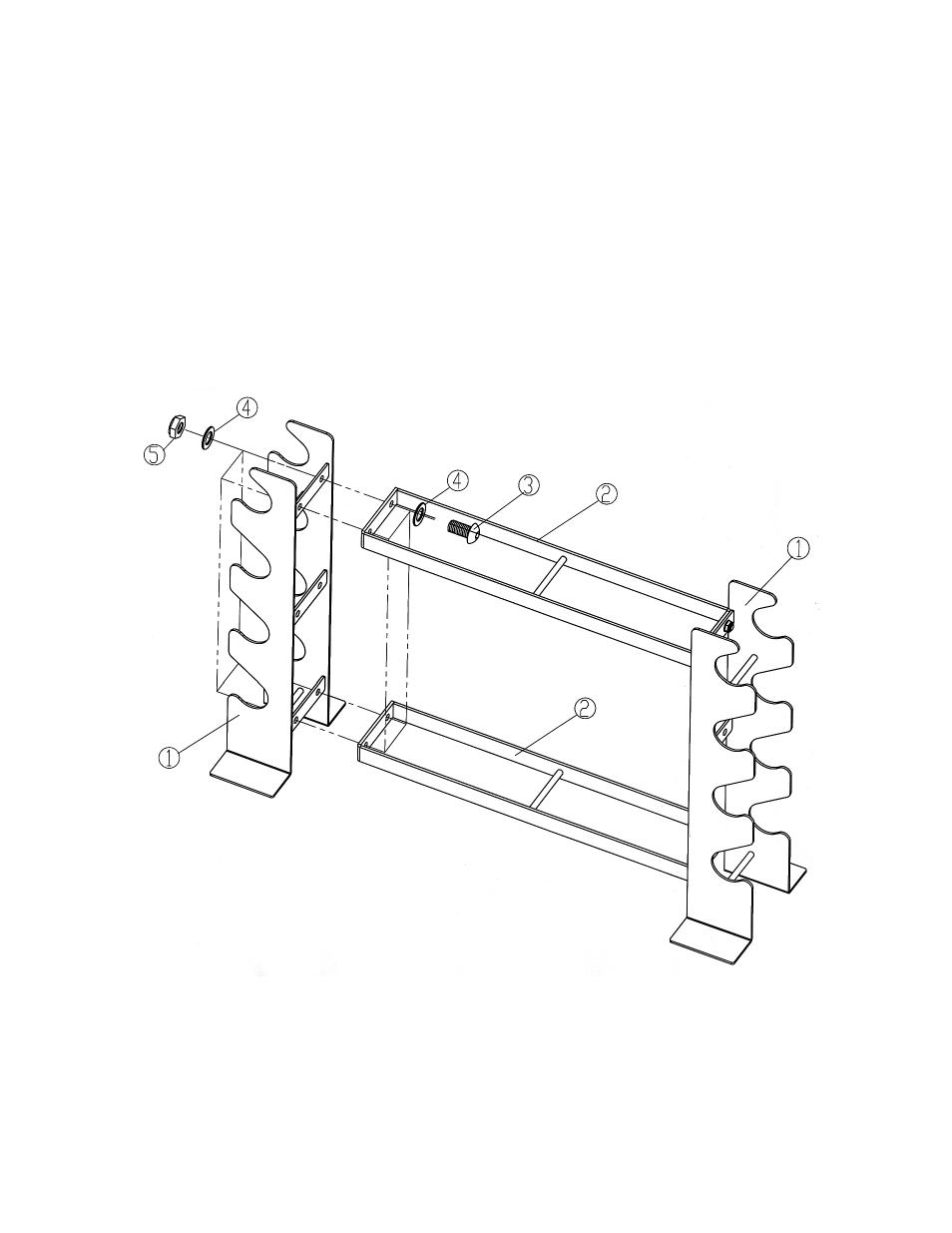

EXPLODED DIAGRAM
5
