ASSEMBLY INSTRUCTION
Tools Required for Assembling the Machine: One Adjustable Wrench and Allen
Wrench.
NOTE: It is strongly recommended that two or more people assemble this
machine to avoid possible injury.
STEP 1 (See Diagram 1)
A.) Do not tighten all Nuts and Bolts until instructed to do so.
B.) Attach the Stabilizer (#3) to Left & Right Upright Beam (#1) & (#2). Secure each
end of the Stabilizer with two M10 x 3 ¾” Allen Bolt (#7), one 3 1/8” x 1 ¾” Bracket
(#5), four Ø ¾” Washers (#9), and two M10 Aircraft Nuts (#10).
C.) Attach one end of a Dumbbell Rack (#4) to the upper bracket on Left Upright Beam.
Align the holes. Secure it with two M10 x ¾” Allen Bolts (#8), four Ø ¾” Washers
(#9), and two M10 Aircraft Nuts (#10). Repeat the same procedure to install the
other end to the upper bracket on Right Upright Beam.
D.) Attach one end of another Dumbbell Rack (#4) to the lower bracket on Left Upright
Beam. Align the holes. Secure it with two M10 x ¾” Allen Bolts (#8), four Ø ¾”
Washers (#9), and two M10 Aircraft Nuts (#10). Repeat the same procedure to
install the other end to the lower bracket on Right Upright Beam.
E.) Securely tighten all Nuts and Bolts installed.

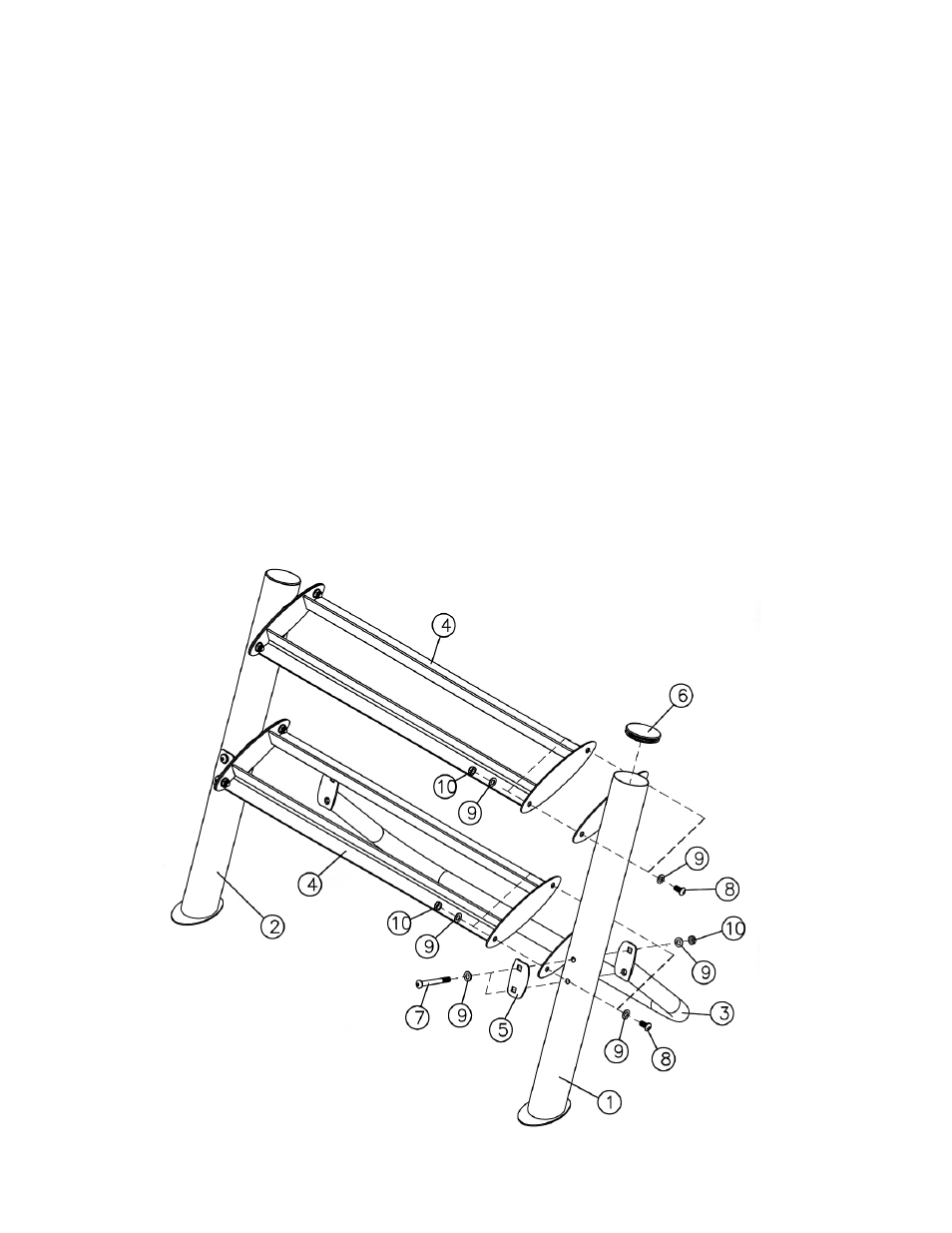

EXPLODED DIAGRAM
