Battery Installation and Removal

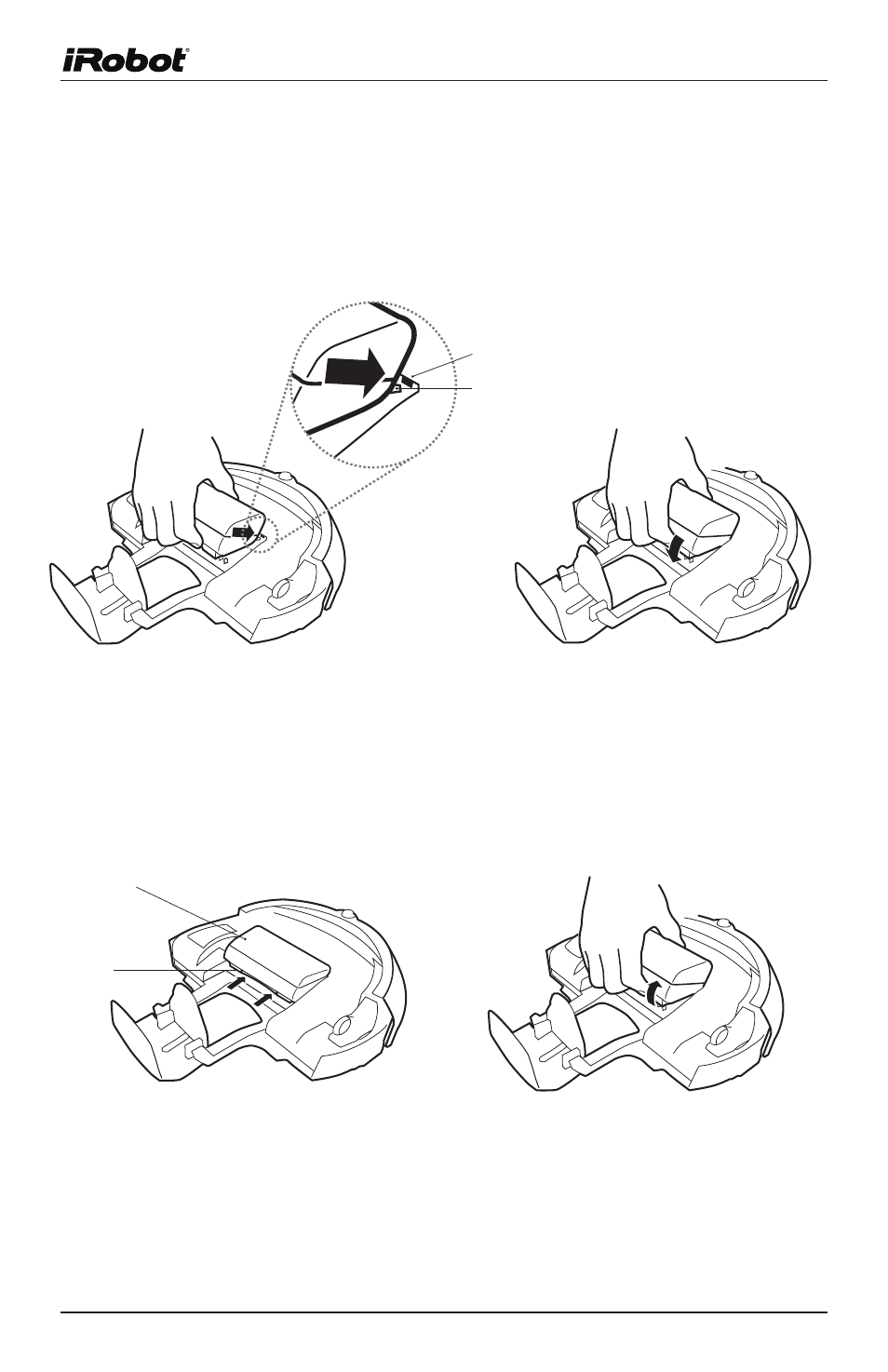

Installing Battery in scooba
Rotate battery into its slot, making sure the yellow battery tabs fit inside the
guide holes. Listen for a click as the battery snaps into place.
Insert yellow tabs into guide holes Rotate battery down until it clicks
Battery
Release
Tab
removing Battery from scooba
Grip the battery, making sure to push the release tab, then rotate up.
Push release tab Rotate battery up
Yellow
Battery Tab
Guide Hole
