5
Insignia NS-BDLIVE01 Blu-ray Disc Player
www.insigniaproducts.com

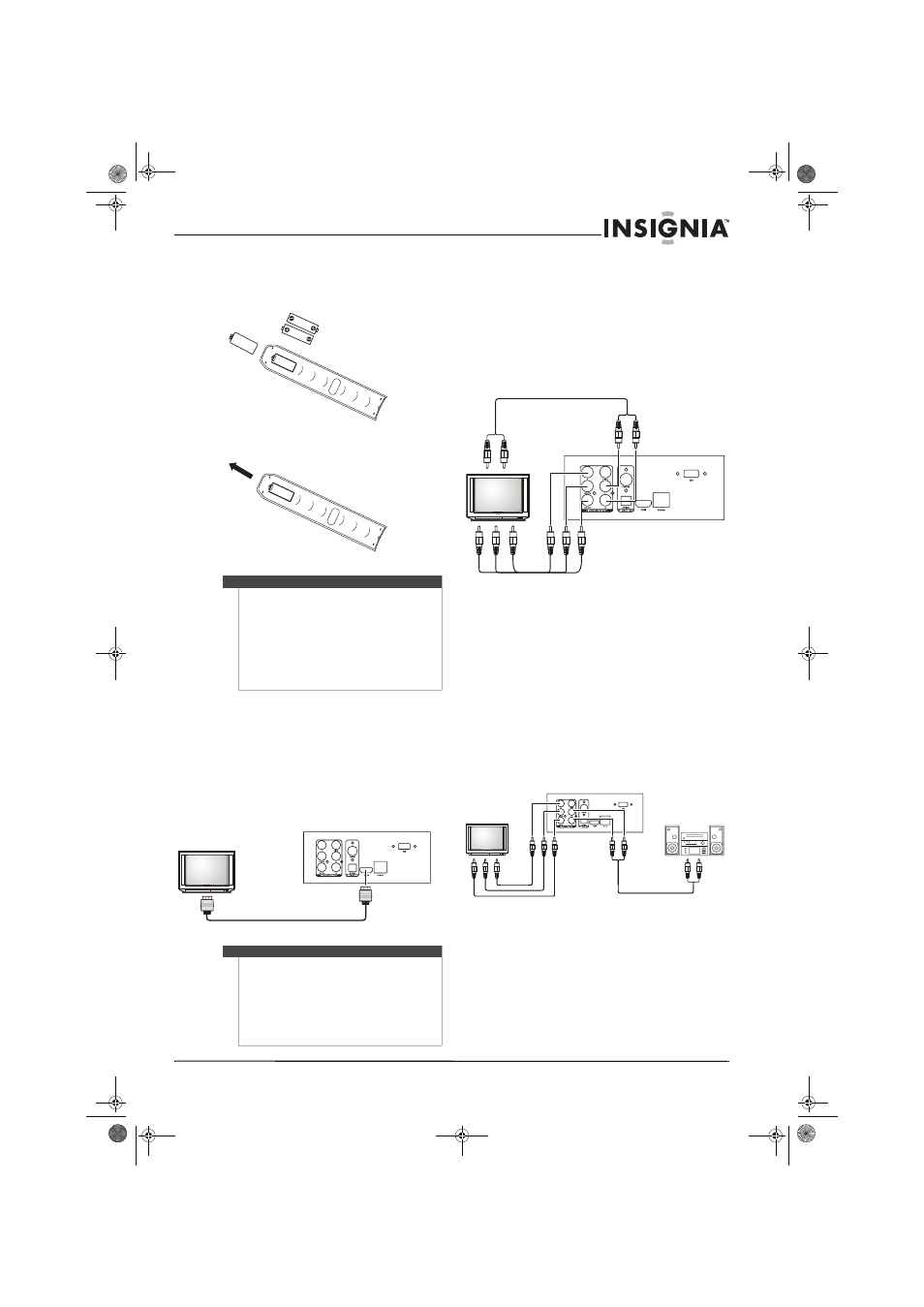

2 Insert two AAA batteries into the battery
compartment. Make sure that the + and –
symbols on the batteries match the + and –
symbols in the battery compartment.
3 Replace the battery compartment cover.
Connecting an HDMI TV
HDMI provides the best video and audio. An HDMI
cable carries both video and audio. You do not need
to make an audio connection.
To connect an HDMI device:
• Connect an HDMI cable (not included) to the
HDMI jack on the back of your player, then
connect the other end of the cable to the HDMI
IN jack on the TV.
Connecting a component TV (no sound
system)
A component video connection is better than a
standard AV connection.
To connect a component TV (no sound system):
1 Connect a component video cable (not
provided) to the Y, CB/PB, CR/PR VIDEO OUT
jacks on the back of your player, then connect
the other end of the cable to the corresponding
jacks on the component TV.
2 Connect a standard audio cable (not provided)
to the L and R AUDIO OUT jacks on the back of
your player, then connect the other end of the
cable to the corresponding AUDIO IN jacks on
the component TV.
Connecting a component TV and sound
system using standard audio
To connect a component TV and sound system
using standard audio:
1 Connect a component video cable (not
provided) to the Y, CB/PB, CR/PR VIDEO OUT
jacks on the back of your player, then connect
the other end of the cable to the corresponding
jacks on the component TV.
2 Connect a standard audio cable (not provided)
to the L and R AUDIO OUT jacks on the back of
your TV, then connect the other end of the cable
to the corresponding AUDIO IN jacks on the
sound system.
Notes
• Make sure that you insert the batteries correctly.
• Do not heat, open, or short-circuit batteries.
• Do not throw batteries into a fire.
• Do not mix different types of batteries or mix
old and new batteries.
• Do not try to recharge non-rechargable
batteries.
• If the remote control does not function correctly
or if the operating range becomes reduced,
replace the batteries.
Note
The HDMI jack on your player is the only jack capable
of outputting 1080i/1080p video and the highest
definition audio codecs.
If you want to connect a sound system using HDMI,
connect the HDMI jack on your player to the HDMI
IN jack on the sound system. Then use another HDMI
cable to connect the HDMI OUT jack on the sound
system to the HDMI IN jack on the HDMI video
device.
Back of player
HDMI cable
Back of player
Standard audio cable
Component video cable
Component cable Standard audio cable
