7
NS-FTV27 27-inch Flat Stereo Color TV
www.insignia-products.com
Selecting the video input source
Press TV/AV to view a signal from another
device connected to your television, such as a
VCR or DVD player. You can select ANT,
VIDEO1, VIDEO2 (on the front panel), or
COMPONENT depending on which input jacks
you used to connect your devices.
Pressing TV/AV on the remote control displays
the current signal source (press TV/AV again or
0-3 to change).

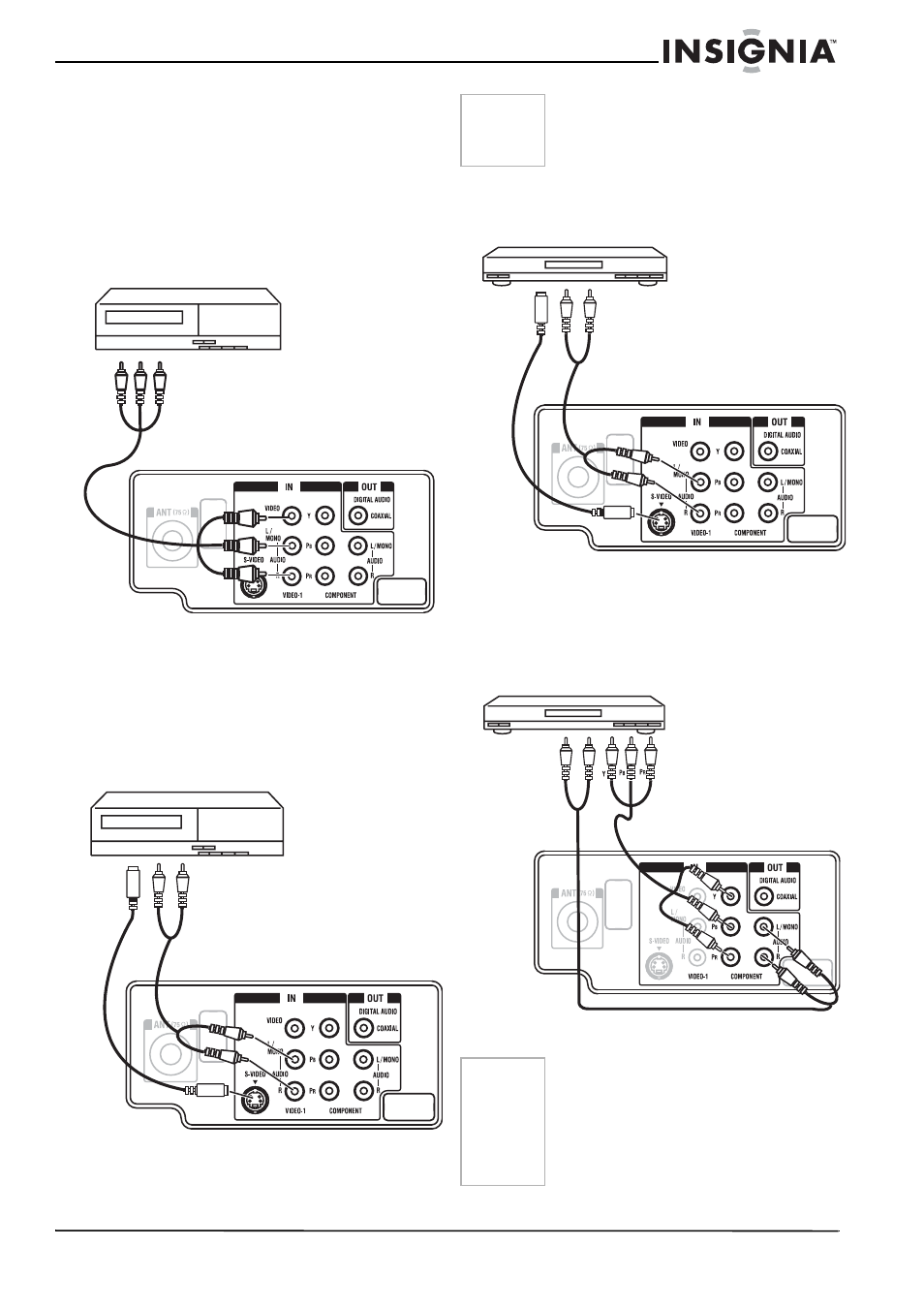

Connecting the television to a VCR
Connecting the television to a VCR with an S-Video
cord
If you connect a VCR with a S-VIDEO cord to
the S-VIDEO IN jack on the rear of the television,
you must also connect the audio cords to the
AUDIO IN jacks on the rear of the television. The
S-VIDEO cord only carries the video signal. The
audio signal is separate.
Connecting the television to a DVD player or
satellite receiver
If your DVD player or satellite receiver has an
S-Video out jack, connect cords as shown.
Connecting the television to a DVD player with
component video
If your DVD player has component video out
jacks, connect your television to a DVD player
using a component video cord. It can greatly
enhance picture quality and performance.
To Audio/
Video OUT
To Audio/
Video IN
Audio/
Video
cord (not
supplied)
To Audio
OUT
Audio cord
(not supplied)
S-Video
cord (not
supplied)
To S-Video
OUT
To Audio
IN
To S-Video
IN
Rear of the TV
Note When the S-video cord and the video cord
are connected to each jack at the same time,
the S-video cord takes precedence over the
video cord.
Note This television is only capable of displaying
480i interlaced signal when connected to a
digital device with component video outputs.
If you input a 480p, 720p, or 1080i signal to
the component video inputs, COMPONENT
is displayed on a black screen. If
COMPONENT appears, set the digital
device's component output to 480i.
To Audio
OUT
Audio cord
(not supplied)
S-Video
cord (not
supplied)
To S-Video
OUT
To Audio
IN
To S-Video IN
To Component
OUT
Video cord
(not supplied)
Audio
cord (not
supplied)
To Audio
OUT
To COMPONENT
IN
